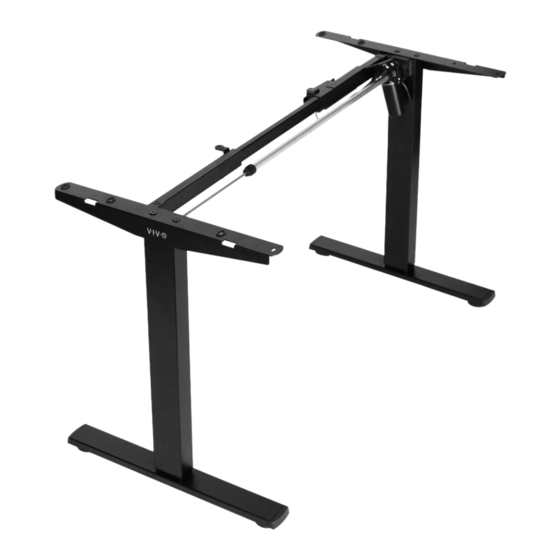

Vivo DESK-V100EB Instruction Manual
Black electric single motor desk frame
Hide thumbs
Also See for DESK-V100EB:
- Assembly manual (17 pages) ,
- Instruction manual (16 pages) ,
- Instruction manual (9 pages)
Table of Contents
Advertisement
Quick Links
Black Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V100EB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v100eb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V100EB
Summary of Contents for Vivo DESK-V100EB
- Page 1 Black Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V100EB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v100eb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble Left Crossbar (A) to Leg (D) and Right Crossbar (B) to Motorized Leg (E) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). STEP 2 Secure Side Brackets (F) to Leg (D) and Motorized Leg (E) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).
- Page 4 STEP 3 Assemble Feet (G) to Leg (D) and Motorized Leg (E) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). STEP 4 Insert Center Crossbar (C) into Left Crossbar (A) and Right Crossbar (B). Secure Center Crossbar (C) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).
- Page 5 STEP 5 Loosen the knob on Sync Rod (H) and extend the hex shaft. Insert the hex shaft into Leg (D), making sure the metal retaining ring makes contact with Leg (D). While holding the hex shaft with one hand, extend Sync Rod (H) onto the spline shaft of Motorized Leg (E).
- Page 6 STEP 7 Secure the frame assembly and Control Panel (I) to the desktop using M5x16mm Screws (S-B) and a Phillips screwdriver.
- Page 7 STEP 8 Plug the cable from Motorized Leg (E) and AC Adapter (J) into Controller (I). Organize cables using Cable Clips (L). Plug AC Adapter (J) into an AC wall outlet. Please refer to the Controller User Guide for operating instructions. CAUTION! Do not exceed desk Keep area of vertical...
- Page 8 Love your new VIVO setup and want to share? LAST UPDATED: 08/22/2022 Tag us in your photo! @vivo_us REV1V Open Monday - Friday 7:00am - 7:00pm CST, our dedicated support team can offer immediate assistance with rapid response times. If any parts are received damaged or defective, please contact us.
