Vivo DESK-V100EBY Instruction Manual

Vivo DESK-V100EBY Instruction Manual

Black electric single motor desk frame
Hide thumbs Also See for DESK-V100EBY:
Table of Contents

Advertisement

Quick Links

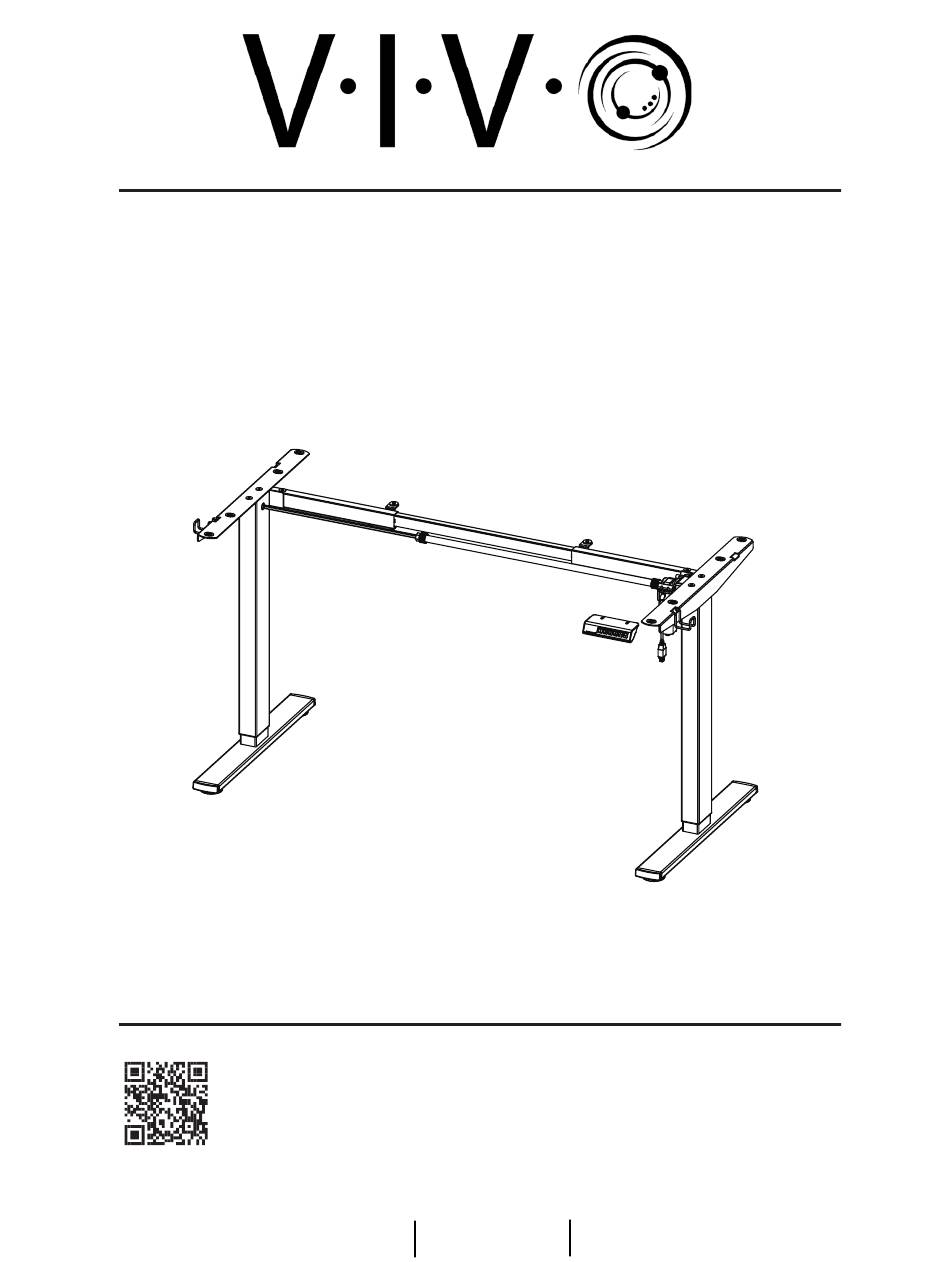

Black Electric Single Motor Desk Frame
SKU: DESK-V100EBY
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-v100eby
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V100EBY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-V100EBY

Summary of Contents for Vivo DESK-V100EBY

  • Page 1 Black Electric Single Motor Desk Frame SKU: DESK-V100EBY Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-v100eby www.vivo-us.com help@vivo-us.com 309-278-5303...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...

  • Page 3: Electrical Warning

    Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

  • Page 4: Package Contents

    TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Drill PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x2) D (x2) Motorized Foot...

  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1: Mount Crossbar Loosen screws on Crossbar (F) using 5mm Allen Wrench (T-A), extend, and then re-tighten screws. Mount Crossbar (F) to Leg (A) and Motorized Leg (B) using M8x50mm Screws (S-A) and 5mm Allen Wrench (T-A). Crossbar Motorized Leg M8x50mm Screw...
  • Page 6 STEP 2: Install Feet Assemble Foot (E) to Leg (B) and Motorized Leg (C) using M6x35mm Screws (S-B) and 5mm Allen Wrench (T-A). 5mm Allen Wrench M6x35mm Screw Foot Motorized Leg...
  • Page 7 STEP 3: Attach Side Brackets Install Side Brackets (D) on Leg (A) and Motorized Leg (B) using M8x16mm Screw (S-C) and 5mm Allen Wrench (T-A). Side Bracket M8x16mm Screw 5mm Allen Wrench...
  • Page 8 STEP 4: Adjust Desk Frame Width Use 5mm Allen Wrench (T-A) to losen set screws on Crossbar (F) and adjust to fit width of desktop. Re-tighten to secure. 5mm Allen Wrench...
  • Page 9 STEP 5: Attach Frame to Desktop Secure frame assembly to the desktop with ST4.2x15mm Screws (S-D) and a Phillips screwdriver. ST4.2x15mm Screw...
  • Page 10 STEP 6: Install Sync Rod Loosen the knobs on the Sync Rod (E) and extend the hex shaft. Insert hex shaft into the Leg (A), making sure the metal retaining ring makes contact with the Leg. While holding the hex shaft with one hand, extend Sync Rod onto the spline shaft of Motorized Leg (B).
  • Page 11 STEP 7: Attach Controller Attach Controller (G) to desktop using ST4.2x15mm Screws (S-D) and a Phillips Screwdriver. ST4.2x15mm Screw Controller...
  • Page 12 STEP 8: Connect Cords Connect cord from Motorized Leg (B) directly to Controller (G), then connect Power Cord (H) to cord from Controller. Power Cord...
  • Page 13 STEP 9: Attach Frame to Desktop Use Cable Clips (J) to secure cords to desktop, as shown below. Then connect Hook (I) to Side Bracket (D). Cable Clip Hook...
  • Page 14 STEP 10: Power Desk Plus Power Cord (H) into outlet and press the down arrow on Controller (G) to perform reset process.
  • Page 15 CONTROLLER Down Display Memory Arrow Arrow Panel Settings OPERATING INSTRUCTIONS: Press the up arrow, the desk will automatically raise to the highest position. Pressing the down arrow will automatically lower the desk to the lowest position. Memory Mode To store a certain height in the controller’s memory, press the 1 button for more than three seconds. "S-1" will be displayed, indicating that the current height has been saved to the 1 button sucessfully.

  • Page 16: Troubleshooting

    Setting the Minimum/Maximum Height Press the 1 and 2 buttons at the same time for more than three seconds to set the current height as the maximum. "Hon" will be displayed. To cancel the maximum height, repeat the process. "HoF" will be displayed.
  • Page 18 CHECK OUT OTHER GREAT PRODUCTS FROM EXPLORE MORE AT VIVO-US.COM We offer a wide array of home & office products to fit your needs. From height adjustable desks to monitor mounts to keyboard trays and more! SPEAKER MOUNTS CABLE MONITOR MANAGEMENT &...

  • Page 19: Need Assistance

    WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve you, our customer, to the best of our abilitiy.
  • Page 20 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 07/13/2022 REV1.1LF...
