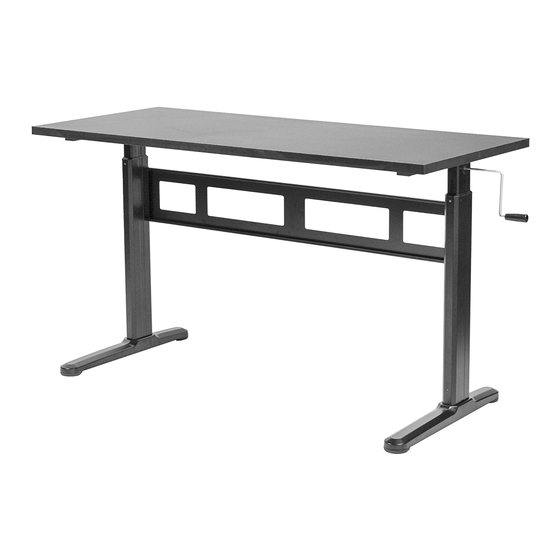

Crank Height Adjustable 55" Desk - Black
Instruction Manual
SKU: DESK-V100M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v100m
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V100M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-V100M

  • Page 1 Crank Height Adjustable 55” Desk - Black Instruction Manual SKU: DESK-V100M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v100m help@vivo-us.com www.vivo-us.com 309-278-5303...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3 ASSEMBLY STEPS STEP 1 Place desk board (A) upside down on a flat surface. Assemble one lifting column (C) to the desk board using x3 Phillips head screws (S-B) and tighten with a screwdriver. STEP 2 Insert the sync rod (B) into the hex socket on the lifting column. Place the second column (C) onto the desk board and insert the other end of the sync rod into the column.
  • Page 4 STEP 3 Secure the second lifting column to the desk board using x3 Phillips head screws (S-B) and tighten with a screwdriver. Phillips Screwdriver...
  • Page 5 STEP 4 Assemble the crossbar (D) to the back of the lifting columns using hex head screws (S-A) and tighten with the Allen wrench (S-C).
  • Page 6 STEP 5 Insert the crank (E) into the hex socket of the lifting column. Figure 1: Turn the crank to raise or lower the desk. Figure 2: Store the crank in the front of the desk support bracket on the column as shown. Figure 3: Turn the foot pads to adjust the desk level.
  • Page 7 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
  • Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
