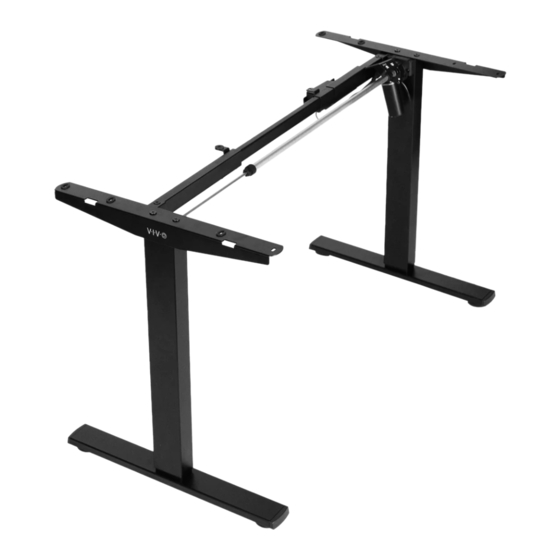

Black Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V100EB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v100eb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V100EB and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo DESK-V100EB

Summary of Contents for Vivo DESK-V100EB

  • Page 1 Black Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V100EB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v100eb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.

  • Page 3: Tools Needed

    TOOLS NEEDED 1 1 2 2 Phillips Screwdriver 1 1 1 1 1 1 4 4 Drill 1 1 3 3 1 1 0 0 ASSEMBLY STEPS STEP 1 Place the feet (1) on the legs (2, 3) as shown. Insert and tighten M6x16 bolts (A) using the 5mm Allen wrench (C).
  • Page 4 STEP 2 Loosen the four set screws on the telescopic crossbar (4) using the 4mm Allen wrench and adjust the crossbar length to suit the desktop. Attach the telescopic crossbar to the legs as shown using M8x50mm bolts (B), and tighten with the 5mm Allen wrench. The set screws will remain loosened until later in the assembly.
  • Page 5 STEP 4 Attach the side brackets (6) to both ends of the frame with top portions facing out using four M6x16mm bolts (A). For small desktops down to 31.5" in width, attach brackets so top portions are instead facing in towards the center. Tighten with the 5mm Allen wrench (C). 5x 5 STEP 5 Hang the adapter holder (11) over the telescopic crossbar, then place the frame upside down on the...
  • Page 6 STEP 6 Tighten the set screws on the telescopic crossbar (4) using the 4mm Allen wrench (C), and the nut on the sync rod (5) using the wrench (G). Assemble baffles (8) to the telescopic crossbar using M4x6mm bolts (E), and tighten with the 2.5mm Allen wrench (D). Baffles may be used to cover the sync rod, or they may be used in the opposite direction to support cables.

  • Page 7: Troubleshooting

    CONTROLLER Press and hold the UP or DOWN buttons to operate the desk. TROUBLESHOOTING DESCRIPTION RESOLUTION No response while pressing button Check to make sure all cables are fully connected. The desktop cannot be lifted Make sure the desktop and other items do not exceed the weight limit (154lbs).
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
