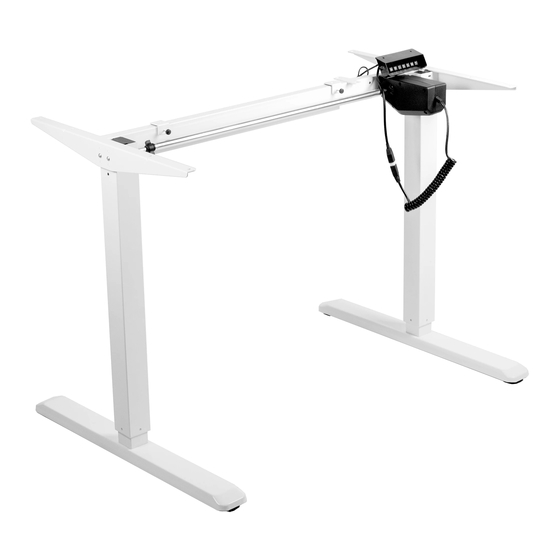

White Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V101EW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v101ew
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V101EW
Summary of Contents for Vivo DESK-V101EW
- Page 1 White Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V101EW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v101ew GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (79.8 kg) Drill ASSEMBLY STEPS STEP 1 Loosen the two set screws on the telescopic crossbar (A) using the Allen key (S-G). Adjust the crossbar length to suit the desktop.
- Page 4 STEP 3 Attach the side brackets (E) to both ends of the frame using four M6x12mm bolts (S-A). Tighten with the Allen key. STEP 4 Place frame upside down on desktop and drill pilot holes for screws. Use a 3/32” or 3mm bit, and drill holes to a depth of 3/8”...
- Page 5 STEP 6 Position the frame upright. Loosen the knobs on the sync rod (B) and extend the hex shaft. Insert hex shaft into the leg (I), then while holding the hex shaft with one hand, extend sync rod onto the shaft of the motorized leg.
- Page 6 STEP 8 Connect the AC adapter (F) and motorized leg to the controller (K). Connect the power cable (J) to the AC adapter. STEP 9 Remove the protective film from the adhesive rubber pads (S-F). Position the rubber pads on the side brackets and telescopic crossbar as shown.
- Page 7 STEP 11 Attach the controller to the underside of the desktop using 3/4"screws (S-C) as shown. Once controller is installed, cable clips (S-E) can be attached to the desk for cable management. Refer to Controller User Guide for operational instructions. STEP 12 If necessary, adjust foot pads to level desk.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S AVG. RESOLUTION TIME 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
