Electric Single Motor
Desk Frame
DESK-V100EB Series
Assembly Manual
Individual Product SKUs
DESK-V100EB
DESK-V100EW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V100EB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-V100EB Series

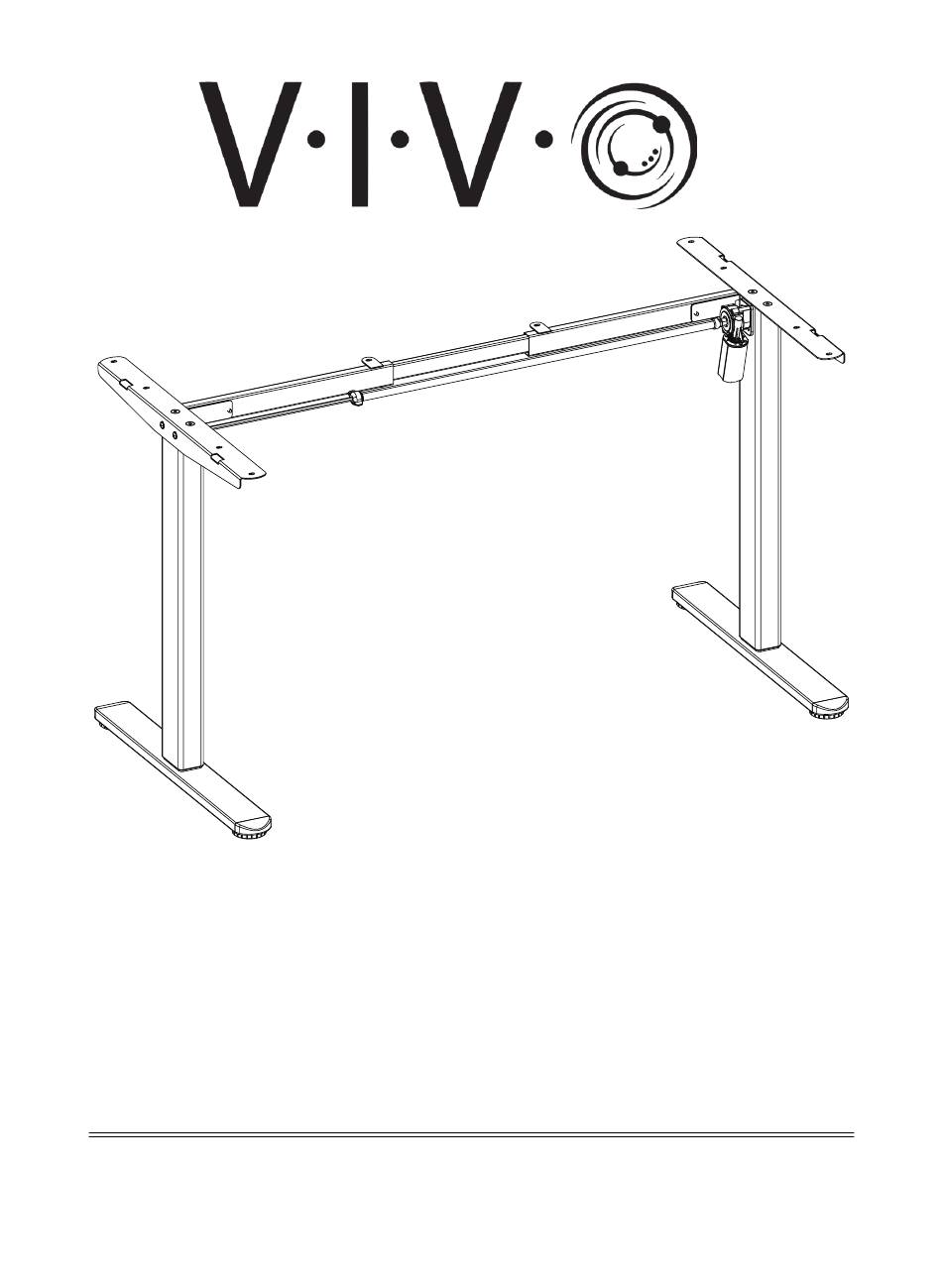

  • Page 1 Electric Single Motor Desk Frame DESK-V100EB Series Assembly Manual Individual Product SKUs DESK-V100EB DESK-V100EW...
  • Page 2: We're Here For You

    Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process.
  • Page 3: Please Read

    Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
  • Page 4: Package Contents

    Package Contents A (x1) B (x1) C (x2) Motorized Leg Feet D (x1) E (x1) F (x1) Sync Rod Controller AC Adapter G (x2) H (x1) I (x1) Side Bracket Left Crossbar Right Crossbar J (x1) K (x2) L (x2) Center Crossbar Cable Clip Hook...
  • Page 5: Weight Capacity

    Included Hardware & Tools S-A (x14) S-B (x14) S-C (x9) S-D (x5) M6x11mm Screw ST5x15mm Screw M6x35mm Screw M8x12mm Screw T-A (x1) T-B (x1) 2mm Allen Wrench 5mm Allen Wrench Tools Needed: Weight Capacity: 154lbs (70kg) Phillips Drill Screwdriver...
  • Page 6: Desk Frame Assembly

    User Guide Desk Frame Assembly pg. 7-13 Controller Instructions Operating/Troubleshooting pg. 14...
  • Page 7 ASSEMBLY STEPS STEP 1 Assemble Left Crossbar (H) to Leg (B) and Right Crossbar (I) to Motorized Leg (A) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). STEP 2 Using 5mm Allen Wrench (T-A), mount Side Brackets (G) to Legs (A,B) using M8x12mm Screws (S-D), then install M6x11mm Screws (S-A) to secure.
  • Page 8 STEP 3 Assemble Feet (C) to Legs (A,B) using M6x35mm Screws (S-C) and 5mm Allen Wrench (T-B).
  • Page 9 STEP 4 Insert Center Crossbar (J) into Left and Right Crossbars (H,I) as shown. Cutout Ensure Cutouts on Center Crossbar (J) are facing inward. Secure using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).
  • Page 10 STEP 5 5.1 Loosen the Knob on Sync Rod (D) and extend the Hex Shaft. 5.2 Insert the Hex Shaft into Leg (B), making sure its fully inserted into the Leg. 5.3 While holding the Hex Shaft with one hand, extend Sync Rod (D) into the Spline Shaft of Motorized Leg (A).
  • Page 11 STEP 6 Secure the Frame and Controller (E) to the desktop (not included) using ST5x15mm Screws (S-B) and a drill or Phillips screwdriver. Frame...
  • Page 12 STEP 7 7.1 Plug the cable from Motorized Leg (A) and AC Adapter (F) into Controller (E). 7.2 Remove adhesive backing from Cable Clips (K) and place where desired to organize cables. 7.3 Plug AC Adapter (F) into a power outlet.
  • Page 13 STEP 8 Pinch Hooks (L) as shown and insert into Side Brackets (G).
  • Page 14: Controller Manual

    Controller Manual Standard Operation Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. Troubleshooting Reset If the desk behaves abnormally, it may be necessary to perform a desk reset. Unplug the desk for 30 seconds, then plug it back in.
  • Page 15 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
