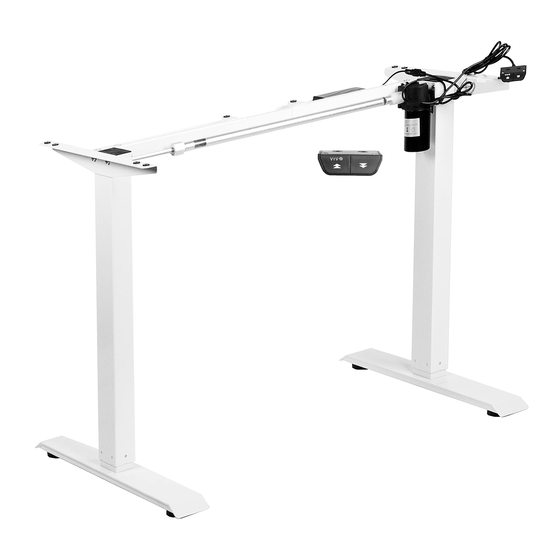

White Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V100EW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v100ew
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-V100EW
Summary of Contents for Vivo DESK-V100EW
- Page 1 White Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V100EW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v100ew GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Screwdriver Drill ASSEMBLY STEPS STEP 1 Place the feet (1) on the legs (2, 3) as shown. Insert and tighten M6x16 bolts (A) using the 5mm Allen wrench (C). - Page 4 STEP 2 Loosen the four set screws on the telescopic crossbar (4) using the 4mm Allen wrench and adjust the crossbar length to suit the desktop. Attach the telescopic crossbar to the legs as shown using M8x50mm bolts (B), and tighten with the 5mm Allen wrench. Retighten all screws. STEP 3 Loosen the nut on the sync rod (5) and insert the hex rod end into the leg.
- Page 5 STEP 4 Attach the side brackets (6) to both ends of the frame with top portions facing out using four M6x16mm bolts (A). For small desktops down to 31.5" in width, attach brackets so top portions are instead facing in towards the center. Tighten with the 5mm Allen wrench (C). STEP 5 Place the frame upside down on the desktop with the controller in the desired...
- Page 6 STEP 6 Connect the adapter (7) to the cable from the motor and controller. Suspend the adapter from the desktop using x2 cable clips (10), or place the adapter in one of the baffles. Organize cables using the cable clips. Connect the power cable (9) to the adapter, then connect the power cable to a wall outlet to power on the desk for operation.
-
Page 7: Troubleshooting
CONTROLLER Press and hold the UP or DOWN buttons to operate the desk. TROUBLESHOOTING DESCRIPTION RESOLUTION No response while pressing button Check to make sure all cables are fully connected. The desktop cannot be lifted Make sure the desktop and other items do not exceed the weight limit (154lbs). - Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S AVG. RESOLUTION TIME 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
