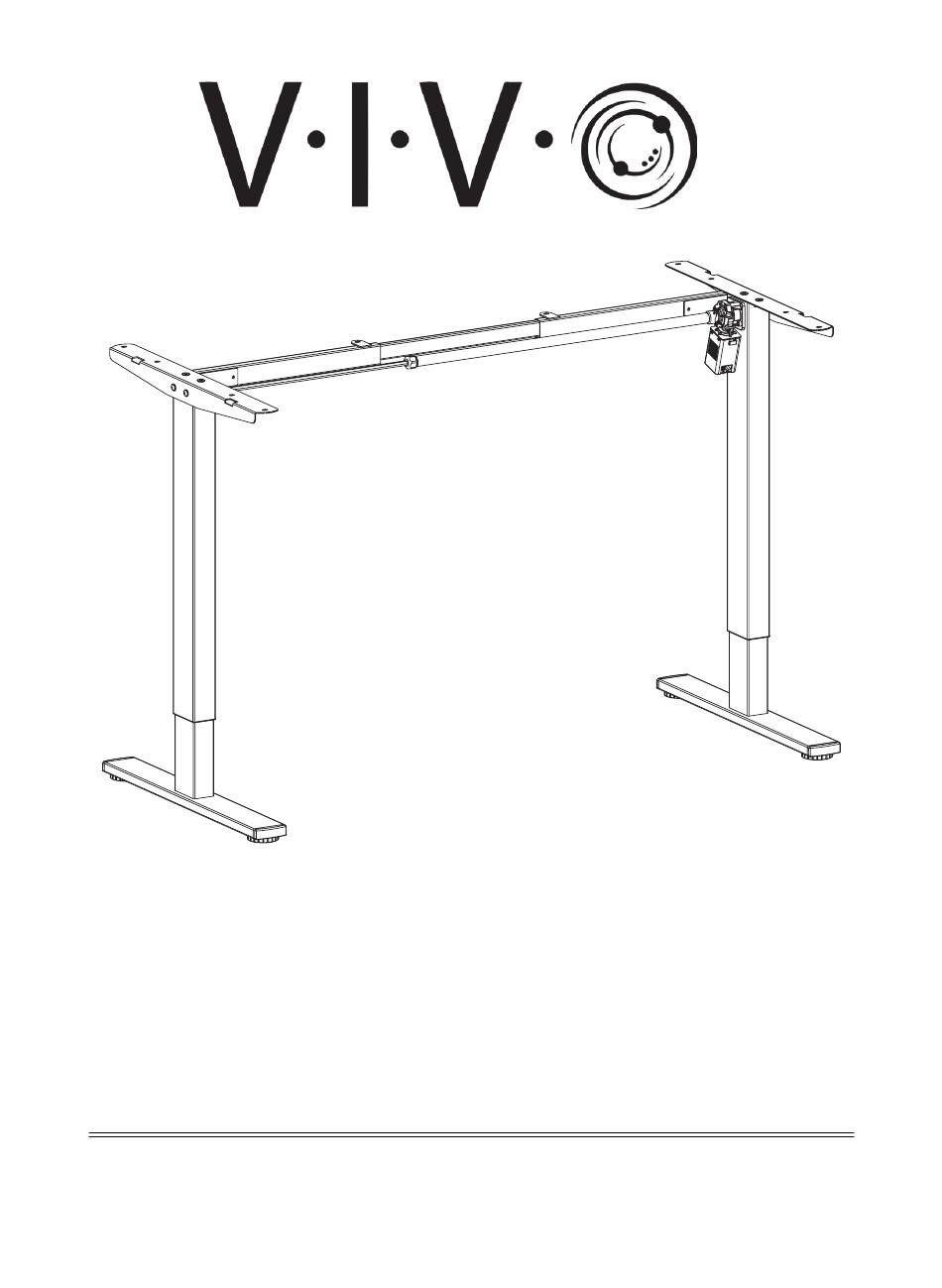

- Page 1 Electric Single Motor Desk Frame DESK-V100EBY Series Assembly Manual Individual Product SKUs DESK-V100EBY DESK-V100EGY DESK-V100EWY...
-
Page 2: We're Here For You
Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. -
Page 3: Please Read
Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. -
Page 4: Package Contents
Package Contents A (x1) B (x1) C (x1) Motorized Leg Inner Crossbar D (x1) E (x1) F (x2) Left Crossbar Right Crossbar Side Bracket I (x1) G (x1) H (x2) AC Adapter Sync Rod Foot J (x1) K (x2) L (x12) M (x2) Control Panel Hook... -
Page 5: Desk Frame Assembly
User Guide Desk Frame Assembly pg. 6-14 Control Panel Instructions Operating/Overview pg. 16 Troubleshooting pg. 17 Custom Programming pg. 18... -
Page 6: Assembly Steps
Assembly Steps STEP 1 Assemble Right Crossbar to Motorized Leg and Left Crossbar to Leg using M6x11mm Screws and 5mm Allen Wrench (S-A) (T-B) - Page 7 STEP 2 Partially attach Side Brackets (F) to the top of Motorized Leg (B) and Leg (A) using M8x18mm Screws (S-B). Secure using M6x11mm Screws (S-A) on the sides and tighten all screws using 5mm Allen Wrench (T-B).
- Page 8 STEP 3 Attach Feet to Motorized Leg and Leg using M6x11mm Screws and 5mm Allen Wrench (S-A) (T-B)
- Page 9 STEP 4 Insert Inner Crossbar (C) into Left Crossbar (D) and Right Crossbar (E). Cutout Ensure Cutouts on Inner Crossbar (C) are facing inward. Partially thread M6x11mm Screws (S-A) into the Left and Right Crossbars (D,E) using 5mm Allen Wrench (T-B). Do not fully tighten. Note: Leave the screws loosely installed.
- Page 10 STEP 5 Insert the Sync Rod (G) into the Motor until the metal Hex Shaft is fully inserted. Secure by tightening the set screw using 2mm Allen Wrench (T-A). Shaft Loosen the Knob on Sync Rod (G) so that it can freely extend. Knob...
- Page 11 STEP 5 - Cont’d While holding the Motor end of the Sync Rod (G) in place, extend the Hex Shaft on Sync Rod (G) into Leg (A) until the metal Ring makes contact. Leave the Knob loosened. Ring Shaft Make sure the metal Hex Shaft remains fully inserted into the Motor. If it slips out partially, push it back in before proceeding.
- Page 12 STEP 6 Insert Anti-Vibration Pads into the frame assembly. Install Hooks by pinching sides and inserting into small notch in Side Brackets Before Proceeding Follow the instructions included with your desktop (not included) to assemble your desktop.
- Page 13 STEP 7 For VIVO Desktops Flip the frame upside down onto the desktop and extend the frame until the holes on Side Brackets (F) line up with the desktop pilot holes. Secure frame assembly and Control Panel to the desktop using ST5x15mm Screws and a Phillips screwdriver or drill.
- Page 14 STEP 8 8.1 Connect AC Adapter (I) and Control Panel Cable (J) to Motor (B1). 8.2 Remove adhesive backing from Cable Clips (M) and place them on the underside of the desktop to route cables. 8.3 Secure the Inner Crossbar (C) by tightening the previously installed M6x11mm Screws (S-A) using 5mm Allen Wrench (T-B).
- Page 15 Controller Overview & Troubleshooting...
-
Page 16: Controller Manual
Controller Manual Standard Operation LED Panel Displays the current desk height Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. -
Page 17: Troubleshooting
If error persists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance Undervoltage Warning: The input voltage is too low. If the correct AC adapter is being used, unplug the desk from the wall and disconnect all cables from the controller. -
Page 18: Custom Programming
Custom Programming Change Displayed Height Metric To switch between inches and Centimeters, press and hold buttons 1 & 3 for 2 seconds. Repeat process to switch again. Child Safety Lock To activate the child safety lock, press and hold buttons 1 & 2 for 2 seconds. LOC will be displayed when controller is locked, and normal display height will show when unlocked. - Page 19 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
