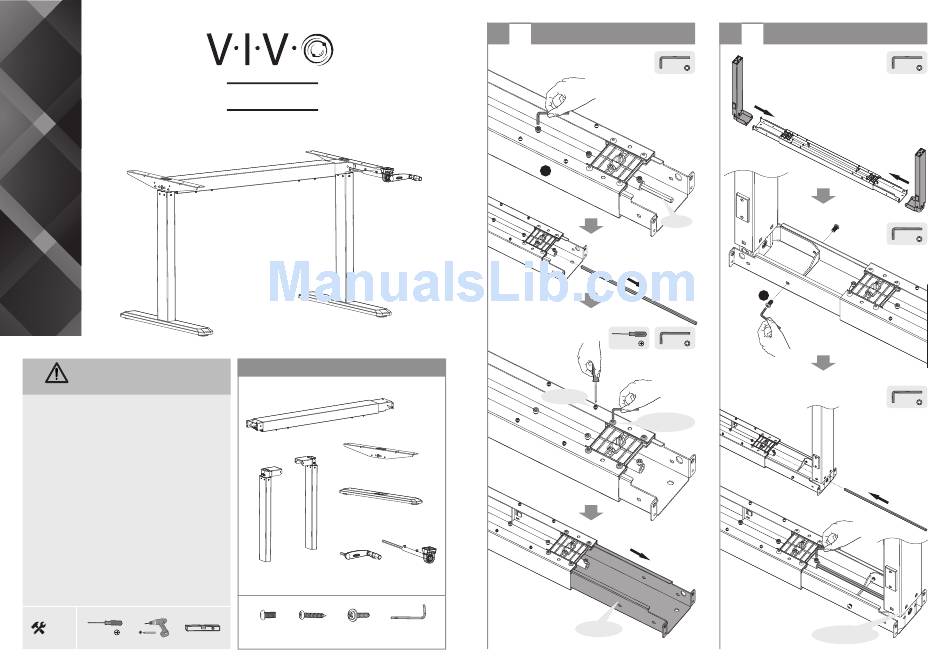

Vivo DESK-V100M Assembly Instructions

Height Adjustable Desk Frame
WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS AND
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY
WARNING RESULT IN SERIOUS BODILY INJURY.
Important information
Read the entire instruction manual before you start
installation and assembly.
This product is not intended for use by young children without supervision.
This product contains small items that could be a choking hazard if
swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors
could lead to product failure and personal injury.
IMPORTANT: Ensure that you have received all parts according to the
component checklist prior to installation. If any parts are missing or
faulty, telephone your local distributor for a replacement.
QUICK TIP: DO NOT over tighten screws during installation.
Tools
Needed
MANUAL
ASSEMBLY INSTRUCTIONS
DESK-V100M
Component Checklist
A
telescopic frame
B (x2)
upper support
C (x2)
base support
E (x1)
lifting column
D (x1)
F (x1) G
lifting column
handle handle mount
S-D
S-A (x24) S-B (x4) S-C (x8) Allen Key
1
Adjusting the Frame
·Loosen the screws using the Allen key.
·Remove the hexagon rod.
A
·Loosen the cross-head screws using
an appropriate screwdriver.
·Loosen the hexagon socket button
head screws using the Allen key.
cross-head screw
(x1)
(x1)
·Adjust the extension frame length to
suit the desktop and tighten all screws
to secure the extension frame in place.
(x1)
extension frame
2
Assembling the Lifting Columns
·Attach the lifting columns to the frame using the screws
provided and tighten all screws with the Allen key.
hexagon rod
S-A
·Reinsert the hexagon rod into the frame.
·Tighten all screws to secure the hexagon rod.
hexagon socket button
head screw
the end of hexagon rod
