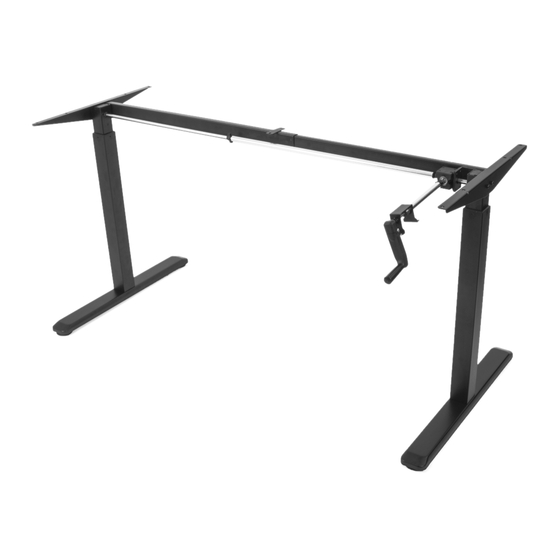

Crank Height Adjustable Desk Frame - Black
Instruction Manual
SKU: DESK-V101M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v101m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-V101M
Summary of Contents for Vivo DESK-V101M
- Page 1 Crank Height Adjustable Desk Frame - Black Instruction Manual SKU: DESK-V101M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v101m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Loosen the two set screws on the telescopic crossbar (A) using the Allen wrench (S-D). Adjust the crossbar length to suit the desktop. Attach the telescopic crossbar to the legs (F, G) as shown using M6x12mm bolts (S-A), and tighten with the Allen wrench (S-D).
- Page 4 STEP 3 Place the feet (D) on the legs as shown. Insert and tighten bolts (S-A) using the Allen wrench (S-D). p J ^...
- Page 5 STEP 4 Position the frame upright. Loosen the knobs on the sync rod (B) and extend the hex shaft. Insert hex shaft into the leg (F), then while holding the hex shaft with one hand, extend sync rod onto the shaft of the leg with gearbox (G).
- Page 6 STEP 5 If you are using a VIVO desktop, Refer to the manual that came with your desktop. If you are not using a VIVO desktop, place the desktop on the frame, and secure the desktop using the ⅞” screws (S-C).
- Page 7 CAUTION! Do not exceed desk weight limit. Keep area of vertical motion free of obstacles. Keep weight on desk balanced for Leave enough slack in cables to correct operation and longer life of allow for full range of vertical components. motion.
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
