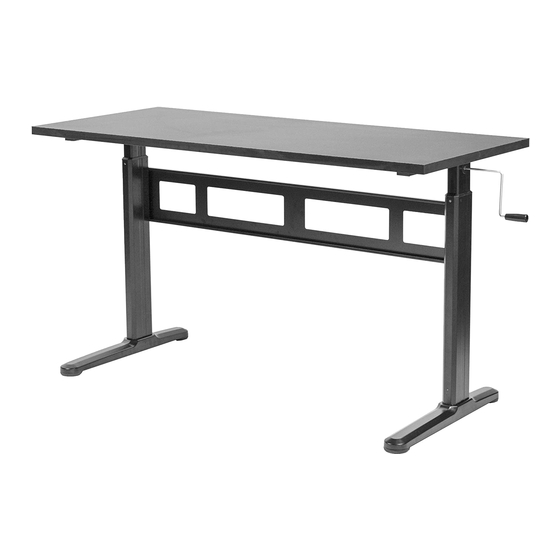

- Page 1 Manual Height Adjustable Desk Frame Instruction Manual SKU: DESK-V100M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v100m help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 STEP 2 WARNING! Insert the sync rod (B) into the hex socket on the lifting column. Place the second column (C) onto the If you do not understand these directions, or if you have any doubts about the safety of the desk board and insert the other end of the sync rod into the column.
- Page 3 STEP 3 STEP 4 Assemble the crossbar (D) to the back of the lifting columns using hex head screws (S-A) and tighten Secure the second lifting column to the desk board using x3 Phillips head screws (S-B) and tighten with the Allen wrench (S-C). with a screwdriver.
- Page 4 STEP 5 CAUTION! Insert the crank (E) into the hex socket of the lifting column. Figure 1: Turn the crank to raise or lower the Figure 2: Store the crank in the front of the desk support bracket on the column as shown. Failure to follow these instructions may result in property damage and/or personal injury.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
