OPERATING AND INSTALLATION
INSTRUCTIONS

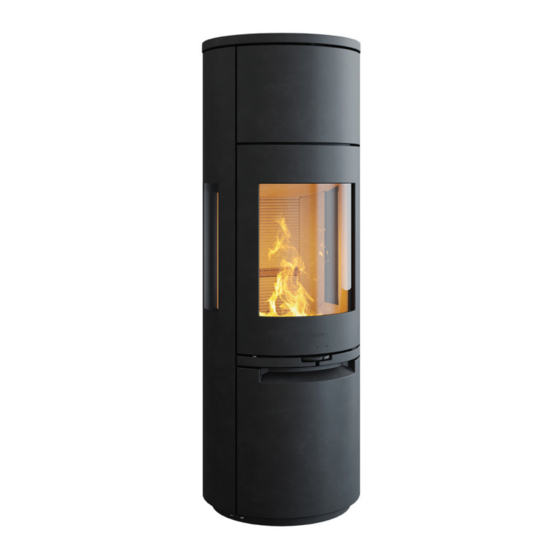

SCAN-LINE 900 SERIES
SCAN-LINE 900 SCA SERIES
Scan-line 900 SCA is exempt for use in smoke control areas when burning dry wood
PENDING
ECODESIGN READY
www.heta.dk
EN
DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION
1

Advertisement

Table of Contents
loading

Related Manuals for Heta Scan-Line 900 Series

Summary of Contents for Heta Scan-Line 900 Series

  • Page 1 OPERATING AND INSTALLATION INSTRUCTIONS SCAN-LINE 900 SERIES SCAN-LINE 900 SCA SERIES Scan-line 900 SCA is exempt for use in smoke control areas when burning dry wood PENDING ECODESIGN READY www.heta.dk DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION...

  • Page 2: Declaration Of Performance

    Signed on behalf the manufacturer of 06.06-2019 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Page 1 of 1...
  • Page 3 Signed on behalf the manufacturer of 06.06-2019 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Page 1 of 1...

  • Page 4: Table Of Contents

    Congratulations on your new wood stove, we are confident that you will be more than satisfied with your new Heta stove. Especially if you follow the following advice and instructions. Scan-Line 900 series and Scan-Line 900 Side windows series have been approved according to the EN 13240, NS 3058, NS 3059 and A15 Austria.

  • Page 5: Before Installation

    It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
  • Page 6 With your new wood stove you should find the following: Q.C. check Operating / Instruction manual Tool set Heta glove Data plate Required tools and grease are not supplied. 8057 0000-DK Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A...

  • Page 7: Operating Instructions

    To comply, a permanent stop is fitted to ensure that the air control slider cannot Startup/Lighting be closed beyond 24% Scan-Line 900 series Scan the code and select a language. and 40% Scan-Line 900 Sidewindows series of its fully open position.

  • Page 8: Emptying The Ash

    Spread the embers over the base grate, with Ensure when refueling that the wood is not too close, it will cause poorer combustion, less heat most towards the front of the stove. Place fi- out-put and lower efficiency. rewood equivalent to 1.52 kg (Scan-Line 900 When refueling be careful to place series) and 1.71 kg (Scan-Line 900 Side win- the fuel into the combustion cham-...

  • Page 9: Reduced Burning

    Nominal fluegas temperature: Never use the stove if the 252° Scan-Line 900 series, relative to 20°C. seals are loose. 267° Scan-Line 900 Side windows series, relative to 20°C. 1.8 Explosion!!! Scan-Line 900 series: Flue gas flow is: 5,0 g/sec.

  • Page 10: Fuel

    vides optimal heat output and maximum effi- ciency. At the same time, correct firing prevents environmental damage in the form of smoke emissions and reduces the risk of chimney fires. If the wood is damp and inadequately seasoned, a large proportion of the energy in the fuel will be used to vaporize the water and this will all disap- combustion pear up the chimney.

  • Page 11: Operating Problems

    1.11 Operational problems tively removed by using proprietary stove glass cleaner. The chimney must be swept at least once a year, we recommend the use of a NACS (natio- 1.15 Cleaning the oven nal association of chimney sweeps) registered chimney sweep. Remove and clean baking racks and rails.

  • Page 12: Troubleshooting

    1.16 Troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.

  • Page 13: Diagram For Maintenance

    = Visual Inspection, pos. cleaning/replacing/adjusting 1.18 Guarantee - Damage caused by improper use. Heta wood stoves, subjected to a strict quality - Transportation costs for warranty repair. control during production and before delivery to - Assembly / disassembly of warranty repair.

  • Page 14: Scan-Line 900 Series

    1.19 Scan-Line 900 series. Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 6.

  • Page 15: Cleaning/Replacing Bicks After Chimney Sweeping Scan-Line 900 Side Windows Series

    1.19 Scan-Line 900 Side windows series. Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 5.

  • Page 16: Stove Data Table En 13240

    125/150 series Average temperature in the flue pipe connector: Scan-Line 900 series 302° C - Scan-Line 900 Side windows series 321° C. Scan-Line 900 B = Baking oven Scan-Line 900 S = Therma stones Scan-Line 900 B Side windows = Baking oven Scan-Line 900 S Side windows = Therma stones Stove models with a glass front on a door have the same weight as stove models with ordinary doors.

  • Page 17: Parts

    1.21 Scan-Line 900 series Parts - Inside fire chamber Pos. Name Qty. 1 0023-006028 Vermiculite, rear, bottom 2 0023-006261 Vermiculite, side, right 3 0023-006465 Vermiculite, side, left 4 0023-011495 Baffle 5 0023-012044 Baffle, small 6 0023-012060 Vermiculite, rear, top 7 0023-012061...
  • Page 18 Scan-Line 900 Side windows series Parts - Inside fire chamber 12 6 Pos. Name Qty. 0023-006026 Vermiculite, front, right 0023-006028 Vermiculite, rear, bottom 0023-006029 Vermiculite, narrow sid, right 0023-006032 Vermiculite, rear, top 0023-006050 Vermiculite, under Side windows 0023-006110 Baffle, two-part, right 0023-006467 Vermiculite, front, left 0023-012056...
  • Page 19 Parts - Door Pos. Name Qty. 6000-005970 Close roller, completet 0008-1002 M6x6 Hexagon socket set screw 0008-2304 M4x6 Hexalobular socket pan head 0008-9082 6x35 Round head rivet 0021-006404 Glass 0023-012405 0023-3008 Glass gasket ø12 L = 1,84 m 0023-012407 0023-3010 Textile glass 6 mm with adhesive, black L = 1,3 m 0023-012408 0023-3010 Textile glass 6 mm with adhesive, black L = 0,36 m...

  • Page 20: Installation Instructions

    Parts - Glass door Pos. Name Qty. 0008-0036 M4x6 Hexagon socket cap screw 0008-1002 M6x6 Hexagon socket set screw 0008-2304 M4x6 Hexalobular socket pan head 0008-9082 6x35 Round head rivet 0021-006557 Glass for stove door 0023-016314 0023-3008 Glass gasket ø12 soft L = 1,84 m 0023-020340 0023-3010 Textile glass 6 mm, with adhesive, L = 1,75 m 0023-020341 0023-3013 Glass band 3x8 mm...
  • Page 21 Parts - Baking oven door Pos. Name Qty. 0008-0036 M4x6 With flat head 0008-1002 Set screw 0008-018935 Round head rivet steel 0021-020355 Glass 0023-012408 0023-3010 Glass gasket Textile glass 6 mm, with adhesive, black L=0,36 m 0030-019579 Baking oven door 0050-0301 Rails for baking racks 0050-0302...
  • Page 22 Installation Instructions Contents Installation instructions ..............23 Distance requirements ..............23 Floor ....................23 Chimney connection ................. 23 Combustion air and ventilation ............24 Stovedrawings/measurments ............. 24-26 Assembling the thermal stones ........... 26-27 Connecting direct air below or behind ..........28 Installing the HAC unit ...............

  • Page 23: Installation Instructions

    flue gas pipe ve or on page 16 of this manual. must be sealed with fireproof material and / or beading. Heta A/S stresses that it is of utmost 2.2 Floor importance that this is done correctly with very tight joints.

  • Page 24: Combustion Air And Ventilation

    The stove is approved as a room air dependent stalled to an outside air supply. stove in accordance with EN 13240. All the The Scan-Line 900 series and Scan-Line 900 combustion air in the inset stove comes from Side windows series have a nominal output of the room in which it is fitted.
  • Page 25 Scan-Line 900 Stone Side windows series Scan-Line 900 Side windows series ø100 ø100 Scan-Line 900 S series Scan-Line 900 B series ø100 ø100 Center for fresh air Center for fresh air Casted top Stone top Casted top Stone top 1491 1511 1491 1511...

  • Page 26: Assembling The Thermal Stones

    Scan-Line 900 B Side windows series Scan-Line 900 S Side windows series ø100 ø100 Center for fresh air Center for fresh air Casted top Stone top Casted top Stone top 1491 1511 1491 1511 2.6 Assembling the thermal stones...
  • Page 27 - 0023-022143 0023-022142 -...

  • Page 28: Connecting Direct Air Below Or Behind

    ø100 mm, the draught in the flue depends on this air for optimal combu- stion. Heta recommends max. 4 meters of direct air pipe, with max. 3, 90° bends and a min. of ø100 Flexi-pipe to the floor 2.8 Installing the HAC unit...

  • Page 29: Clearances For Installation En 13 240

    2.9 Clearances for installation EN 13 240 SL 900 series - Non-flammable substrate Furnitures Norwegian fire wall Combustible material 50 mm insulated - The dimensions are the minimum dimensions, 108 mm brick - unless otherwise stated. Clearances Oventype Distance from oven to combustible material Norwegian fire wall Stove Distance to firewall with 108 mm brick...

  • Page 30: Changing To A Back Flue Outlet

    2.10 Changing to a back outlet Steel model with casted top...
  • Page 31 3. Appendix A The Clean Air Act 1993 and Smoke Control Areas. Under the Clean Air Act local authorities may gulatory Reform (Scotland) Act 2014. In Wales declare the whole or part of the district of the and Northern Ireland these are authorized by authority to be a smoke control area.
