Proaim Lanc Zoom Controller

(P-ZC-3DV)

I N S T R U C T I O N M A N U A L

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted

by the applicable copyright statutes or in writing by the publisher.

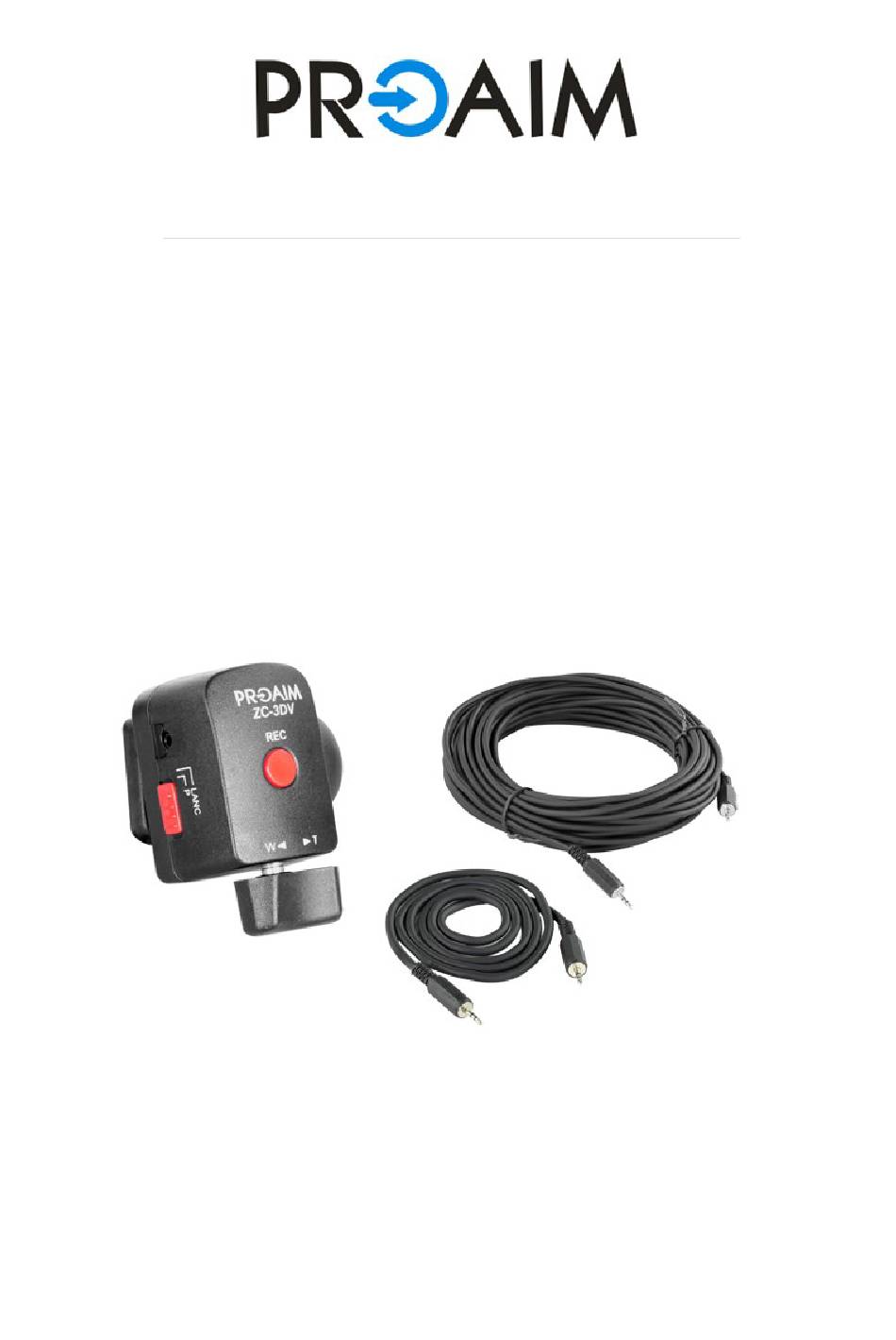

Page 1 Proaim Lanc Zoom Controller (P-ZC-3DV) I N S T R U C T I O N M A N U A L All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the publisher.
Page 2 I N T R O D U C T I O N Proaim’s Lanc zoom controller is a universal controller for both LANC and Panasonic DV cameras, with a converter switch that allows for variable-zoom speed from slow to fast. The zoom lever allows you to zoom out to wide-angle or zoom in to telephoto.
Page 3 Proaim Lanc Zoom Controller  Please avoid water and rain drop in order to avoid the malfunction.  Do not subject this unit to strong vibrations or shocks  Do not expose the unit in direct sunlight, near hear producing objects, in a hot car, or in other hot places, as this may deform or discolour the unit.
Page 4 Proaim Lanc Zoom Controller AT TA C H T O T H E PA N H A N D L E Loosen the clamp knob till enough space is available. Attach to the pan handle. 1) Centre of pipe is to be fit to clamp "V"...
Page 5: Warranty
Proaim Lanc Zoom Controller S T O R A G E When do not use, insert the stereo mini jack into both side as indicated. S P E C I F I C AT I O N Clamp distance: Φ10mm (0.39 inch) – Φ30mm (1.18 inch) Cable Socket : Φ2.5mm stereo mini jack...
