Teknion district Installation Manual

Panel wall add-on screen
Hide thumbs Also See for district:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
district
Installation Guides
Section:
SCREENS
Description:
PANEL WALL ADD-ON SCREEN
Panel Wall Add-On Screen (UNSPG & UNSPS)
A
B1
C1
Date:
Jun 2017
DIS_304a

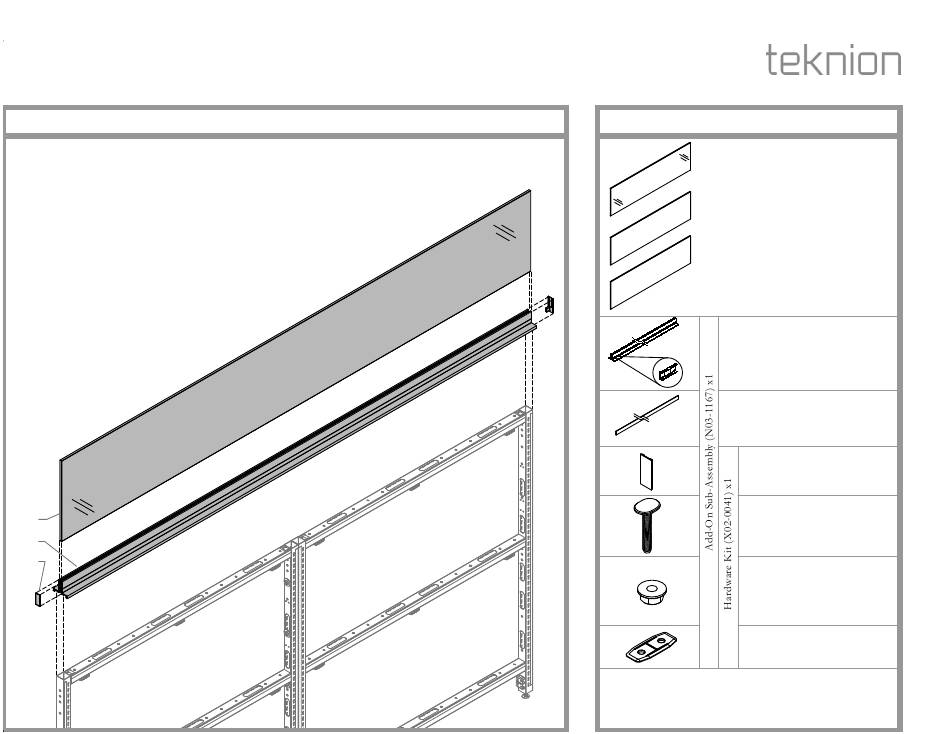

Part and Product Identification
A - Add-On Screen
10mm Tempered Glass
(H01-0568-X) x1
OR
- Add-On Screen -
Laminated Glass
(H01-0569-X) x1
OR
- Add-On Screen -
Wood
(C05-2874-X) x1
B1 - Add-On Metal Sub-assy
(N03-1173) x1
B2 - UNSP Extrusion Cover
Clip (B02-0406) Qty. varies
B3 - Add-On Snap-Fit Cover
(A23-4229) x1
C1 - Add-On End Cap
(A25-0255L) x1
(A25-0255R) x1
C2 - Trim Fastener (D03-0065)
24"-36" x2
42"-66" x3
72"-96" x4
C3 - 5/16-18 Lock Nut
Zinc Plate (E03-0437)
24"-36" x2
42"-66" x3
72"-96" x4
C4 - Top Trim Alignment
Biscuit
(B02-0238) x1
For Customer Support please contact
product.support@teknion.com
Page No:
1 of 6
Rev. No: 6
