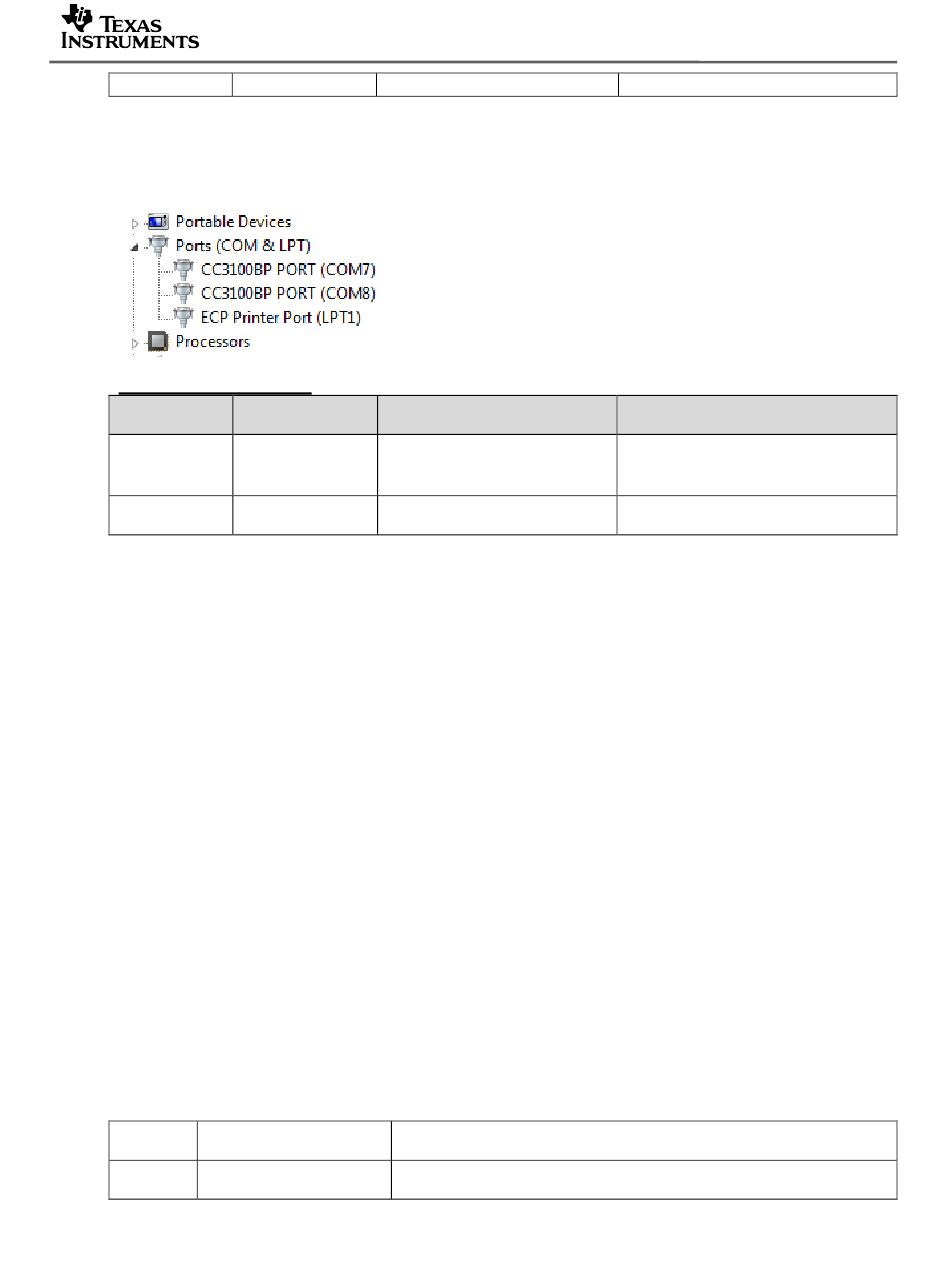

Note : On the PC only two of the four ports would be visible on the Device Manager. The
D2XX ports are not listed under the "Ports" tab.
The first COM port in the list usually is used for the flash programming.
Ports available on J5
Port No
1
2
3.1.3 Driver requirements
The FTDI Debug board requires the user to install the associated drivers on a PC. This
package is available as part of the SDK release and would be located at [Install-
Path]\cc3100-sdk\tools\cc31xx_board_drivers\.
The install path is usually C:\ti\cc3100SDK

3.2 Mating the boards

The image above shows the connection of the CC3100MODBOOST to the
CC3100EMUBOOST Board. The connectors should be aligned carefully considering that
it does not have a polarity protection. The pin-1 of the connectors are marked on the
board using a small triangle marking and these should be aligned while mating.
Caution :
Align the pin-1 of the boards together using the triangle marking on the PCB. An incorrect
mating can destroy the boards permanently.
Ensure that none of the header pins are bent before mating the two boards. Jumper
settings on the CC3100BOOST

3.3 Jumper settings on the EMUBOOST

The following table specifies the jumpers to be installed while mating with the FTDI board.
No Jumper settings
1 J4 (short)
TI Confidential – Strictly Private
Port Type Usage
VCP RT3
VCP MAC logger
Notes
Provide 3.3V to the Booster pack
EVM User's Guide
output. TX only
Comments
Used for TI internal debug
only.
MAC logger output. TX only
