3 Connecting to the PC using EMUBOOST

3.1 CC31XXEMUBOOST

3.1.1 Overview
The CC31XXEMUBOOST is designed to connect the CC3100MODBOOST pack to a PC
using USB connection. This is used to update the firmware on the BP using the
"SL_Prog" utility and also in software development using "SL_Studio".
3.1.2 Hardware details

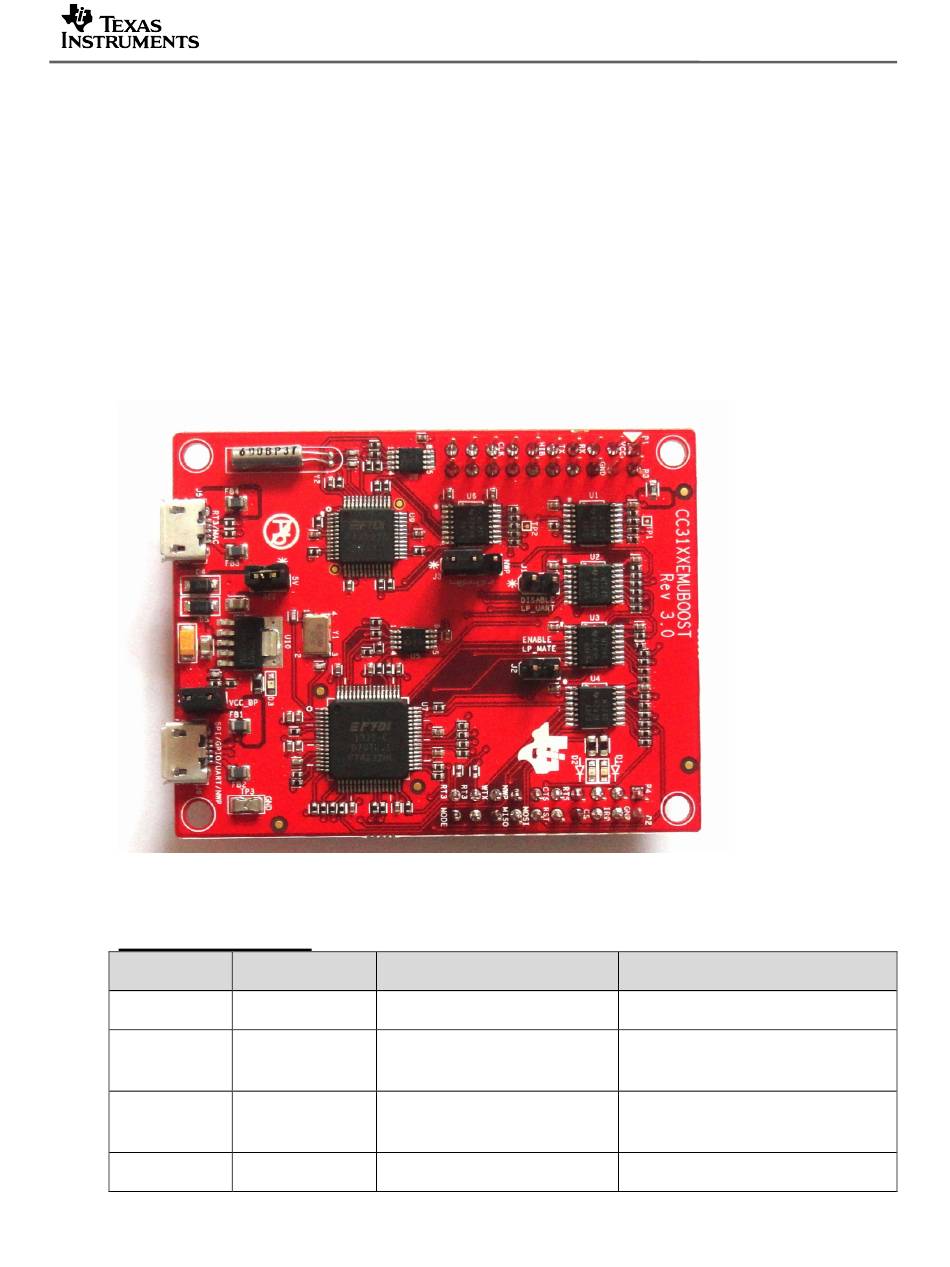

The board has two FTDI ICs to enumerate multiple COM and D2XX ports. The details of
the ports are given below
Ports available on J6
Port No Port Type
1 D2XX
2 D2XX
3 VCP
4 VCP
TI Confidential – Strictly Private
Usage
SPI port for SL Studio
GPIO for SL Studio
COM port for flash
programming
NWP
EVM User's Guide
Comments
Control the nRESET, nHIB,
IRQ
Network processor logger
11
