5.2 Antenna pattern

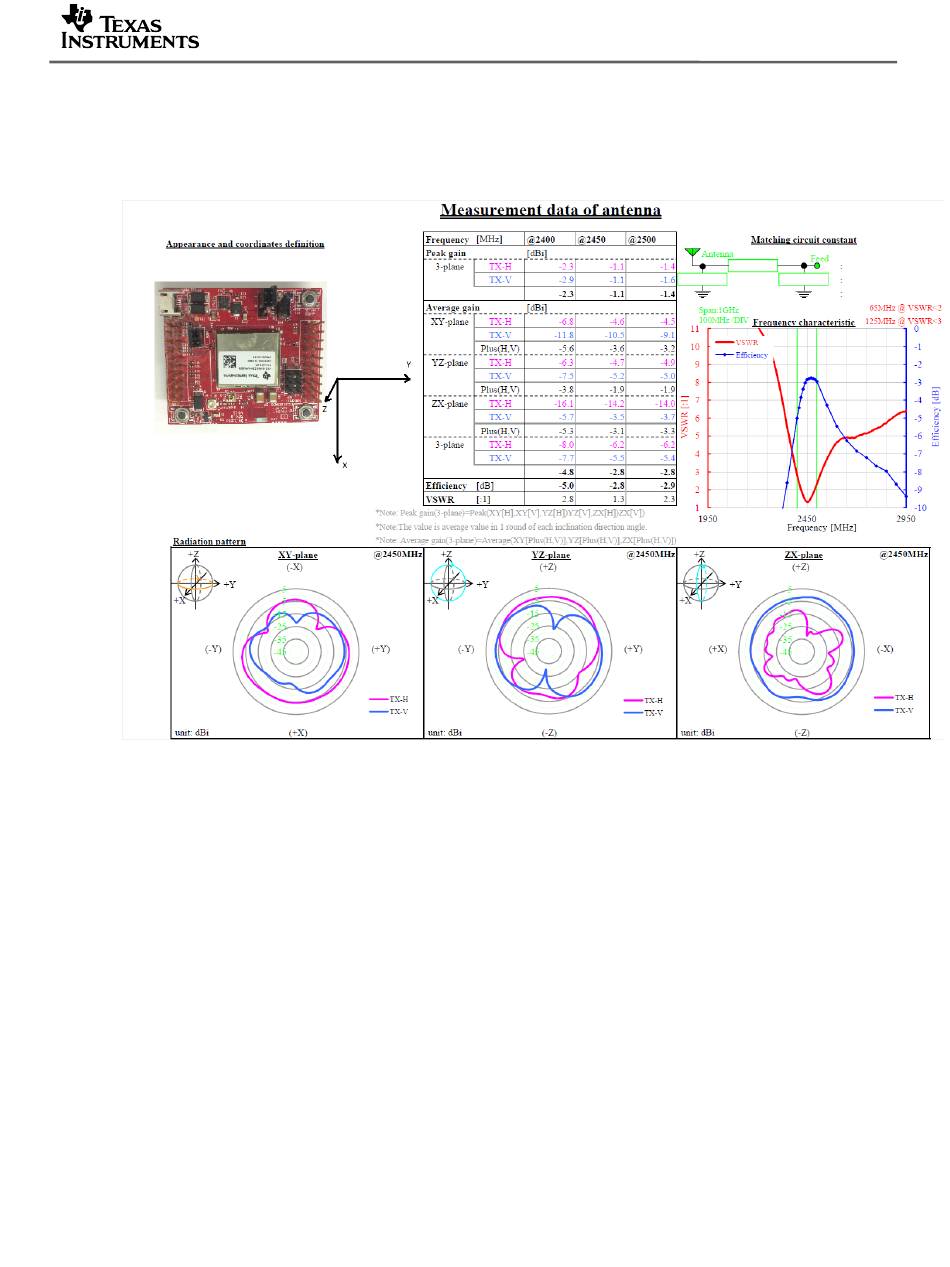

The antenna used on the evaluation platform is a chip antenna from Taiyo Yuden
(AH316M245001-T). The below figures depict the radiation patter from this chip antenna.
Note that the radiation pattern is influenced by presence of any metal parts nearby.
