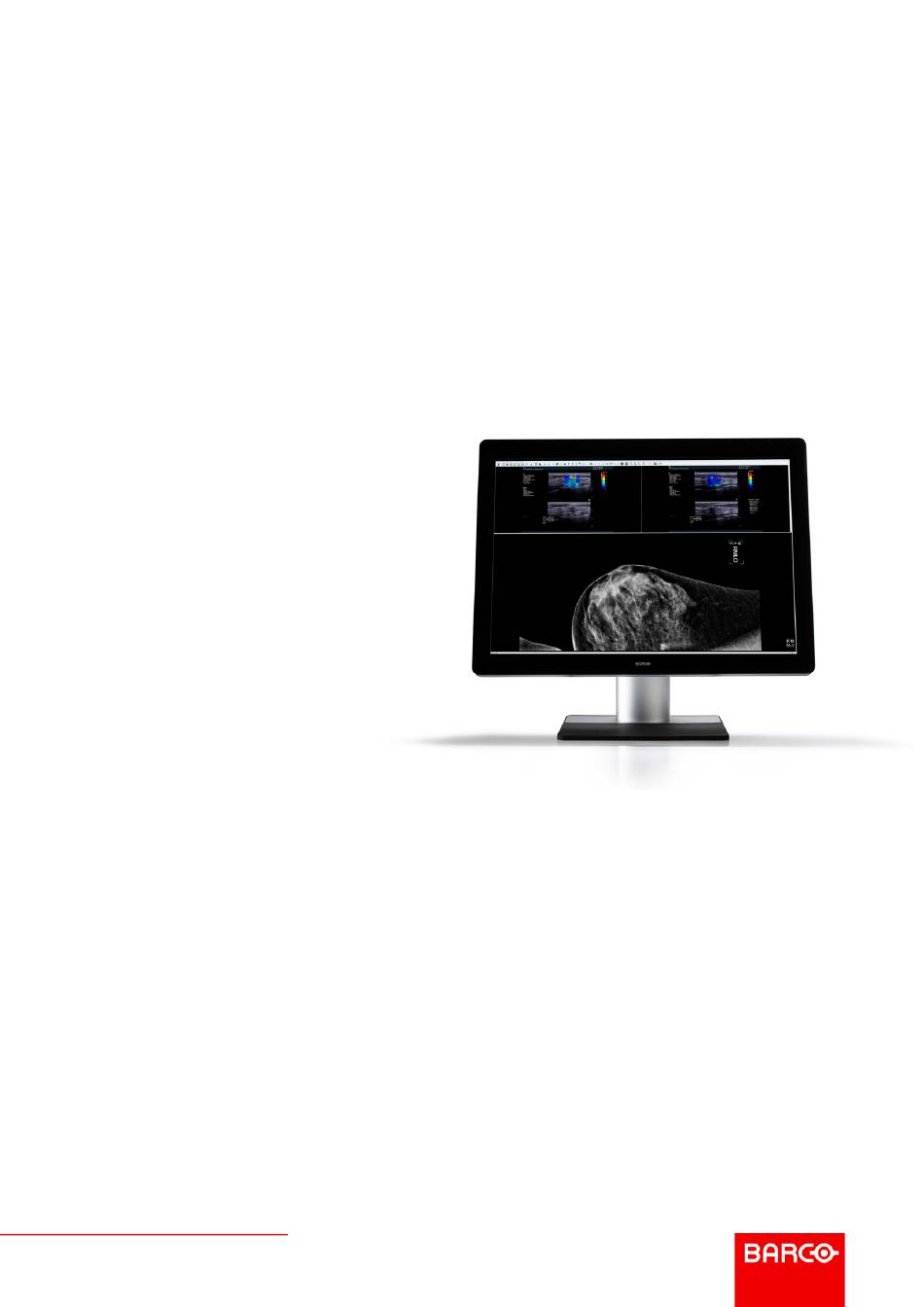

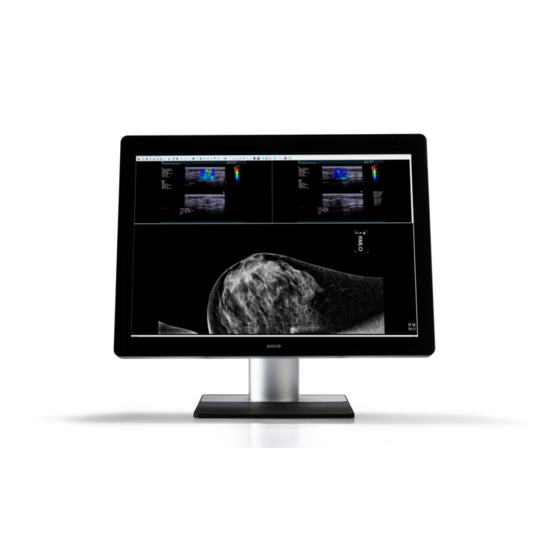

  • Page 1 Coronis Uniti User Guide MDMC-12133 ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...

  • Page 3: Table Of Contents

    OSD menu automatic close function............................28 Power LED......................................28 Key indicator lights ..................................29 Power lock function..................................29 SoftGlow Task light..................................29 SoftGlow Wall light ..................................30 DPMS mode.......................................30 Hibernate ......................................31 4.10 Delayed power down ..................................31 4.11 I-Luminate default mode ................................32 4.12 I-Luminate film position................................32 K5902079 /11 Coronis Uniti...
  • Page 4 4.28 Display info ......................................40 4.29 Display status....................................41 5 Cleaning the display ...................................43 Cleaning instructions..................................44 6 Repackaging instructions ................................45 Repacking your Coronis Uniti system ..........................46 7 Important information..................................53 Safety information...................................54 Cybersecurity ....................................55 Environmental information.................................56 Regulatory compliance information ............................57 EMC notice ......................................59 Explanation of symbols................................61...

  • Page 5: Welcome

    Welcome! K5902079 /11 Coronis Uniti...

  • Page 6: What's In The Box

    • Cables for Mains, Video and USB If you ordered a Barco MXRT display controller, it is also in the box together with its accessories. A dedicated user guide is available on the documentation disc. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage.
  • Page 7 Store the foot lock pin and tilt lock pin for possible future transportation of the display. Connectors To access the rear connectors, gently push the two lips on the top of the cover then pull the top of the cover away from the display and remove it. K5902079 /11 Coronis Uniti...
  • Page 8 Welcome! Following connectors are available: Image 1–3 1. Power input 2. DisplayPort input 3. DisplayPort input 4. Not used 5. USB-A upstream connector 6. USB-B downstream connector 7. USB-B downstream connector 8. USB-B downstream connector K5902079 /11 Coronis Uniti...
  • Page 9 Image 1–4 Barco Touchpad The Barco Touchpad can control Barco’s Intuitive Workflow Tools and allows you to control diagnostic imaging and other viewing applications with configurable multi-touch gestures and touchpad function activation buttons. Using and configuring the Barco Touchpad requires Barco’s MXRT display controller and driver to be installed on your workstation.
  • Page 10 Welcome! K5902079 /11 Coronis Uniti...

  • Page 11: Installation And Setup

    Installation and setup K5902079 /11 Coronis Uniti...

  • Page 12: Display Controller Installation

    The Coronis Uniti display operates at its full specifications when driven by a Barco MXRT display controller and MXRT driver (which also includes the Barco Intuitive Workflow Tools). If you ordered a MXRT display controller, it is included in the box of your display.
  • Page 13 Tip: To retain the pin for possible future transportation, insert the short, red end of the pin back into the stand of your display. To adjust the display position Unlock the tilt- and height mechanism as described above. Tilt, swivel, raise and lower the display as desired. K5902079 /11 Coronis Uniti...

  • Page 14: Cable Connections

    Connect the USB upstream connector with the USB host of your workstation to make optimal use of QAWeb and the Barco Intuitive Workflow Tools, and to use the Barco Touchpad. Connect the Barco Touchpad with one of the USB downstream connectors. Other peripherals like a keyboard, mouse, etc. can also be connected.
  • Page 15 Tip: The cable straps at the inside of the connector compartment allow you to fix the cables for better shielding of the cables. Re-install the connector cover. Plug the external DC power supply into a grounded power outlet by means of the proper power cord delivered in the packaging. K5902079 /11 Coronis Uniti...

  • Page 16: Mxrt Driver And Intuitive Workflow Tools Installation

    About When you are using a Barco MXRT display controller, you can start up your Coronis Uniti display system and install the MXRT driver and Intuitive Workflow Tools . Barco’s Intuitive Workflow Tools are designed to increase visibility of subtle details, improve focus during reading sessions, and accelerate workflow.

  • Page 17: Fixation Of The Foot On The Desk

    2.7 Fixation of the foot on the desk Overview If you would like to attach the Coronis Uniti to a desk, the tilt & swivel foot has 4 screw holes (4x M4) to mount the foot on a desk. 1. Drill four holes in the desk.

  • Page 18: Vesa-Mount Installation

    2. Put the display face down on a clean and soft surface. Be careful not to damage the panel screen. 3. Loosen the plastic covers with a cross head screwdriver. 4. Remove the two plastic covers. K5902079 /11 Coronis Uniti...
  • Page 19 6. Attach the arm stand firmly to the panel using 6 screws M4 x 6 mm for a 200 x 100 mm VESA solution or 4 screws M4 x 6 mm for a 100 x 100 mm VESA solution. K5902079 /11 Coronis Uniti...
  • Page 20 Installation and setup K5902079 /11 Coronis Uniti...

  • Page 21: Daily Operation

    Daily operation K5902079 /11 Coronis Uniti...

  • Page 22: Recommendations For Daily Operation

    Avoid objects on the Barco Touchpad When cables and other objects are left on the Barco Touchpad, these can be misinterpreted as fingers and may block DPMS and screen saver activation. Barco recommends keeping the Barco Touchpad clear of other objects.

  • Page 23: Standby Switching

    SoftGlow Task light → SoftGlow Wall light → SoftGlow Task + Wall light → OFF→ ... To adjust the brightness of the SoftGlow lights, please refer to “SoftGlow Task light”, page 29 “SoftGlow Wall light”, page K5902079 /11 Coronis Uniti...

  • Page 24: Osd Menu

    3.5 OSD menu About the OSD menu The OSD menu allows you to configure different settings to make your Coronis Uniti fit your needs within your working environment. Also, you can retrieve general information about your display and its current configuration settings through the OSD menu.

  • Page 25: Viewing Mode

    Please note that text mode is not persistent. Once powered off, the display will restart in diagnostic mode. The diagnostic mode should always be selected when the Coronis Uniti is intended to be used for screening and diagnosis.
  • Page 26 Daily operation K5902079 /11 Coronis Uniti...

  • Page 27: Advanced Operation

    Certain OSD menu settings affecting calibration can be managed by QAWeb. Manually changing these settings in the OSD menu is still possible but the changes will be overwritten at each sync with QAWeb. The OSD menu can also be locked/unlocked by QAWeb. K5902079 /11 Coronis Uniti...

  • Page 28: Osd Menu Language

    About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages available for the OSD menu of your Coronis Uniti. To change the language of the OSD menu: Bring up the OSD main menu.

  • Page 29: Key Indicator Lights

    4.5 Power lock function About the power lock function By enabling the power lock function, the Coronis Uniti is forced to remain switched on. This means that it can’t be switched to stand-by mode manually until the power lock function is disabled again.

  • Page 30: Softglow Wall Light

    Set a SoftGlow Task Light brightness value as desired and confirm. The SoftGlow lights can also be enabled and configured in the Intuitive Workflow Tools. See the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or at www.barco.com/support.

  • Page 31: Hibernate

    To enable/disable delayed power down on your display: 1. Bring up the OSD main menu. 2. Navigate to the Configuration > Power Management menu. 3. Enter the Delayed Power Down submenu. 4. Select Enabled/Disabled as desired and confirm. K5902079 /11 Coronis Uniti...

  • Page 32: I-Luminate Default Mode

    Select Screen / Small Film / Large Film as desired and confirm. I-Luminate can also be enabled and configured in the Intuitive Workflow Tools. See the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or www.barco.com/support.

  • Page 33: Luminance Target

    4.13 Luminance target About the luminance target The luminance target of your Coronis Uniti is adjustable over a predefined range. When you change the luminance target, the display will adjust its backlight to reach the target. To set the luminance target: Bring up the OSD main menu.

  • Page 34: Color Coordinates

    Please note that text mode is not persistent. Once powered off, the display will restart in diagnostic mode. The diagnostic mode should always be selected when the Coronis Uniti is intended to be used for screening and diagnosis.

  • Page 35: Ambient Light Compensation (Alc)

    DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications.

  • Page 36: Continuous Ambient Light Compensation (Alc)

    Please refer to “Ambient Light Compensation (ALC)”, page 35 to enable ALC. The available reading rooms for your Coronis Uniti are: • CR/DR/ MAMMO: Corresponds to light conditions in diagnostic reading rooms for computed radiology, digital radiology or mammography. This setting has the lowest maximum ambient light.

  • Page 37: Dicom Status Report

    Embedded QA is not a replacement for the Barco QAWeb solution. Although Embedded QA is a reliable option to perform a simple calibration or compliance test, Barco still highly recommends QAWeb as the solution of choice for calibration and QA. QAWeb brings many benefits...

  • Page 38: Dicom Calibration

    Image scaling is only possible when the resolution of your display’s video input signal is less than or equal to half the maximum resolution of the display. K5902079 /11 Coronis Uniti...

  • Page 39: Image Source Selection Modes

    4.24 Image source selection modes About image source selection modes Your Coronis Uniti automatically detects the number of video input signals connected, attaches them to the correct display side and applies the correct video settings to it (resolution, video encoding mode, refresh rate,...).

  • Page 40: Displayport Standard Version

    Select one of the available color conversion modes and confirm. 4.26 DisplayPort standard version About DisplayPort standard version The Coronis Uniti supports 2 DisplayPort standard versions: DP V1.1 and DP V1.2, the latter providing a higher video bandwidth. To select the DisplayPort standard version Bring up the OSD main menu.

  • Page 41: Display Status

    (display function, luminance, ALC, etc.). To retrieve the status of your display: Bring up the OSD main menu. Navigate to the Status menu. Enter the Display, Image Sources or Calibration submenu as desired. K5902079 /11 Coronis Uniti...
  • Page 42 Advanced operation K5902079 /11 Coronis Uniti...

  • Page 43: Cleaning The Display

    Cleaning the display K5902079 /11 Coronis Uniti...

  • Page 44: Cleaning Instructions

    Do not use sharp objects such as paperclips or tweezers to avoid damage to the LCD. CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause damage to internal electronics. Instead, apply the liquid to a cleaning cloth. K5902079 /11 Coronis Uniti...

  • Page 45: Repackaging Instructions

    Repackaging instructions K5902079 /11 Coronis Uniti...

  • Page 46: Repacking Your Coronis Uniti System

    Repackaging instructions 6.1 Repacking your Coronis Uniti system How to repack your Coronis Uniti system Insert the connector cover in the small buffer. Image 6–1 Lock the height mechanism at the lowest display position by inserting the hook pin in the back of the stand.
  • Page 47 Repackaging instructions Image 6–3 Tilt the display in the most upwards position. Image 6–4 Slide the small buffer between the display and the stand. Image 6–5 Tilt the display back, to the most downward position. K5902079 /11 Coronis Uniti...
  • Page 48 Make sure that the tilt lock pin is inserted deep enough until only the red part of the pin is visible. Image 6–7 Image 6–8 Place the display in the bottom box so that it fits in the buffers. Caution: It takes 2 persons to safely execute this action. K5902079 /11 Coronis Uniti...
  • Page 49 Insert the 2 cardboard compartments in the bottom buffers. Image 6–10 Position the 2 top buffers on the display and cardboard compartments. Image 6–11 Slide the accessory box and the display controller box in the cardboard compartments. K5902079 /11 Coronis Uniti...
  • Page 50 Slide the top box over the display, in the bottom box. Caution: Make sure that the position of the lock cutouts in the bottom box and top box fit together. Image 6–14 Insert the 4 locks in the provided cutouts of the box. K5902079 /11 Coronis Uniti...
  • Page 51 Repackaging instructions Image 6–15 Turn each lock a quarter turn to the right. Image 6–16 The Coronis Uniti system is ready to be shipped. Image 6–17 K5902079 /11 Coronis Uniti...
  • Page 52 Repackaging instructions K5902079 /11 Coronis Uniti...

  • Page 53: Important Information

    Important information K5902079 /11 Coronis Uniti...

  • Page 54: Safety Information

    To fully disengage the power to the device, please disconnect the power cord from the AC inlet. High magnetic environment • The device shall not be used in the high magnetic environment of an MRI scanner. • The installer shall assess the magnetic environment before installation or use of the device. K5902079 /11 Coronis Uniti...

  • Page 55: Cybersecurity

    7.2 Cybersecurity Hospital IT security To prevent unauthorized access to the device, the organization incorporating the Coronis Uniti in their IT network shall have the necessary state-of-the-art policies, processes, standards and other security measures in place to incorporate, support and protect the device into the IT network. This shall include the application of risk management (e.g.

  • Page 56: Environmental Information

    Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 57: Regulatory Compliance Information

    Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
  • Page 58 The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules.

  • Page 59: Emc Notice

    Electromagnetic emissions The Coronis Uniti is intended for use in the electromagnetic environment specified below. The customer or the user of the Coronis Uniti should assure that it is used in such an environment. Electromagnetic environment –...
  • Page 60 Consult the dealer or an experienced technician for help. Electromagnetic immunity The Coronis Uniti is intended for use in the electromagnetic environment specified below. The customer or the user of the Coronis Uniti should assure that it is used in such an environment.

  • Page 61: Explanation Of Symbols

    On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates the device meets the requirements of the applicable EC directives/regulations. Indicates compliance with Part 15 of the FCC rules (Class A or Class B). Indicates the device is approved according to the UL regulations K5902079 /11 Coronis Uniti...
  • Page 62 Indicates the device is approved according to the BIS regulations. IS 13252 (Part 1) IEC 60950-1 R-xxxxxxxx www.bis.gov.in Indicates the device is approved according to the INMETRO regulations. K5902079 /11 Coronis Uniti...
  • Page 63 Caution Consult the Instructions For Use. Consult the Instruction For Use on the website address that is provided as eIFU indicator. eIFU indicator Values for xx and yy can be found in the technical specifications paragraph. K5902079 /11 Coronis Uniti...
  • Page 64 Indicates that the box should not be cut with a knife, a cutter or any other sharp object. Indicates the temperature limits to which the device can be safely exposed when being stored. +60 °C -20 °C K5902079 /11 Coronis Uniti...

  • Page 65: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 66: Technical Specifications

    Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever.
  • Page 67 Mounting standard VESA (200 x 100 mm & 100 x 100 mm) Screen protection Protective, non-reflective glass cover Recommended modalities All digital images, including digital mammography and breast tomosynthesis Certifications FDA 510(K) K151505 for General Radiology K5902079 /11 Coronis Uniti...
  • Page 68 0°C to +35°C (+20°C to +30°C within spec) Storage temperature -20°C to +60°C Operating humidity 20% - 85% (non-condensing) Storage humidity 20% - 85% (non-condensing) Operating pressure 70 kPa minimum Storage pressure 50 to 106 kPa K5902079 /11 Coronis Uniti...
  • Page 70 Barco NV President Kennedypark 35 8500 Kortrijk Belgium K5902079 /11 | 2022-06-03 www.barco.com...
