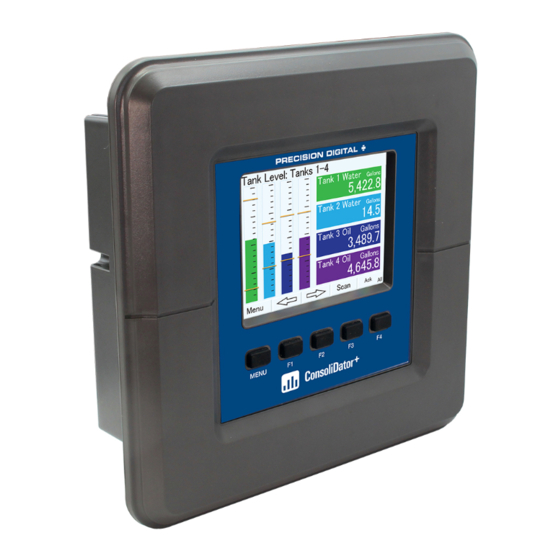

PD9000 ConsoliDator+ Multivariable Controller
Data Logger Excerpts From Instruction Manual
Digital Inputs & Data Logger

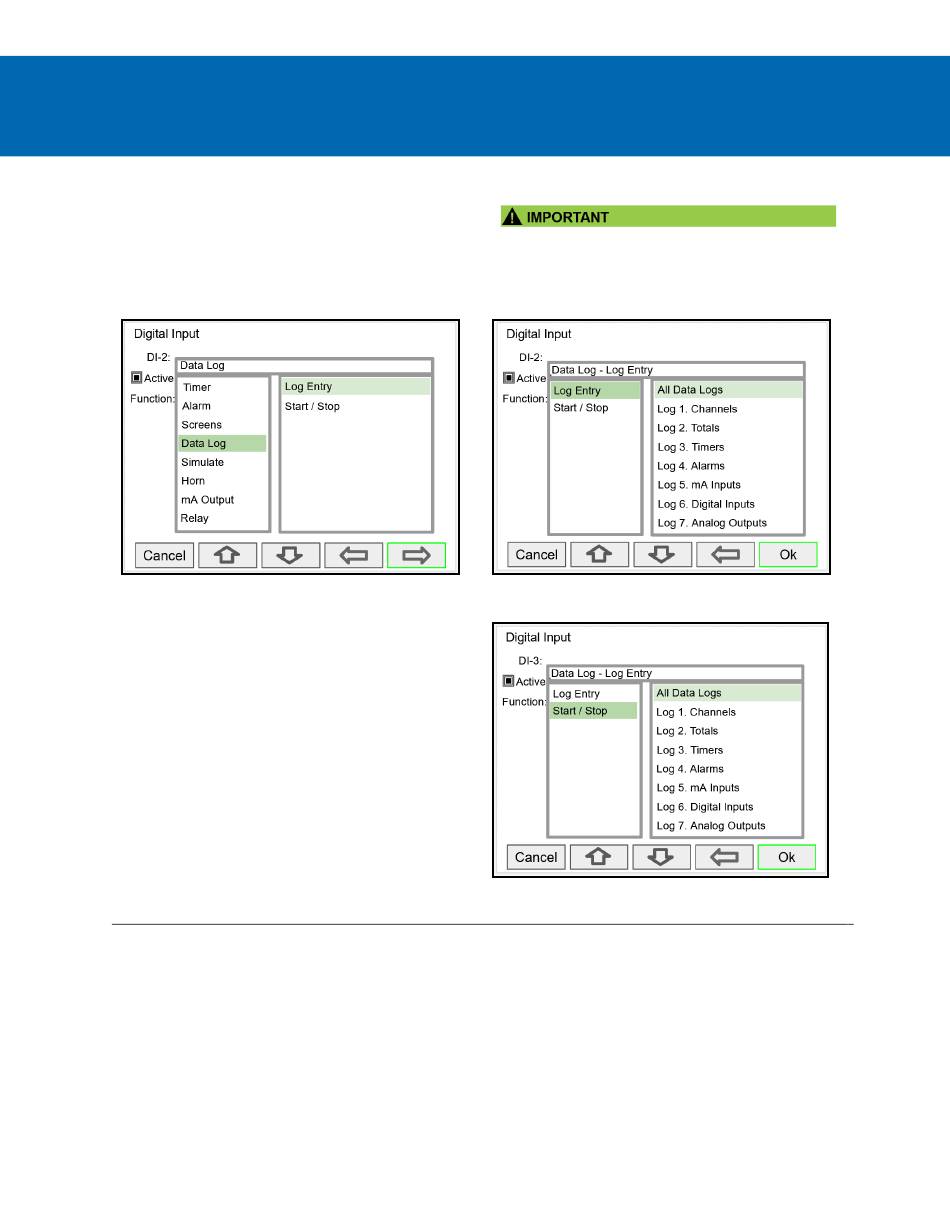

If the Data Logger feature is enabled, a digital input can
be used to start / stop, enable, or to capture a log entry
at any time.
The Data Logger functions are available only if the
•
Add-On feature has been enabled in the System –
General Settings, see Add-On Features on page 6.
Refer to page 2 for Setup Data Logs.
Choose to capture all the data logs or choose any log.
Choose to start / stop all data logs or choose any log.
