PD8-6210/PD8-6310
TM
ProtEX-MaX
Dual-line 6-Digit Batch controllers
coMMon Batch controllEr FEaturEs
•
start / Pause / stop, change Batch with Front
Panel Buttons
•
Display Batch total, rate, Grand total, count
or Preset
•
single or Multi-stage Batch control
(up to 8 relays)
•
automatic overrun correction
•
rate in units per second, Minute, hour, or Day
•
automatic or Manual Batch control
•
low or high Flow alarms while Batching
•
9 Digit Grand total with overflow Feature
•
count up or Down with Each Batch
Precision Digital corPoration
TM
MAX
IECEx
tM
coMMon ProtEX-MaX
MEtEr FEaturEs
•
nEMa 4X, IP65 Front
•
universal 85-265 Vac or 12-24 VDc Input Power
•
Dual-line 6-Digit Display, 0.60" & 0.46"
•
Programmable Displays & Function Keys
•
sunBright Display standard
•
2 or 4 relays + Isolated 4-20 ma output options
•
External 4-relay & Digital I/o Expansion Modules
•
rs-232, & rs-485 serial communications
•
on-Board Digital Input
•
Modbus
®
rtu communication Protocol standard
•
onboard usB and MeterView
software
analoG InPuts
•
0-20 ma, 4-20 ma, 0-5 V, 1-5 V, and ±10 V Inputs
PulsE InPuts
•
Pulse, open collector, nPn, PnP, ttl, switch contact,
sine Wave (coil), square Wave Inputs
Batch control
®
Pro Programming
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation ProtEX-MAX PD8-6210
Summary of Contents for Precision Digital Corporation ProtEX-MAX PD8-6210
- Page 1 Down with Each Batch software analoG InPuts • 0-20 ma, 4-20 ma, 0-5 V, 1-5 V, and ±10 V Inputs PulsE InPuts • Pulse, open collector, nPn, PnP, ttl, switch contact, sine Wave (coil), square Wave Inputs www.predig.com Precision Digital corPoration...

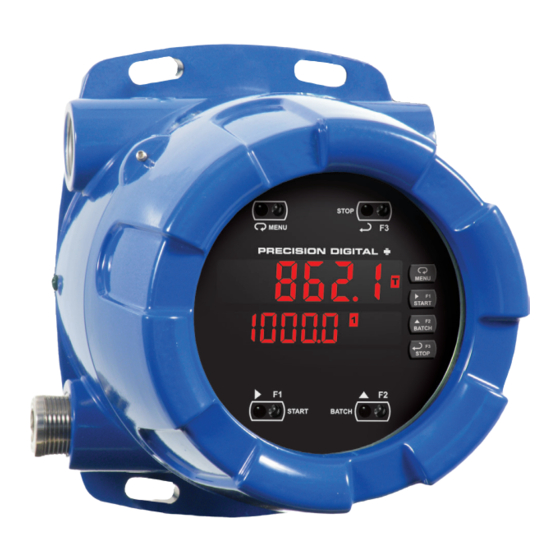

- Page 2 PD8-6210 / PD8-6310 ProtEX-MaX Batch controllers Through-Glass Sunlight Readable IECEx Button Programming Display Mounting Flanges ® SafeTouch (Up to 2½" Pipe) Stop Key or Alarm Acknowledge Button Current Batch Quantity Locking Screw Total Indicator SafeTouch ® Menu Button Explosion-Proof Die-Cast Aluminum NEMA 4X Enclosure Large 0.6"...
- Page 3 PD8-6210 / PD8-6310 ProtEX-MaX Batch controllers coMMon ProtEX-MaX FEaturEs single and Multi-stage Batching The ProtEX-MAX can be used as a single or multi-stage batch ® safetouch Button Programming controller. Relays assigned to the total act as batch control relays, ProtEX-MAX equipped with four...
- Page 4 PD8-6210 / PD8-6310 ProtEX-MaX Batch controllers outPuts Four types of Password Protection The ProtEX-MAX offers 4 types of password protection. Level 1 relay outputs protection allows the operator use of only the 3 pre-configured The ProtEX-MAX has up to four 3 A Form C relays (SPDT) with function keys on the front panel without a password.
- Page 5 PD8-6210 / PD8-6310 ProtEX-MaX Batch controllers Manual MultI-staGE Batch control oPEratIon system setup Both valves are closed with an empty barrel in place. The batched total is displayed in the upper display, the preset is selected for the lower display. Batch start The START button is pressed.
- Page 6 Password: Three programmable passwords restrict modification of Configure, monitor, and datalog a ProtEX-MAX PD8-6210 or programmed settings and two prevent resetting the totals. PD8-6310 from a PC using MeterView Pro Software (available via...
- Page 7 PD8-6210 / PD8-6310 ProtEX-MaX Batch controllers Max Power Dissipation: Maximum power dissipation limited to 15.1 W. calibration range: Input 1 signal may be set anywhere in the range of See PD8-6210/6310 instruction manual for additional details. the controller; input 2 signal may be set anywhere above setting. connections: Removable screw terminal blocks accept 12 to 22 AWG wire, Filter: Programmable contact de-bounce filter, 40 to 999 Hz maximum RJ45 for external relays, digital I/O, and serial communication adapters.
- Page 8 Corporation makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. *T6 = -40°C to +60°C ©2016 Precision Digital Corporation. All rights reserved. *T5 = -40°C to +65°C Certificate Number: IECEx SIR 12.0073...
