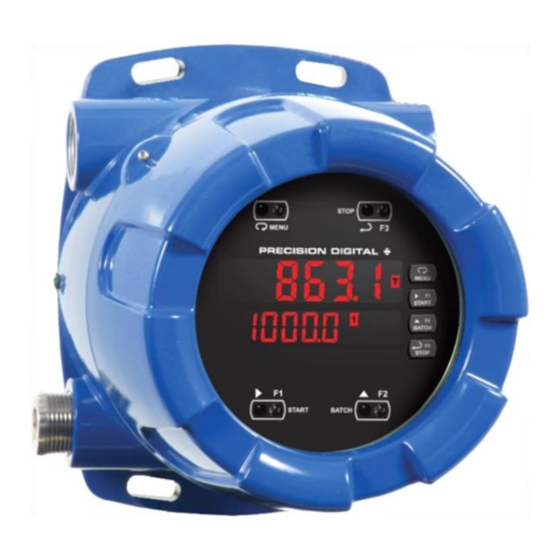

Precision Digital Corporation ProtEX-MAX PD8-6310 Instruction Manual

Explosion-proof pulse input batch controller
Hide thumbs Also See for ProtEX-MAX PD8-6310:
Table of Contents

Advertisement

Quick Links

Download this manual
PD8-6310 Explosion-Proof Pulse Input Batch Controller
Instruction Manual
•
Fully-Approved Explosion-Proof Batch Controllers
•
Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave Inputs
•
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm)
•
SafeTouch Through-Glass Button Programming
•
Display Mountable at 0°, 90°, 180°, & 270°
•
Isolated 5, 10 or 24 VDC Flowmeter Power Supply
•
Gate Function for Rate Display of Slow Pulse Rates
•
4 Relays with Interlocking Capability + Isolated 4-20 mA Output
•
Free PC-Based, On-Board, MeterView Pro USB Programming Software
•
SunBright Display Standard Feature; Great for Outdoor Applications
•
Start / Pause / Stop, Change Batch with Front Panel Buttons
•
Display Batch Total, Rate, Grand Total, Count or Preset
•
Single or Multi-Stage Batch Control (Up to 4 Relays)
•
Front Panel or Remote Total Reset
•
Automatic Overrun Correction
•
Automatic or Manual Batch Control
•
Low or High Flow Alarms while Batching
•
K-Factor, Internal Scaling, or External Calibration
•
Operating Temperature Range: -40 to 60°C (-40 to 140°F)
•
FM Approved as Explosion-Proof / Dust-Ignition-Proof / Flame-Proof
•
CSA Certified as Explosion-Proof / Dust-Ignition-Proof / Flame-Proof
•
ATEX and IECEx Certified as Flame-Proof
•
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
•
Programmable Display, Function Keys & Digital Inputs
•
Flanges for Wall or Pipe Mounting
•
Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum Enclosure
•
On-Board RS-485 Serial Communications
•
Modbus RTU Communication Protocol Standard
•
Password Protection
•
Four 3/4" NPT Threaded Conduit Openings (Two Plugs Installed)
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
MeterView Pro
USB Install

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProtEX-MAX PD8-6310 and is the answer not in the manual?

Questions and answers

Related Manuals for Precision Digital Corporation ProtEX-MAX PD8-6310

Summary of Contents for Precision Digital Corporation ProtEX-MAX PD8-6310

  • Page 1 Modbus RTU Communication Protocol Standard • Password Protection • Four 3/4" NPT Threaded Conduit Openings (Two Plugs Installed) • 3-Year Warranty PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
  • Page 3 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Disclaimer FREE MeterView Pro The information contained in this document is Programming Software subject to change without notice. Precision Digital makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.

  • Page 4: Table Of Contents

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Table of Contents Introduction ......................7 Ordering Information ..................7 Key Features ....................... 9 Specifications ....................14 General ......................14 Batch Controller Rate/Totalizer Display ............. 15 Pulse Inputs ....................16 Relays ......................16 USB Connection ...................
  • Page 5 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Relay Operation (relay) ............41 Relay Assignment (Assign) ............... 42 Setting the Relay Action ................43 Setting Batch Control Relays ..............43 Programming Alarm Set and Reset Points..........43 Setting Fail-Safe Operation ................
  • Page 6 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Table of Figures Figure 1. Enclosure Dimensions – Front View ..........20 Figure 2. Enclosure Dimensions – Side Cross Section View ....... 20 Figure 3. Flowmeter Supply Voltage Selection ..........23 Figure 4.

  • Page 7: Introduction

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Introduction Ordering Information The PD8-6310 ProtEX-MAX is an explosion-proof, 85-265 VAC Models pulse input batch controller ideal for simplifying Model Standard Features independent batch control operations where local 4 relays, 4-20 mA output,...
  • Page 8 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual MeterView Pro USB Programming Helpful Videos Software There are several videos that will help you get a Learn how easy it is to program a P PD6000 better understating of the features and functionality of process meter.

  • Page 9: Key Features

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Key Features Connections for PD8-6310-6H7 & PD8-6310-7H7 The Only Explosion-Proof Batch Controller You Will Ever Need The ProtEX-MAX PD8-6310 is an explosion-proof The PD8-6310 is approved as a complete product by...
  • Page 10 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Easy Programming Methods Advanced Display Features The ProtEX-MAX can be programmed in a hazardous Display What You Want area with the through-glass SafeTouch buttons The most common setup for these batch controllers is...
  • Page 11 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Quick Preset Changes Batch Controller Capabilities The front panel BATCH key is configured by default to A ProtEX-MAX batch controller can be programmed access the preset menu. The preset may be changed...
  • Page 12 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Physical Features Wide Viewing Angle Customers can’t always look at the display from The ProtEX-MAX is designed for ease-of-use in safe straight on, so the window and display module have and hazardous applications. The ProtEX-MAX is...
  • Page 13 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Rotatable Display Removable Screw Terminals The ProtEX-MAX rotatable display, along with four Industrial applications require screw terminal available conduit connections, provide for numerous connections for easy field wiring, and the installation options. The display can be rotated in 90°...

  • Page 14: Specifications

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Specifications Power 85-265 VAC 50/60 Hz; 90-265 VDC, 20 W max; Options 12-24 VDC, 12-24 VAC, 15 W max. Powered over USB for configuration only. Except where noted all specifications apply to operation at +25°C.

  • Page 15: Batch Controller Rate/Totalizer Display

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Batch Controller Rate/Totalizer Automatic Adjusts the closing of the batch control Overrun relays to compensate for inaccuracies from Display Correction batch to batch. The overrun correction feature is capable of compensating for...

  • Page 16: Pulse Inputs

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Pulse Inputs Relays Inputs Field selectable: Pulse or square wave Rating 4 SPDT (Form C) internal rated 0-5 V, 0-12 V, or 0-24 V @ 30 kHz; TTL; 3 A @ 30 VDC and 125/250 VAC resistive open collector 4.7 k...

  • Page 17: Isolated 4-20 Ma Transmitter Output

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Isolated 4-20 mA Transmitter Digital Input (F4) Output Function Start/Stop batch, remote operation of front-panel buttons, acknowledge/reset Output Rate/process, total, grand total, max, min, relays, reset max/min values. See Function set points 1-4, Modbus register, or manual Source Keys &...

  • Page 18: Compliance Information

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Compliance Information Product Ratings and Approvals Enclosure: Type 4X; IP66 Electromagnetic Compatibility Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Emissions EN 55022...

  • Page 19: Eu Declaration Of Conformity

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual EU Declaration of Pre-Installed Conduit Plugs Conformity The ProtEX-MAX is supplied with two pre-installed conduit plugs for installations that do not require the EU Declaration of Conformity is available in the use of all four conduit entries.

  • Page 20: Mounting

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Mounting Wall Mounting Instructions The ProtEX-MAX has four slotted mounting flanges The controller can be mounted to any wall or flat that may be used for pipe mounting or wall mounting.
  • Page 21 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Pipe Mounting Instructions Vertical Pipe Mounting Horizontal Pipe Mounting The controller can also be mounted to a pipe using an optional U-Bolt kit. This kit includes two U-bolts, the necessary hardware, and is available in zinc plated...

  • Page 22: Installation Overview

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Once the driver is installed, an AutoPlay Installation Overview dialog should appear for the drive We recommend the following sequence for getting the “MAINSTAL.” Click “Open folder to view controller into service: files.”...

  • Page 23: Controller Supply Voltage Selection (P+, P-)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual To access the connectors, remove the enclosure Controller Supply Voltage cover and unscrew the two captive screws that fasten Selection (P+, P-) the electronics module. Signal connections are made to de-pluggable connectors on the back of the All controllers, including models equipped with electronics module.

  • Page 24: Pro Vu U Electronics Module Layout

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Electronics Module Layout for PD8-6310-6H7 and PD8-6310-7H7 Figure 5. P Electronics Module Layout USB Connection Figure 6. USB Connection • DO NOT disconnect the RJ45 M-LINK connector cable. Otherwise the instrument will not function properly.

  • Page 25: Power Connections

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Power Connections Power connections are made to a two-terminal connector labeled POWER. The controller will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power.

  • Page 26: Pulse Signal Connections

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Pulse Signal Connections +5 V 4.7 k-ohm INPUT SIGNAL Signal connections are made to a six-terminal Internal pull-up S+ S- connector labeled SIGNAL. The COM (common) PNP NPN terminal is the return for the input signals.

  • Page 27: Relay Connections

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Relay Connections Switching Inductive Loads Relay connections are made to two six-terminal The use of suppressors (snubbers) is strongly connectors labeled RELAY1 – RELAY4. Each relay’s recommended when switching inductive loads to prevent disrupting the microprocessor’s operation.

  • Page 28: Rs-485 Connections

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual RS-485 Connections Digital I/O Connections The RS-485 connections are made to a five terminal connector used for Modbus RTU serial communications. The ProtEX-MAX has a 10-position terminal block for The RS-485 terminals include Transmit Data (DO) connecting digital inputs and outputs.

  • Page 29: 4-20 Ma Output Connections

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual 4-20 mA Output Connections Remote Programming The controller can be operated via the programming Connections for the 4-20 mA transmitter output are buttons or a remote control station* with required made to the connector terminals labeled MA OUT.

  • Page 30: Setup And Programming

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setup and Programming The controller may either be scaled (SCALE) without applying an input, calibrated (Cal) by applying an input, or you may use the K-Factor menu to match the batch controller with a flowmeter’s k-factor (pulse/unit of measure).

  • Page 31: Programming Buttons

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Programming Buttons Button Description Button Description BATCH Menu Up Arrow/F2 START STOP Right Arrow/F1 Enter/F3 • Press the Menu button to enter or exit the Programming Mode at any time. •...

  • Page 32: Display Functions And Messages

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Display Functions and Display Functions and Messages Messages Display Parameter Action/Setting Description The controller displays various functions and messages during setup, programming, and operation. GT CF Grand total Program grand total...
  • Page 33 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Display Functions and Messages Display Functions and Messages Display Parameter Action/Setting Display Parameter Action/Setting Description Description RSt 1 nonrst Reset 1 Program reset point 1 Non- Non-resettable grand total set after entering “050873”...

  • Page 34: Main Menu

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Main Menu Setting Numeric Values The main menu consists of the most commonly used The numeric values are set using the Right and Up functions: Setup, Reset, Control, and Password. arrow buttons. Press Right arrow to select next digit •...

  • Page 35: Setting Up The Batch Controller (Setup)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting Up the Batch Controller (setup) The Setup menu is used to select: Input signal the controller will accept Enable or disable totalizer and batching features Select the display units/tags Decimal point position...

  • Page 36: Setting The Input Signal (Input)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Input Signal (Input) Setting the Input Units or Custom Tags (units) There is a switch, located to the right of the input connector, which must be configured according to the Enter the input unit or custom tag that will be input level and type.

  • Page 37: Setting The Decimal Point (Dec Pt)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Decimal Point (dEc pt) Input Calibration Method (InCAL) There are three methods of calibrating (or scaling) the The decimal point may be set with up to five decimal display to show the correct engineering units.
  • Page 38 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Scaling the Controller (SCALE) Time Base, Total Conversion Factor & Total Reset The pulse inputs can be scaled to display the process variable in engineering units. The time base, total conversion factor, and total reset A signal source is not needed to scale the controller;...
  • Page 39 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Batch Start Mode (nmode) Calibrating the Controller with External Source (Cal) Manual Batch Control The batch controller may operate in manual or The controller can be calibrated to display the process automatic mode.

  • Page 40: Setting The Display Parameter & Intensity (Dsplay)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Display Parameter & Display Menu Intensity (dsplay) Display line 1 (line 1) can be programmed to display: Display total Display grand total Toggle rate and total Toggle rate and grand total...

  • Page 41: Setting The Relay Operation (Relay)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Relay Operation (relay) This menu is used to set up the operation of the relays. • During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu.

  • Page 42: Relay Assignment (Assign)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Relay Assignment (Assign) The relays can be assigned to any of the following parameters: Rate for low or high alarm indication Total for batch control relays Grand total for alarm indication or sampling •...

  • Page 43: Setting The Relay Action

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setting the Relay Action Programming Alarm Set and Reset Points Operation of the relays is programmed in the Action menu. The relays are commonly set up for any of the High alarm: program set point above reset point.

  • Page 44: Automatic Batch Control Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Automatic Batch Control Operation The following graph shows automatic batch operation. When START is pressed, a short delay occurs before the low flow alarm sensing is activated. Each relay can be programmed with additional ON delay to satisfy various conditions and applications.

  • Page 45: Relay And Alarm Operation Diagrams

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual High Alarm with Fail-Safe Relay and Alarm Operation Operation (Set > Reset) Diagrams The following graphs illustrate the operation of the relays, status LEDs, and ACK button. High Alarm Operation (Set > Reset) Note: Relay coil is energized in non-alarm condition.

  • Page 46: Time Delay Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Time Delay Operation Total Relay Sampling Operation The following graphs show the operation of the time Total Preset = 100 delay function. Sample Sample Sample Time Time Time Relay When the total reaches the preset, the relay trips and the sample time starts.

  • Page 47: Relay Operation Details

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Front Panel LEDs Relay Operation Details The alarm status LEDs on the front panel are Overview available on all controllers and provide status The relays of the controller can serve three roles, as...

  • Page 48: Sample Relay Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Sample Relay Operation Setting Up the Interlock Relay (Force On) Feature The sampling function allows the operator to set a set point for a “sampling” relay. This can be done for the Relays 1-4 can be set up as interlock relays.

  • Page 49: Scaling The 4-20 Ma Analog Output (Aout)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Scaling the 4-20 mA Analog Reset Menu (reset) Output (Aout) The Reset menu is used to reset the total, grand totals, batch count, maximum, or minimum reading The 4-20 mA analog output can be scaled to provide (peak or valley) reached by the process;...

  • Page 50: Setting Up The Password (Pass)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Making Changes to a Password Setting Up the Password (pass) Protected Controller The Password menu is used for programming three levels of security to prevent unauthorized changes to If the controller is password protected, the controller...

  • Page 51: Controller Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Controller Operation SafeTouch Buttons The ProtEX-MAX is equipped with four sensors that When installed, the primary way to operate the operate as through-glass buttons so that it can be controller is with the SafeTouch through-glass buttons...

  • Page 52: Default Batch Control Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Default Batch Control Operation Batch Control Operation Example The following describes the operation of the three front panel operating keys as programmed with The following example shows how two-stage batch default settings.

  • Page 53: Manual Batch Control

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Completed Batch Manual Batch Control When the batch is complete, the restricted-flow The manual batch control feature is used for batch valve closes. If overrun occurs, then the next processes where each batch must be started by the batch will adjust for this offset amount to operator.

  • Page 54: Automatic Batch Control

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Additional Features Automatic Batch Control Pause Batch The automatic batch control feature is used for batch processes where the batch size does not change, or the operator wants the next batch to start automatically after the previous batch is complete.
  • Page 55 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Completed Batch Automatic Batch Control When the batch is complete, the restricted-flow Operation valve closes. If overrun occurs, then the next batch will adjust for this offset amount to System Setup maintain accuracy.

  • Page 56: Setup With Meterview Pro

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Setup with MeterView Pro Use MeterView Pro software to set up the batch controller for manual or automatic batch control, count up or count down operation, and set the batch preset and pre-close values.

  • Page 57: Advanced Setup & Programming

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Advanced Setup & Advanced Features Menu & Display Messages Programming Display Parameter Action/Setting seriAl Set serial communication Serial In addition to the functions described in Controller parameters Operation on page 51, the following advanced...

  • Page 58: Function Keys Operation

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Function Keys Operation Advanced Features Menu & Display Messages During operation, the programmable function keys Display Parameter Action/Setting operate according to the way they have been user Assign function keys and User I/O programmed in the Advanced Features –...

  • Page 59: Advanced Setup And Calibration

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Advanced Setup and Calibration Rounding Feature (round) The rounding feature is used to give the user a Multi-Point Calibration & Scaling steadier display with fluctuating signals. Rounding is The controller is set up at the factory for 2-point linear used in addition to the filter function.

  • Page 60: Select Menu (Select)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Select Menu (SElEct) Low-Flow Cutoff (CutofF) The low-flow cutoff feature allows the controller to be The Select menu is used to select the signal programmed so that it always displays zero at very conditioner applied to the input (linear), low-flow low flow rates.
  • Page 61 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Analog Output Source Analog Output Calibration To perform the analog output calibration, it’s The source for generating the 4-20 mA output may be assigned to the rate/process variable, total, grand recommended to use a milliamp meter with a total, maximum or minimum value reached by the resolution of at least 0.1 µA to measure the output...

  • Page 62: Programmable Function Keys User Menu (User)

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Programmable Function Keys Display Description Contrl User Menu (user) Directly access the manual control menu disabl Disable the selected function key or • digital I/O Changing the programming of the F1-F3 function...

  • Page 63: Troubleshooting

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Troubleshooting Reset Controller to Factory Defaults Due to the many features and functions of the controller, it’s possible that the setup of the controller When the parameters have been changed in a way does not agree with what an operator expects to see.

  • Page 64: Factory Defaults & User Settings

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Factory Defaults & User Settings Factory Defaults & User Settings The following table shows the factory setting for the Parameter Display Default Setting major programmable parameters on the controller. Fls 3 Fail-safe relay 3 Factory Defaults &...

  • Page 65: Troubleshooting Tips

    ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Troubleshooting Tips This controller is a highly sophisticated instrument with an extensive list of features and capabilities. If the programming buttons are used to program the controller, it may be a difficult task to keep everything straight. That is...
  • Page 66 ProtEX-MAX PD8-6310 Explosion-Proof Pulse Input Batch Controller Instruction Manual Troubleshooting Tips Symptom Check/Action Cannot access main menu You cannot access the main menu when a batch is running. Make sure the batch has stopped before trying to access the main menu.
  • Page 68 ProtEX-MAX PD8-6310 Pulse Input Batch Controller Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com...
