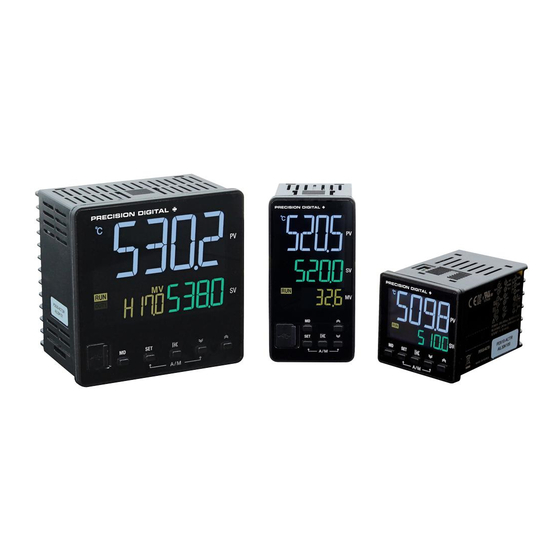

PD500
SuperNova PID Process & Temperature Controllers
•
1/16, 1/8 (V), and 1/4 DIN Auto-Tuning PID Process & Temperature Controllers
•
Reverse Polarity Three-Color LCD: -1999 to 9999
•
Thermocouple and RTD Inputs
•
DC Voltage and Current Inputs (1-5 V, 0-5 V, 0-10 V, 0-50 mV, 0-100 mV; 4-20 mA with Resistor)
•
250 Ω Resistor(s) Included Standard
•
High Accuracy Auto-Tuning PID
•
High Durability IP65 Front with Hard Plastic Pushbuttons
•
Large Easy to Read 14-Segment PV Display up to 1.1" (29 mm)
•
Input Power 100-240 VAC
•
Heating, Cooling, and Heating & Cooling Control
•
Primary Control Output Options: 4-20 mA (SCR), Voltage Pulse (SSR), or Relay
•
Secondary Control Output Relay Standard on All Models
•
Easily Switch Between Auto and Manual Control Modes
•
Up to 2 Alarm Relays & 4-20 mA Retransmit Outputs
•
Remote Set Value 1-5 V Input Option (4-20 mA with External Resistor)
•
Digital Input Set Value Selection
•
RS-485 Serial Communications Option
•
Modbus® RTU/ASCII Communications
•
Mini-USB Port Standard
•
FREE Programming and Monitoring Software
•
Shallow Depth Case Extends Only 2.5" (63 mm) Behind Panel
•
UL & C-UL Recognized Process Control Equipment, Electrical - Component
PRECISION DIGITAL CORPORATION
PD530
PD520
PID PROCESS & TEMPERATURE
PD510
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation PD500
Summary of Contents for Precision Digital Corporation PD500
- Page 1 • Modbus® RTU/ASCII Communications • Mini-USB Port Standard • FREE Programming and Monitoring Software • Shallow Depth Case Extends Only 2.5" (63 mm) Behind Panel • UL & C-UL Recognized Process Control Equipment, Electrical - Component www.predig.com PRECISION DIGITAL CORPORATION...
-
Page 2: Table Of Contents
PD500 SuperNova PID Process & Temperature Controllers TABLE OF CONTENTS OVERVIEW EASY TO READ & OPERATE QUICK SETUP & PROGRAMMING PROCESS & TEMPERATURE INPUTS VERSATILE OPERATION SUPERNOVA TCS SOFTWARE NEMA 4 & 4X FIELD ENCLOSURES DIMENSIONS CONNECTIONS SPECIFICATIONS ORDERING INFORMATION... -
Page 3: Overview
OVERVIEW The Only PID Process & Temperature Controller You Will Ever Need The SuperNova PD500 Series of PID Process & Temperature The main control outputs can be a 4-20 mA (SCR), voltage Controllers are a complete line of PID and on/off controllers. -
Page 4: Easy To Read & Operate
PD500 SuperNova PID Process & Temperature Controllers EASY TO READ & OPERATE Setup Group Menus For easy setup parameter navigation, all parameters are The SuperNova PD510 digital controller has two lines with four- grouped by category. To access the group menus, press and digits each of white &... -
Page 5: Process & Temperature Inputs
All PD500 Series controllers have two SPST alarm relays. These alarm relays can be used for a variety of alarm and Menu Programming: control functions and include a number of useful features. Use buttons to change parameter value. - Page 6 PD500 SuperNova PID Process & Temperature Controllers Analog Retransmit Output Digital Input Set Point Selection An optional 4-20 mA retransmitting output is available on all Two digital inputs can be added as an optional feature. Digital sizes of SuperNova Controllers.
-
Page 7: Supernova Tcs Software
31 units, connected. .bmp, .gif, .jpeg, or .png. Data tables may also be exported as .csv. Refer to the PD500 Series Instruction USB Powered: USB port provides power to the controller Manual for installation and programming for programming. Apply normal power for general controller for the SuperNova TCS Software. -
Page 8: Nema 4 & 4X Field Enclosures
PD500 SuperNova PID Process & Temperature Controllers NEMA 4 & 4X FIELD ENCLOSURES PDA2800 Series (Covers with screws) This is Precision Digital’s low cost NEMA 4X plastic line of Precision Digital offers a variety of rugged enclosures enclosures for the SuperNova. The controller mounts through that provide a high degree of protection against harsh the front cover with four screws. - Page 9 PD500 SuperNova PID Process & Temperature Controllers ENCLOSURES CONTINUED Stainless Steel Enclosures Steel Enclosures (Externally Mounted) (Externally Mounted) PDA2600 Series (Covers with Hinge & Latch) PDA2700 Series (Covers with Hinge & Latch) This is Precision Digital’s stainless steel line of enclosures for This is Precision Digital’s painted steel line of enclosures...
-
Page 10: Dimensions
PD500 SuperNova PID Process & Temperature Controllers DIMENSIONS Controller Dimensions Units: in (mm) Dimension PD510 PD520 PD530 1.9 (48.0) 1.9 (48.0) 3.8 (96.0) 1.9 (48.0) 3.8 (96.0) 3.8 (96.0) 2.5 (63.0) 2.5 (63.0) 2.5 (63.0) 0.2 (5.0) 0.2 (5.0) 0.2 (5.0) Panel Mounting •... -
Page 11: Connections
PD500 SuperNova PID Process & Temperature Controllers CONNECTIONS PD510-A or -S (1/16 DIN) PD520-A or -S (1/8 DIN) & PD530-A or -S (1/4 DIN) A(+) A (+) SUB1 D I 1 OUT1 RS485 OUT1 RS485 B(-) SUB2 B(-) D I 2... -
Page 12: Specifications
PD500 SuperNova PID Process & Temperature Controllers Process Inputs SPECIFICATIONS Process Input Selection: Voltage or current (with included external Except where noted all specifications apply to operation at +25°C. resistor) Process Input: 1-5 V (4-20 mA), 0-5 V, 0-10 V, 0-50 mV, 0-100 mV General External 250 Ω... - Page 13 PD500 SuperNova PID Process & Temperature Controllers Temperature Inputs Control Outputs Temperature Input Selection: Field programmable for Control Outputs: Each controller has a main control output and thermocouple or RTD a secondary control relay output for two directions of control. The Thermocouple Type: K, J, E, T, R, B, S, L, N, U, W, PLII secondary control relay output is always used for On/Off operation.
- Page 14 PD500 SuperNova PID Process & Temperature Controllers USB Connection SuperNova TCS Software Function: SuperNova software connection only Availability: Download directly from Location: PD510: Top, behind panel www.predig.com/download_software PD520 & PD530: Front mounted behind rubber seal, accessible from Operating System Requirements: Microsoft® Windows® 7/8/10...
-
Page 15: Ordering Information
PD500 SuperNova PID Process & Temperature Controllers ORDERING INFORMATION Model Main Control Output Additional Features Power PD510 1/16 DIN Controllers PD510-A 4-20 mA (SCR) Relay Control Output, 2 Alarm Relays 100-240 VAC PD510-A-CD 4-20 mA (SCR) Relay Control Output, 2 Alarm Relays, RS-485, 2 Digital Inputs... - Page 16 PD500 SuperNova PID Process & Temperature Controllers Model Model Number Digits Description PID Process & Temperature Controller (1/16 DIN) 1.9" x 1.9"x 2.5" (48 x 48 x 63 mm) (W x H x D) Size (1/8 DIN) 3.8" x 1.9" x 2.5" (48 x 96 x 63 mm) (W x H x D) (1/4 DIN) 3.8"...
- Page 17 PDA2700** Painted Steel NEMA 4 See Warranty Information and Terms & Conditions on www.predig.com for complete details. ©2021 Precision Digital Corporation. All rights reserved. * See LDS2600 data sheet for details.
