Communication Ports

The RUGGEDCOM RSG2300P can be equipped with various types of communication
ports to enhance its abilities and performance.
Module Assignment

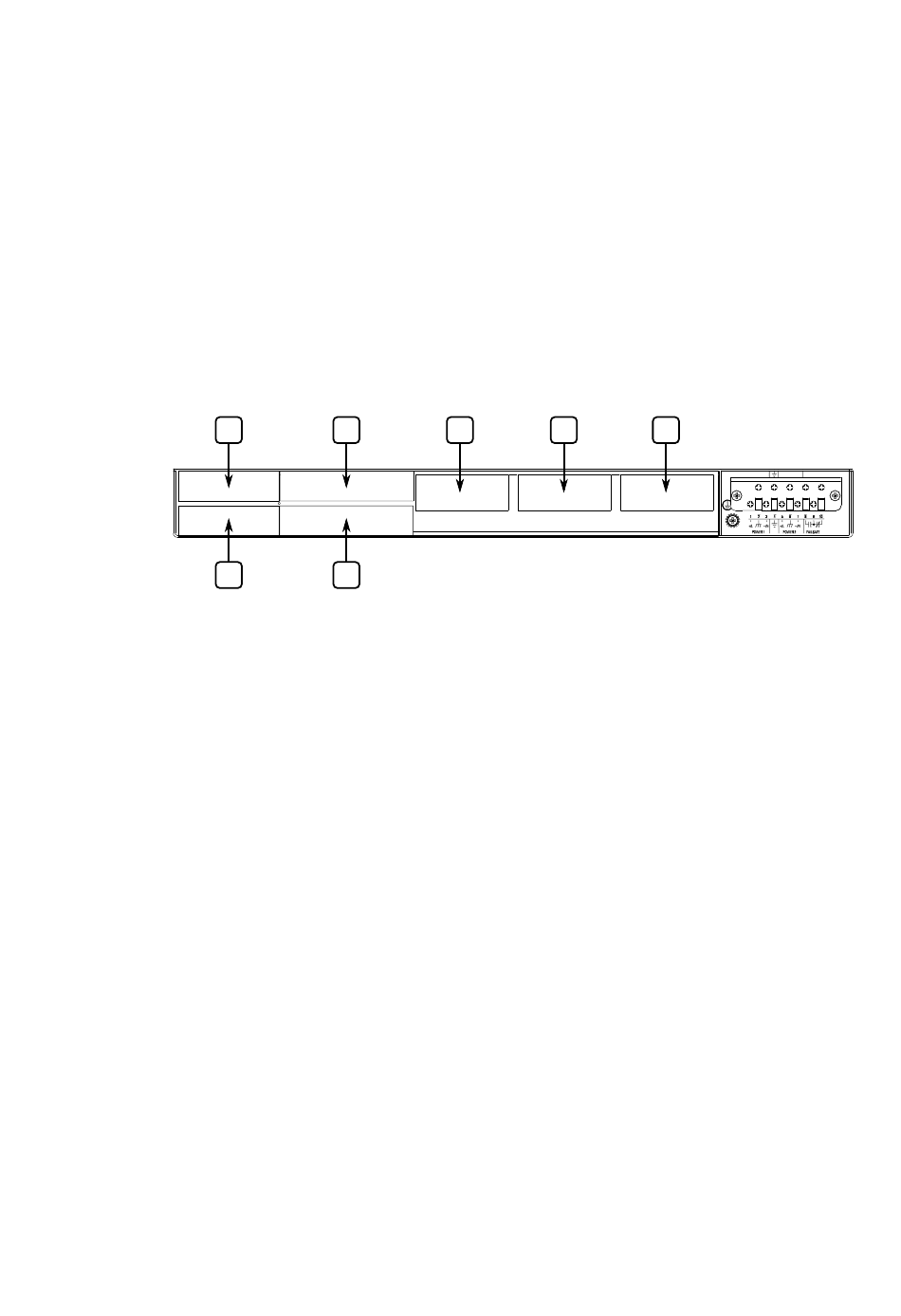

Figure 4.1
Each type of module has a specific location in the RUGGEDCOM RSG2300P chassis:
•
•
•
•
The exact configuration of the device can be determined by reading the factory
data file through the RUGGEDCOM RSG2300P user interface. For more information
about how to read the factory data file, refer to the "RUGGEDCOMROS Configuration
Manual" for the RUGGEDCOM RSG2300P.
Port LEDs
Each communication port is equipped with an LED that indicates the link/activity
state of the port.
RUGGEDCOM RSG2300P
Installation Manual, 04/2022, C79000-G8976-1047-18
1 3
2 4
Module Assignment
Slot 1 supports a two-port fiber or copper module, or an additional two-port
10/100Base-TX 802.3af (PoE) module for extra PoE ports
Slot 2 houses a standard two-port 10/100Base-TX 802.3af (PoE) module
Slots 3 and 4 support any combination of two-port Gigabit Ethernet (1 Gbps)
ports
Slots 5, 6 and 7 house 8-port 10/100TX copper RJ45 Ethernet ports, totaling 24
ports
5 6
4
7
23
