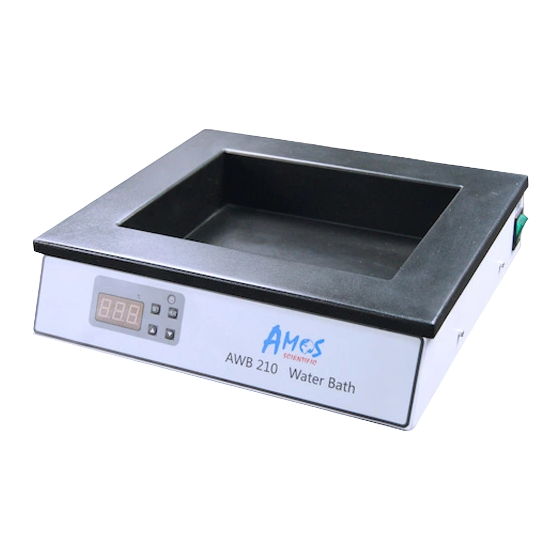

- Page 1 AWB210 (AMOSAWB210SM20140309) Water Bath Service Manual AMOS SCIENTIFIC PTY.LTD. ABN37 159 778 140 www.amos-scientific.com...
- Page 3 AWB 210 Water Bath Service Manual 1： General Provisions The Service Manual of the instrument is compiled according to its structure and characteristic. 2： Configuration The instrument provides the design of AC110V/ 220V, water tub heating and temperature controlling system Exploded View 3：...
- Page 4 take down the power source module from the main board by hand，if it is difficult to take down the power source module with hand，you can use the flat apparatus as slotted screwdriver to take down the power source module by inserting the flat apparatus in the slot and tipping it up slightly, and then take it down and replace a new power source module.
- Page 5 Power source module Solid state relay Inside Schematic diagram Heating film Digital sensor D、The machine is unable to heating after power on . 1） ：heating film is damaged Maintenance ：Loosen the six screws in the base-board with the philip screwdriver, take down the base-board and you will see the heating film as it showed in the picture.
- Page 6 Wiring Diagram J-Heat 220V/110V P=330W Heater 110V/220V---5A AWB 210 Water Bath AMOSAWB210SM20140309 ---4---...
- Page 7 Schematic Diagram AWB 210 Water Bath AMOSAWB210SM20140309 ---5---...
- Page 8 Published by: AMOS SCIENTIFIC PTY.LTD 37/632 CLAYTON ROAD , CLAYTON SOUTH VIC 3169 , AUSTRALIA Tel: +61-3-95518850 Fax: +61-3-95516885 ABN 37 159 778 140 www.amos-scientific.com...
