Summary of Contents for Amos ASS190

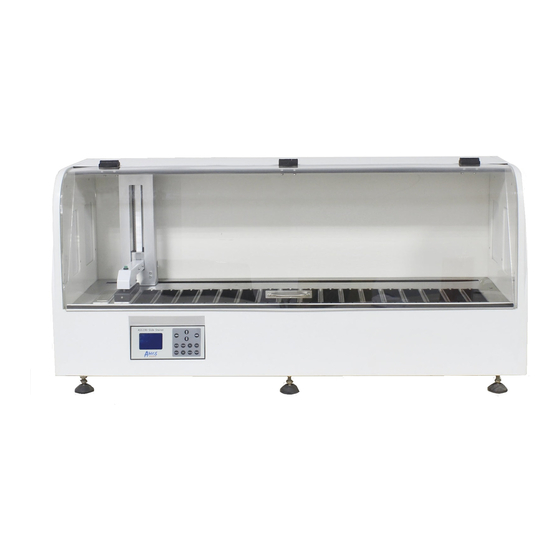

- Page 1 ASS190 （ver：AMOSASS190SM20150814-01） Slide Stainer Service Manual AMOS SCIENTIFIC PTY.LTD. ABN:37 159 778 140 www.amos-scientific.com...
-
Page 2: Table Of Contents
Contents 1. General Provisions…………………………………….…….. 1 2. Configuration………...………………………………………...1 3. Distribution of Liquid Tank…………………………….…..1 …………………………………..…………..…2 Exploded View 5. Trouble Shooting ………………………………………….….3 6. Schematic Diagram ..……………………………….……..8 7. Wiring Diagram………………………….…….…….…..…9... -
Page 3: General Provisions
ASS190 Slide Stainer Service Manual 1： General Provisions The Service Manual of the instrument is compiled according to its structure and characteristic. 2： Configuration The instrument provides the design of AC110V/220V, composes of tank, temperature controlling and engine movement. 1、Tank 1）... -
Page 4: Exploded View
3) Water tank 4) Display and push button 5) Organic glass cover 6) Back cover plate 7) Activated carbon 8) Switch and power socket 9) Filter 10) Power switch 11) Control board & Driver 12) Housing ASS190 Slide Stainer ---2--- AMOSASS190SM20150814-01... -
Page 5: Troubleshooting
4） ：Flat Cable(F/C) plug is loose( Refer to below Pic.) . Tests each F/C plug whether to fixed or not: Please pulls out each plug and re-insert them, then pulls each wire on F/C plug gently by hand. If looseness, please fix them again with screwdriver. ASS190 Slide Stainer AMOSASS190SM20150814-01 ---3---... - Page 6 1） ： Stepper Motor driver is damaged or the related wire is disconnection (As shown on Pic.) Solution : Test if the wire connecting between motor and driver , main board and driver is disconnection , clear this kind of trouble and then check if anything wrong with the driver . ASS190 Slide Stainer ---4--- AMOSASS190SM20150814-01...
- Page 7 3. The basket can’t stop move up or down , and makes intense vibration sound . The up limit switch or down limit switch fixed on transmission block body is broken , don’t make limited effect . Please replace a new one . Limit switch ASS190 Slide Stainer AMOSASS190SM20150814-01 ---5---...
- Page 8 It is failure with the wiring of supply electrovalve. Solution : Check the wiring Supply with multimeter and clear the trouble . electrovalve c. The supply electrovalve is damaged . Solution: replace a new one . ASS190 Slide Stainer ---6--- AMOSASS190SM20150814-01...
- Page 9 When the speed of input water is faster than drainage , the water in the tank can be accumulation : a : Water pressure is too small . Solution : increase water pressure b: The drainage hole is too large . Solution : reduce the size of drainage hole . Outlet Inlet ASS190 Slide Stainer ---7--- AMOSASS190SM20150814-01...
-
Page 10: Schematic Diagram
Schematic Diagram Schematic diagram ASS190 Slide Stainer ---8--- AMOSASS190SM20150814-01... -
Page 11: Wiring Diagram
Wiring g Diagram iring diag gram ASS190 Slid de Stainer ---9--- MOSASS19 9 0SM20150 0 814-01... - Page 13 AMOS SCIENTIFIC PTY.LTD. 37/632 CLAYTON ROAD , CLAYTON SOUTH VIC 3169 , AUSTRALIA Tel: +61-3-95518850 Fax: +61-3-95516885 ABN 37 159 778 140 www.amos-scientific.com...
