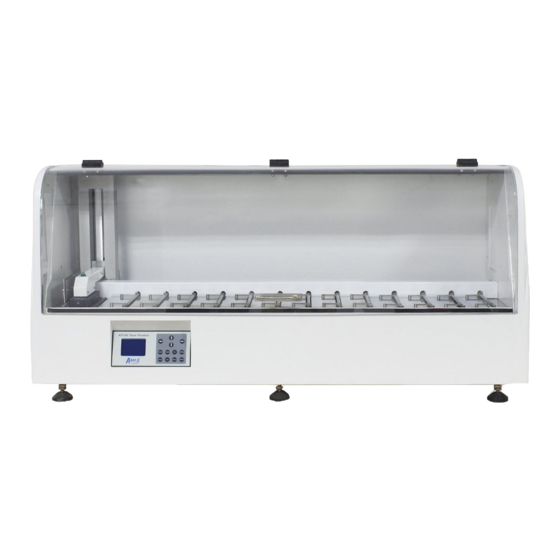

- Page 1 ATP 140 Tissue Processor Operation Manual AMOS SCIENTIFIC PTY.LTD. ABN:37 159 778 140 www.amos-scientific.com...
- Page 3 Foreword Thank you for purchasing our ATP 140 Tissue Processor. Presented in this 《Operation Manual》 are the functions and operation method of the ATP 140 Tissue Processor and the matters needing attention concerning safety. Please carefully read this manual before use so that you can understand its performance better and make full use of the functions.
-
Page 5: Table Of Contents
Contents 1. Safety Matters…………………………………….…….….. 1 2. Application……………………………………….……..…..2 2.1. Technical Parameters and characteristics…...… ..2 2.2. Distribution of Liquid Tank………………….……..4 2.3. Structure Breakdown Diagram…………………………5 3. Operation Guide………………………………………….…6 3.1 Key instruction…………………………………….…….6 3.2 Screen LCD display instruction……………………..….9 3.3 Operation………………………………………………..11 4. Trouble shooting ………………………………………..….13 5. Maintenance ..……………………………….……….…...14 6. -
Page 7: Safety Matters
(1) Open the packing boxes and check the contents to make sure thatthereexistthe product, operation manual, certificate, packing list and accessories. (2) Check the nameplate to make sure that the product is the one you ordered. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... -
Page 8: Application
● Overheating protection: Used temperature control principle. When it is overheating, it will stop heating automatically which can avoid the all problems caused by high temperature in paraffin tank. ● LCD display: all the states are displayed in the LCD screen. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 9 ● Agitation time in each tank: every 15 seconds default and the extent is 5mm, and the 5-30secounds could be adjustable as different required ● Power supply: 220V±10%, 50Hz / 110V±10%, 60Hz ● Fuse: 220V:5A UPS:2A/110V:8A UPS:3A ● Power: 466W ● Outside dimensions(mm):1235X475×590(W*D*H) ● Weight: 70 kgs ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 10: Distribution Of Liquid Tank
Example for programming Tank number 100% 100% Dimethyl Dimethyl Medium formalin formalin paraffin paraffin paraffin paraffin alcohol alcohol alcohol alcohol alcohol alcohol benzene benzene Set time in program 1(minute) Set time in program 2(minute) ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... -
Page 11: Structure Breakdown Diagram
3) Oven type heater 4) Front panel with display LCD 5) Plexiglass glass housing 6) Power switch 7) Power socket 8) Activated Carbon filter 9) Filter 10) Power supply 11) Control Box Rear cover board ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... -
Page 12: Operation Guide
StandbyIt can be activated in Auto or Manualmode，press this key topause running or continue running. But when the instrument is running a procedure, press this key, it can not pause at once and must finish the current procedure and then pause. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 13 15 seconds. The temperature and shaking state will be displayed in the screen, as picture shows: Step ：02 Step ：02 Program 3 Program 3 Tank No.：02 Auto Tank No.：02 Auto Temp：43 Heating：On Temp：45 Heating：On Time：00:03 Time：00:02 Shaking ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
- Page 14 ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 15: Screen Lcd Display Instruction
In Edit programwindows, the operator can set required value by ↑↓ when the icon is flickering and then press program key to set tank no , temperature and time for each step and press ←→ to change step number. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 16 2, tank 2 , the actual temperature is 65℃, and the rest time is one hour and one minute to finish , the heating state is on and the basket is in waiting state. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 17: Operation
Note: Agitation time and Dripping stay time could be selected by Standby . Agitation time be used for the Eight programs(4 groups.) Dripping stay time could be set for each procedure. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 18 If you want to look over the tissue dehydration effect,please press key standby first, and then press manual to enter into manual state and to look over the tissue dehydration effect, after it, pressexitandrun, and the instrument will continue to run previous program. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
- Page 19 (3) Modify the protect tank or delay time value by ↑↓ . Attention: ATP 140 Tissue Processor with two baskets could set two protection tanks and the unit of delay time is hour, the range is 1 to 48 hour. The protection tank and delay time interface is as follows: Safe tank：...
- Page 20 1 and 2 automatically) , please add one more minute to the first step in program 1 that could solve the problems. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 21: Trouble Shooting
Correct it Paraffin would temperature sensor is heated. change a new one broken solid relay is broken change a new one IC is broken change a new one ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... -
Page 22: Maintenance
UPS should be recharged for 6~8 hours. The UPS should be discharged every 6 months (i.e. use the built-in power source for operation for about 10 minutes) to extend the service life of the UPS. The batteries in the ups are maintenance free. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 23 The instrument disconnected with the power supply before operation will cause the storage charge of UPS to use up and damage. It needs to replace with a new UPS. ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 24: Schematic Diagram
Schematic Diagram ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 25 ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
-
Page 26: Wiring Diagram
Wiring Diagram ATP 140 Tissue Processor Ver: AMOSATP140OP20151010... - Page 27 1 set Power cord 2pcs Fuse 4pcs 6pcs grid for small tissue 6 pcs grid for large tissue Basket grid 2 sets 12pcs grid for customer special requirement. Basket 4 pcs 1 pc Operation Manual ATP 140 Tissue Processor Ver: AMOSATP140OP20151010...
- Page 28 Published by: AMOS SCIENTIFIC PTY.LTD. 7 Gabrielle Court,Bayswater North VIC 3153 Melbourne , Australia Tel: +61-410190188 Fax: +61-410190188 ABN 37 159 778 140 www.amos-scientific.com...
