Installation
Instructions
Trakker Antares
2475 Vehicle-Mount
Terminal
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trakker Antares 2475 and is the answer not in the manual?

Questions and answers

Summary of Contents for Intermec Trakker Antares 2475

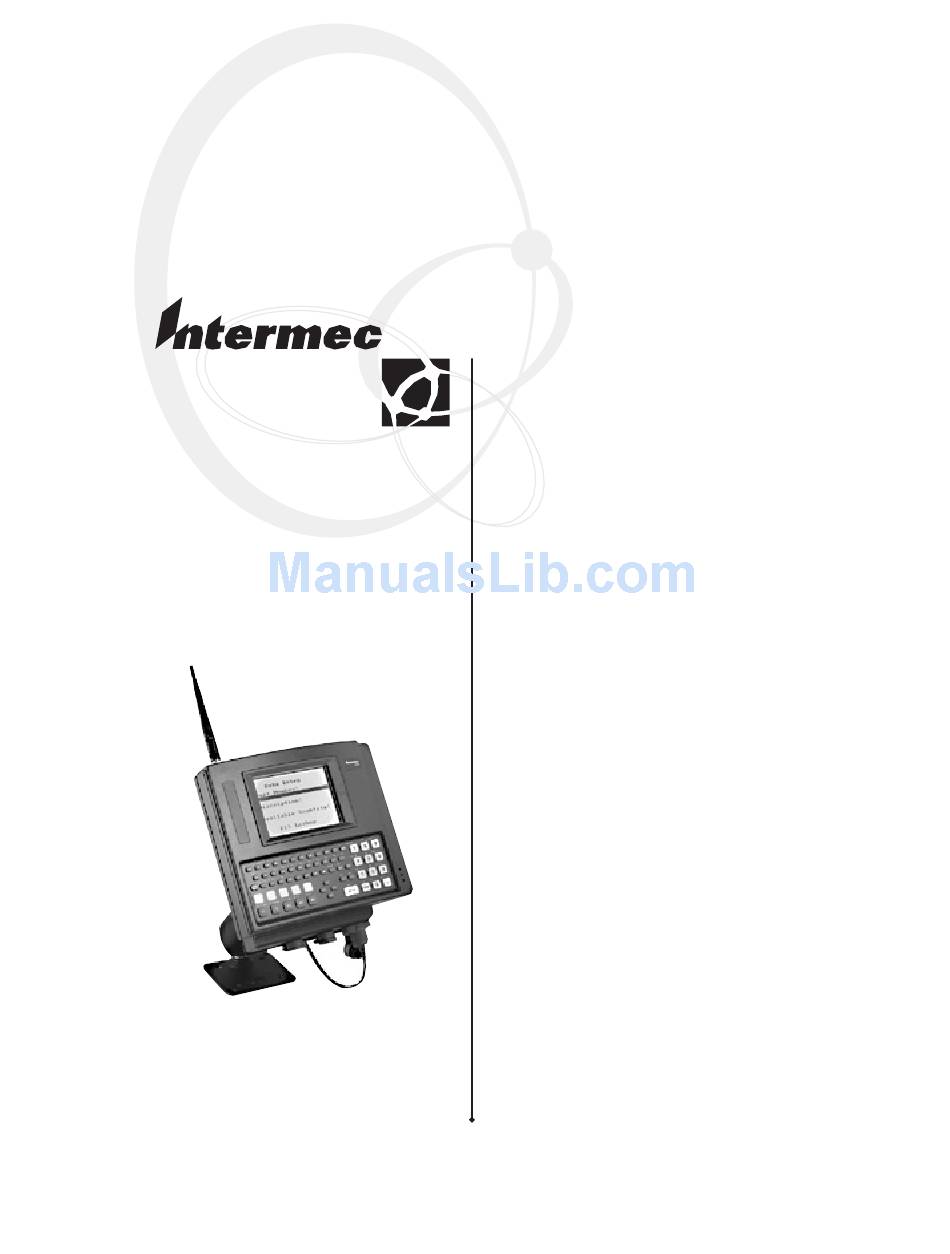

  • Page 1 Installation Instructions Trakker Antares 2475 Vehicle-Mount Terminal ®...
  • Page 2 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
  • Page 3: Table Of Contents

    Contents Preparing to Install the Terminal 5 Guidelines for Mounting the Terminal 5 Required Tools and Materials 6 Installing the Terminal and Connecting Devices 6 Attaching the Antenna 7 Installing the Terminal 7 Using the Rail Mount 10 Installing and Connecting the DC Power Supply 11 Connecting the External Power Supply 13 Attaching a Scanner 14 Connecting to Serial Devices 15...
  • Page 4 Blank page...
  • Page 5: Preparing To Install The Terminal

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Preparing to Install the Terminal The Trakker Antares vertical or horizontal surface on a vehicle such as a forklift truck. You can also use the rail mount accessory to mount the terminal to a rail on the vehicle. You use a DC power supply that is connected to the vehicle’s battery to power the 2475.
  • Page 6: Required Tools And Materials

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Required Tools and Materials You need the tools and materials listed next to install your 2475. These tools and materials are not supplied with the terminal. • Common hand tools and mounting hardware •...
  • Page 7: Attaching The Antenna

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Attaching the Antenna The antenna is shipped with the terminal. Remove the antenna from the shipping box and attach the antenna as shown. You can also use an Intermec-approved accessory antenna to improve RF communications. For more information, see your Intermec sales representative.
  • Page 8 Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions To install the mounting bracket, you must complete these steps: 1. Attach one of the mounting plates to the 2475. 2. Install the other mounting plate and the mounting arm on a mounting surface.
  • Page 9 Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions To install the other mounting plate and the mounting arm on the mounting surface 1. Using the mounting plate as a template, mark and drill the holes in the vertical or horizontal mounting surface.
  • Page 10: Using The Rail Mount

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions To attach the 2475 to the mounting arm 1. Attach the terminal and mounting plate assembly to the mounting arm, and adjust the terminal to the best-possible viewing angle for the vehicle operator.
  • Page 11: Installing And Connecting The Dc Power Supply

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions To install the mounting bracket on the vehicle using the rail mount 1. Attach the mounting plate to the 2475. For help, see the procedure “To attach a mounting plate to the 2475” on page 8.
  • Page 12 Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Installing the DC Power Supply Vehicle battery To install and connect the DC power supply 1. Disconnect the vehicle battery cables. 2. (Optional) Wire or add a remote disconnect for the DC power supply on combustion-powered vehicles that have smaller capacity batteries.
  • Page 13: Connecting The External Power Supply

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Connecting the External Power Supply Use the external power supply (Part No. 065236) and the external power supply adapter cable (Part No. 066842) to power the 2475 in an office location. To install and connect the external power supply 1.
  • Page 14: Attaching A Scanner

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Attaching a Scanner You can attach a scanner to scan and input bar code data. To connect a scanner to the Scanner port 1. Unplug the rubber plug from the Scanner port on the terminal.
  • Page 15: Connecting To Serial Devices

    Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions Connecting to Serial Devices You can use the terminal’s serial port (COM1) to transfer data between the terminal and a serial device, such as a host computer or printer, using RS-232 communications. To connect a serial device to COM1 1.
  • Page 16: Charging The Backup Battery

    2. Let the power supply charge the backup battery for 14 hours to fully charge the backup battery. You can operate the terminal while the backup battery is charging. 6001 36th Avenue West Everett, WA 98203-9280 © 2002 Intermec Technologies Corp. All Rights Reserved Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions *072512-001* *072512-001*...
