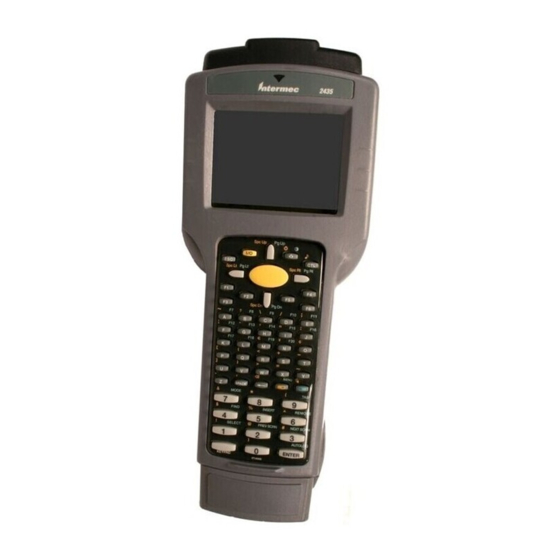

- Page 1 Quick Start Guide Trakker Antares® 243X Handheld Terminal...
- Page 2 The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec- manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec.
-
Page 3: Table Of Contents
C d 39 nuggetfont Contents About This Guide... 5 Introducing the Trakker Antares 243X Terminals... 5 Equipment You Need to Get Started ... 6 Using the Terminal for the First Time ... 6 Unpack the Terminal ... 7 Charge and Install the Battery Pack ... 7 Turn On the Terminal ... - Page 4 C d 39 nuggetfont Trakker Antares 243X Handheld Terminal Quick Start Guide...
-
Page 5: About This Guide
Trakker Antares 2430 and 2435 terminals. You may need ® to refer to additional Intermec documents to configure the 243X for your data collection network. For a list of documents see “Where to Go From Here” on page 19. -
Page 6: Equipment You Need To Get Started
RF network. The 2435 can communicate with a host either through the access points and the Intermec Gateway or Data Collection Server (DCS) 30X, or directly through the access points. The 2435 can also run client/server applications, TE 2000 emulation applications, and Data Collection Browser ... -
Page 7: Unpack The Terminal
Check the contents of the box against the invoice for completeness. If there is a problem, contact your local Intermec service representative. Charge and Install the Battery Pack... - Page 8 073152 seulement. L’utilisation de tout autre bloc-batterie présente un risque d’incendie ou d’explosion. Contact your local Intermec sales representative for a replacement battery pack. DISPOSE OF USED BATTERY PACKS PROMPTLY. KEEP THEM AWAY FROM CHILDREN.
-
Page 9: Turn On The Terminal
C d 39 nuggetfont 243XQ005.eps 4 Replace the battery door and handstrap. Turn On the Terminal Before turning on the terminal, you should familiarize yourself with the terminal’s keypad. For help, see “Using the Keypad” on page 15. The Suspend/Resume key is the f key on the keypad. When you press f to turn off the terminal, the terminal does not actually shut off, but it goes into a Suspend mode. -
Page 10: Set The Time And Date
APPTSK.BIN. EM9560.BIN emulates a subset of the functionality available on the Intermec 95XX terminals. You can use either application to scan, enter, transmit, and display data. For help, see Appendix D in the 2400 Family system manual. -
Page 11: (Optional) Configure The Serial Port Parameters
C d 39 nuggetfont 2 Select System Menu and press v, and then select Set Time and Date and press v. The Time and Date screen appears. TIME AND DATE Current time is 12:00:00 New time: 12:39:00 Current date is 1996/01/01 New date YYYY/MM/DD: CANCEL... -
Page 12: (2435 Only) Configure The Network Parameters
If you are using the WTP network, you only need to configure the Activate field. 2 (UDP Plus) In the Controller IP Address field, enter the IP address of the Intermec Gateway or DCS 30X. The IP Trakker Antares 243X Handheld Terminal Quick Start Guide... -
Page 13: (2435 Only) Configure The Radio Parameters
“DHCP (Terminal)” in the 2400 Family system manual. To configure the Advanced Network parameters Note: If the Intermec Gateway, DCS 30X, or host is on a different subnetwork from the terminal, you need to configure the subnet mask and the default router. -
Page 14: Choosing Your Te 2000 Configuration
C d 39 nuggetfont Depending on the radio that is in the devices, you must match certain parameters on the 2435s and on the access points. Press l t 2 4 8 , l x 2 4 8 , or the orange >... -
Page 15: Using The Keypad
C d 39 nuggetfont 2 Select Set-up Parms and press v. A password prompt appears. 3 Type C R 5 2 4 0 1 and press v. 4 Select Protocol Opts, Data Stream, and then select the appropriate TE 2000 configuration. 5 Save your changes by selecting Exit Menus from the TE 2000 main menu. -
Page 16: Changing The Beep Volume
C d 39 nuggetfont code labels. Only enable the bar code symbologies that you need to scan. Changing the Beep Volume The 243X has a beeper that provides you with audio feedback. To change the beep volume Press l t 2 4 8 , l x 2 4 8 , •... -
Page 17: Useful Bar Codes
C d 39 nuggetfont Status Icon Descriptions (continued) Icon Name Description Modifier Key This icon indicates that one of the modifier keys, such as w, is enabled. This icon turns on when you press l r Caps Lock to enable the Caps Lock feature. User Defined This icon is user defined. -
Page 18: Specifications
C d 39 nuggetfont Specifications This section lists some specifications for the terminals. For a complete list of specifications, see Appendix A, “Specifications,” in the user’s manual. Physical Dimensions Length: 25.4 cm (10 in) Height: 4.6 cm (1.8 in) at grip Width: 10.2 cm (4 in) at screen Weight:... -
Page 19: Where To Go From Here
Data Collection Browser Client User’s Guide (P/N 070011). The Intermec web site at www.intermec.com provides our current manuals as PDF files for you to download. To order accessories and printed documentation, contact your local Intermec representative. - Page 20 C d 39 nuggetfont 6001 36th Avenue West Everett, WA 98203 U.S.A. www.intermec.com © 2004 Intermec Technologies Corp. All Rights Reserved Trakker Antares 243X Handheld Terminal Quick Start Guide *071792-004* P/N 071792-004...
