Intermec Trakker Antares 2420 Supplementary Manual

P/N 064218-005
TRAKKER Antares 2400 Series Belt Clip and Belt
Instruction Sheet
The belt and belt clip allows you to have the TRAKKER
2425 terminal hang at your side so you can have both hands free. The belt
clip snaps around the belt and a Velcro strap holds the terminal to the belt
clip. With the terminal at your side, it is easy to reach when you are ready to
resume using it.
To attach the belt clip
1. Slide the belt clip flap over
2. Buckle the belt so it is snug
3. Thread the Velcro strap
4. Thread the Velcro strap
the belt and snap the flap
closed.
yet comfortable with the belt
clip resting on the outside of
the thigh.
through the slot on the
bottom case of the terminal.
(If you have a handstrap on
the terminal, you may need
to temporarily release it.)
Pull the strap through the
slot.
through the buckle slot and
press and rub the two ends
of the Velcro strap together
until they lock and secure the
strap.
If you need to temporarily remove the terminal, squeeze the buckle to release
it. To reattach the terminal, simply snap the buckle ends together.
®

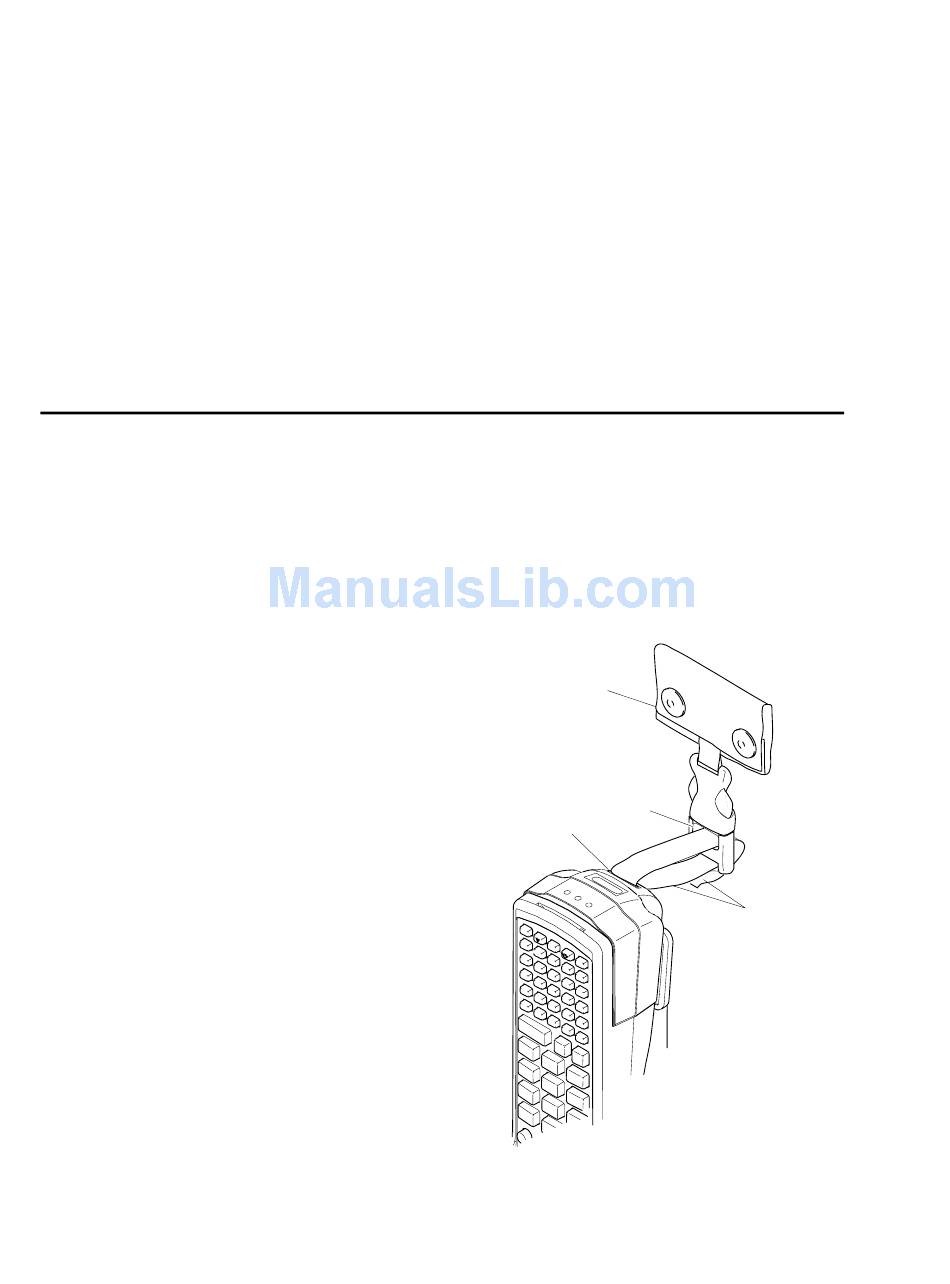

Antares
