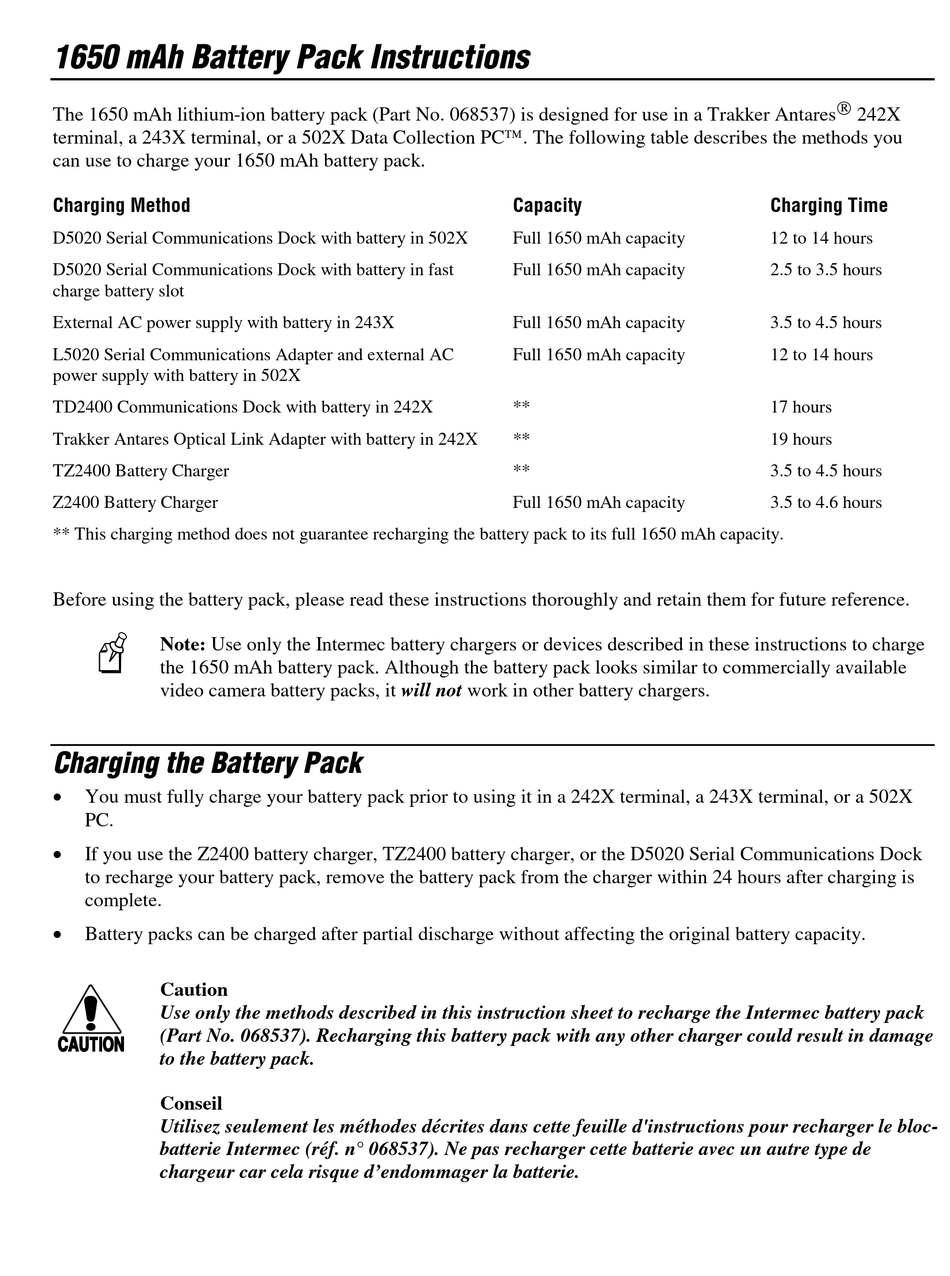

Intermec Trakker Antares 2420 Supplementary Manual

1650 mAh Battery Pack Instructions
The 1650 mAh lithium-ion battery pack (Part No. 068537) is designed for use in a Trakker Antares  242X
terminal, a 243X terminal, or a 502X Data Collection PC. The following table describes the methods you
can use to charge your 1650 mAh battery pack.
Charging Method
D5020 Serial Communications Dock with battery in 502X
D5020 Serial Communications Dock with battery in fast
charge battery slot
External AC power supply with battery in 243X
L5020 Serial Communications Adapter and external AC
power supply with battery in 502X
TD2400 Communications Dock with battery in 242X
Trakker Antares Optical Link Adapter with battery in 242X
TZ2400 Battery Charger
Z2400 Battery Charger
** This charging method does not guarantee recharging the battery pack to its full 1650 mAh capacity.
Before using the battery pack, please read these instructions thoroughly and retain them for future reference.
Note: Use only the Intermec battery chargers or devices described in these instructions to charge
the 1650 mAh battery pack. Although the battery pack looks similar to commercially available
video camera battery packs, it will not work in other battery chargers.

Charging the Battery Pack

•
You must fully charge your battery pack prior to using it in a 242X terminal, a 243X terminal, or a 502X
PC.
•
If you use the Z2400 battery charger, TZ2400 battery charger, or the D5020 Serial Communications Dock
to recharge your battery pack, remove the battery pack from the charger within 24 hours after charging is
complete.
•
Battery packs can be charged after partial discharge without affecting the original battery capacity.
Caution
Use only the methods described in this instruction sheet to recharge the Intermec battery pack
(Part No. 068537). Recharging this battery pack with any other charger could result in damage
to the battery pack.
Conseil
Utilisez seulement les méthodes décrites dans cette feuille d'instructions pour recharger le bloc-
batterie Intermec (réf. n° 068537). Ne pas recharger cette batterie avec un autre type de
chargeur car cela risque d'endommager la batterie.
Capacity
Full 1650 mAh capacity
Full 1650 mAh capacity
Full 1650 mAh capacity
Full 1650 mAh capacity
**
**
**
Full 1650 mAh capacity
Charging Time
12 to 14 hours
2.5 to 3.5 hours
3.5 to 4.5 hours
12 to 14 hours
17 hours
19 hours
3.5 to 4.5 hours
3.5 to 4.6 hours
