- Page 1 Operating Instructions VACURET DIGIT VACURET REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

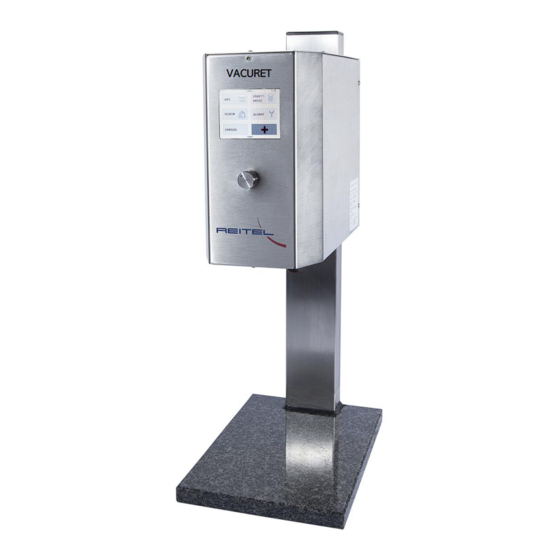

- Page 2 Dear Customer! The VACURET DIGIT vacuum mixer is perfectly suited for homogeneous and bubble-free mixing of plaster, polymers or resins. It is equipped with an intuitive and user-friendly digital display. Pre- and main mixing times can be programmed individually at variable speeds according to the material requirements.
-
Page 3: Table Of Contents
INDEX TECHNICAL DESCRIPTION ..................4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................4 PERATING LEMENTS ......................5 ECHNICAL SAFETY NOTES ......................6 .................... 6 ENERAL AFETY OTES ................. 7 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................8 ......................8 NSTALLATION ...................... -
Page 4: Technical Description
Technical Description Basic Equipment • VACURET DIGIT Vacuum mixing device for wall mounting • 1 mixing bowl 400 ml • 1 power cord Special Accessories • Order-No. 23701000 Table top stand • Order-No. 21302100 Mixing bowl 75 ml • Order-No. 21302000 Mixing bowl 150 ml •... -
Page 5: Technical Data
Technical Data Line voltage 230V/50–60 Hz Current consumption 600 W Height/width/depth 290/155/285 mm Height/with/depth incl. stand 710/220/360 mm Weight 8 kg/15 kg (incl. stand) Speed variable 200–600 t/min. Vacuum max. 98 % Memory locations ≤ 70 dB(A) Sound level Housing stainless steel Made in Germany (Subject to modifications) -
Page 6: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 7: Specific Safety Instructions
Specific Safety Instructions Note: The mixing bowl is dishwasher-proof and may be cleaned with solvent-free cleaning agents. The bowl is non-resistant to some chemicals like e.g. concentrated mineral acids, aromatic hydrocarbons and chlorinated hydrocarbons as well as ester, ether and ketone. •... -
Page 8: Installation
10 wall mounting). Put the connector plug into the mains socket (6) of the device. Plug the power plug of the VACURET DIGIT into a socket. The device is now ready for use. If the device is not used for a long period of time, disconnect it from the mains. -
Page 9: Operation
Operation The VACURET DIGIT is exclusively operated with the rotary control knob (2). Move the control knob (2) to select menu items and options. Push the rotary controller (2) to confirm your settings. Operation sequence for pre-registered programs Turn the power on (4). -
Page 10: Setting / Saving Mixing Parameters Editing Existing Programs
Setting / Saving mixing parameters Editing existing programs Switch the power on (4). Gerät mit Hauptschalter (n. 3. Turn the rotary control knob (2) to „Name“ and push to confirm. Here you also choose if two-stage mixing: pre- and main mixing is required or if you want to do without pre-mixing. -
Page 11: Manual Mode
Operation sequence in manual mode Turn the power (4) on. 3. Enter your settings by turning the 2. Turn the rotary control knob (2) to the left or right until page 5 to select rotary control knob (2) and push to confirm. -
Page 12: Mixing Bowl For Alginates ( Special Accessories )
6. Use the rotary control knob (2) to 5. Push the filled mixing bowl (9) into move and push on the air release the receptacle (7) and push the „Play“-button (19) to start th process. icon (bowl symbol) in the middle of the display to release the mixing bowl (9) from the receptacle (7), as soon Mixing... -
Page 13: Troubleshooting
Troubleshooting Device doesn’t work after turning it on. a. No power at the socket (Check main (Display does not shine after turning on or a fuse of the building). b. Machine’s fuse (5) has blown (Unplug bar will appear) the machine and replace the fuse. The fuse holder is located at the device’s plug). -
Page 14: Maintenance
Regularly clean the housing with a damp cloth. Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment to prevent corrosion. The spray creates a lasting, water repellent protective film which helps to keep the equipment clean. - Page 15 Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised distributors. Repairs performed by non-authorised companies will void the claim for refund since damages to the product resulting hereof are not covered by warranty.
- Page 16 − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 17 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 18: Disposal Regulations
Disposal Regulations According to valid laws our devices are correctly disposed of according to B2B – Regulations for proper disposal of commercial end products. Please contact your local dealer for detailed information. -
Page 19: Spare Parts List
Spare parts list VACURET DIGIT Stck Ersatzteilliste / Spare parts list Qty. Unit Best.Nr. Dichtring für 150ml Becher Stck E6555610 Sealing ring for 150ml bowl piece Dichtring für 400ml Becher Stck E6555620 Sealing ring for 400 ml bowl piece Dichtring für 600ml Becher... -
Page 20: Wall Mounting - Drilling Template
Wall mounting – Drilling template Please refer to indicated dimensions! Drilling template not to scale 1:1! -
Page 21: Eu-Directive
EU-Directive... - Page 22 We manufacture in compliance with Quality Management ISO 13485:2016, incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
