- Page 1 Operating Instructions STAR REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen - Germany Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

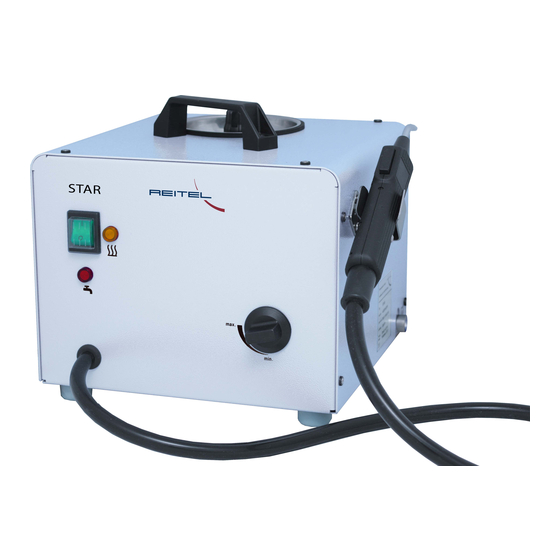

- Page 2 Dear Customer! The STAR is a steam cleaner with a single steam level. Grease, sticky wax, pickling agents, various contaminants and adhesives are gently removed without affecting the object itself. Environmentally safe, because no chemicals are needed. Any other use or use beyond this is deemed improper. For resulting damage the user/operator of this device is solely responsible.
-
Page 3: Table Of Contents
INDEX EQUIPMENT ......................... 4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES ....................5 PERATING LEMENTS ......................7 ECHNICAL SAFETY INSTRUCTIONS ..................... 8 ................. 8 ENERAL AFETY NSTRUCTIONS ................. 9 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................10 OPERATION ........................10 ................10 HRONOLOGICAL RUN OF OPERATION .........10 ECALCIFY THE DEVICE WHEN USING NON DISTILLED WATER... -
Page 4: Equipment
Equipment Basic Equipment • Steam Cleaner STAR Special Accessories • Order-No.: 20107000 Wall holder • Order-No.: 20121000 Hand pump for descaling • Order-No.: 90410000 Descaler, 1.000 ml • Order-No.: 10106000 BIOSTEAM CENTER with suction • Order-No.: 20200000 Water softening device DELIMER COMFORT... -
Page 5: Operating Elements
Operating Elements Housing Main switch Control lamp “lack of water” Control lamp “heating“ Heating controller Tank cap Steam gun Steam gun hose Deflector plate 10 Safety valve 11 Temperature limiter 12 Device’s fuse 13 Steam gun switch 14 Pistol clip or holder 15 Contact screw... - Page 6 Fig.: Device view Fig.: safety valve Fig.: rear view Abb.: side view...
-
Page 7: Technical Data
Fig.: Posture for fast operation and high ergonomics Fig.: Posture for detailed cleaning Technical Data Line voltage 230 V / 50 - 60 Hz Current consumption 1200 W Height (+ handle) / width (+ handle) / depth 280 / 330 / 330 mm Weight 8 kg Pressure... -
Page 8: Safety Instructions
Safety Instructions General Safety Instructions • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 9: Specific Safety Instructions
Specific Safety Instructions Note: • Keep a minimum safe distance of 100 cm from the safety valve (back) to traffic areas or workplaces – Danger of scalding. • Ground yourself by touching the steam gun handle (7) and the contact screw (15). Alternatively lay your hand flat on the steam cleaner’s housing. -
Page 10: Installation
If the heating control is not set to max., the control lamp heating (4) might shine, although the tank was filled up. However the STAR is ready for operation, but at low temperature. The heating is automatically activated and the lamp (4) shines. After approx. 18 min. -
Page 11: Troubleshooting
Troubleshooting Machine doesn’t work after turning it on. a. Check the building’s fuse. b. Check device’s fuse. Safety valve (10) opens or water leaks. a. Slightly down-regulate controller (5) and call service. ATTENTION: If available don’t remove cover and don’t close opening. -
Page 12: Maintenance
Note Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other contaminants from the surface of the equipment and to prevent corrosion. The spray creates a lasting, water repellent protective film which helps keep the equipment clean. -
Page 13: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorised distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 14 REITEL Feinwerktechnik GmH − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 15 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 16: Disposal Regulations
Disposal Regulations According to valid laws our devices are properly disposed of according to B2B – Regulations for proper disposal. Pls. contact your local dealer for additional information. -
Page 17: Spare Parts List
Spare Parts List Order-No.: Qty. Unit E6291010 Steam nozzle 1,5 mm assy piece E6291000 Steam nozzle (standard) 2,5 mm assy piece E6065810 Steam gun complete with hose piece E6065850 Steam gun (black), completed piece 20110000 Extra hose extension - 2,30m piece 27000800 Tank cap seal 5 pcs./pack... -
Page 18: Eu Directive
EU DIRECTIVE... - Page 20 Manufacturing is performed in compliance to Quality Mangement System ISO 13485:2016 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Phone: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
