REITEL RETOMAT MINI Operating Instructions Manual
With easy controller
Hide thumbs
Also See for RETOMAT MINI:
- Operating instructions manual (20 pages) ,
- Operating instructions manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for REITEL RETOMAT MINI
Summary of Contents for REITEL RETOMAT MINI

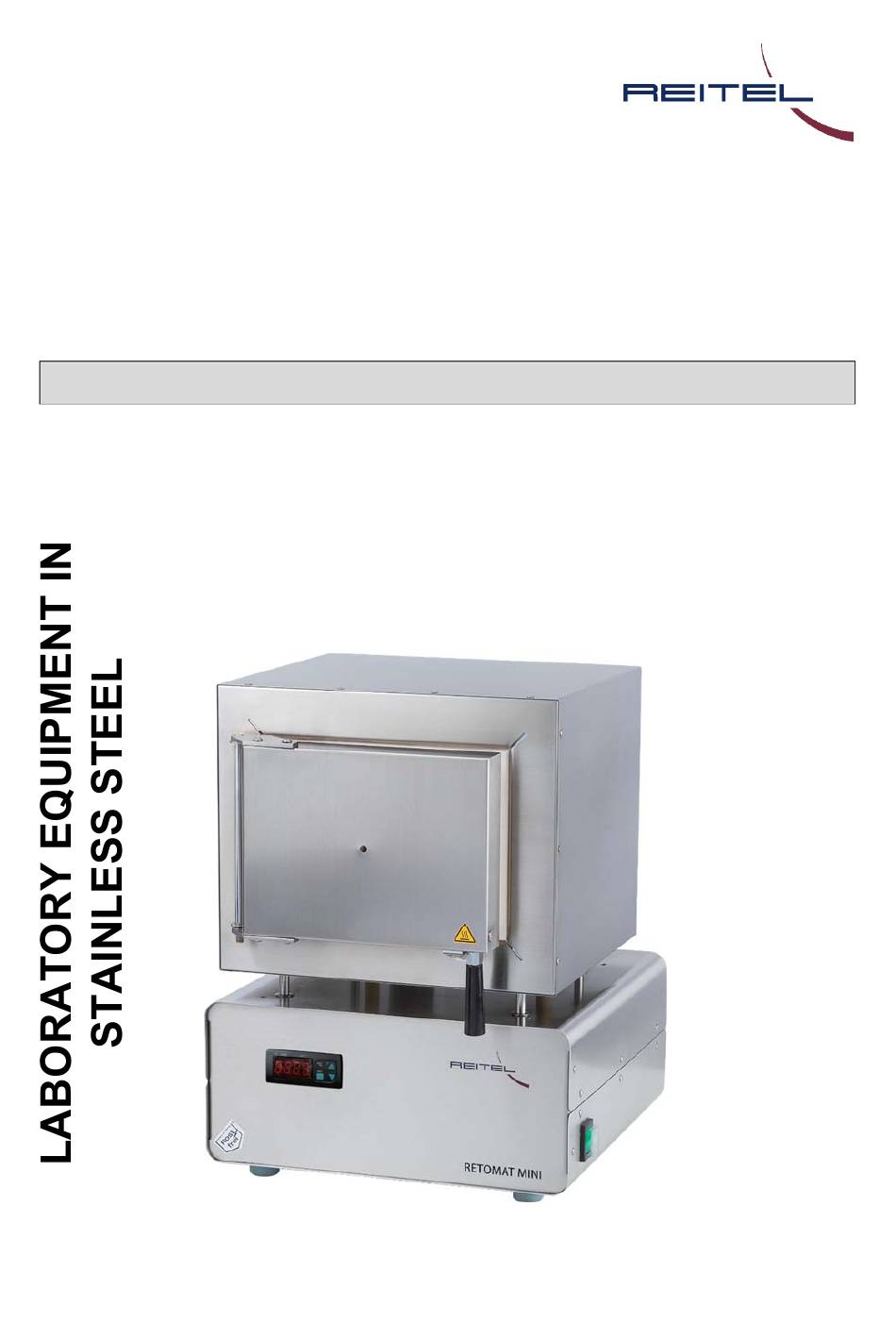

- Page 1 Operating Instructions RETOMAT MINI with EASY controller REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Tel.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...

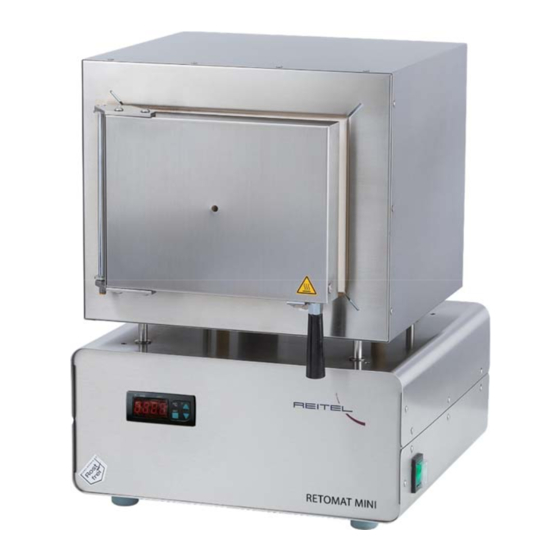

- Page 2 The control system is easy to use and allows programming of the desired target temperature with just a few programming steps. The RETOMAT MINI ensures even temperature distribution through a 4-side heating coil system and high-quality chamber insulation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL DESCRIPTION ................... 4 B ..........................4 ASIC S ....................4 PECIAL CCESSORIES P ....................4 RODUCT ESCRIPTION T ......................6 ECHNICAL SAFETY NOTES ......................7 G ....................7 ENERAL AFETY OTES ... -
Page 4: Technical Description
Technical Description Basic RETOMAT MINI with EASY controller Special Accessories Best.-Nr.: 27301000 Katalysator Best.-Nr.: 27303000 Muffel-Ablageplatte Product Description Main switch (green illuminated) Oven door Handle (oven door) Control panel (EASY control) Gray rubber bumper Socket (for optional catalyst) - Page 5 Abb.. Side view Abb.: Back view Abb.: Oven chamber...
-
Page 6: Technical Data
Technical Data RETOMAT MINI Line voltage 230 V/50-60 Hz Current consumption 2.500 W Height/width/depth 510 / 390 / 430 Heating chamber Height/width/depth in mm 115 / 165 / 150 Mould sizes 4 x moulds – size 3 Volume 4,6 l... -
Page 7: Safety Notes
Safety Notes General Safety Notes Each device leaves the factory after final inspection and a test run. However, if the device is damaged or altered due to transportation or other circumstances, it must not be put into operation. Check the device regularly for any damages. Damaged parts must be replaced immediately. -
Page 8: Specific Safety Notes
The radiant heat on other objects or persons must not exceed 50°C. Please use insulation plates if necessary. The RETOMAT MINI is not intended for operation with inflammable, explosive, or chemically aggressive substances without special protective or additional devices. ... -
Page 9: Installation
Installation The electrical equipment is being delivered fully installed. The sealed plug can be connected directly to the mains supply 230 V/16 A. For installation please refer to safety notes in chapter 2. Installation 1. Place the RETOMAT oven on a stable, fireproof workbench of suitable height and on a level surface (minimum width 450 mm). -
Page 10: Use Of A Steam Catalyst
Use of a steam catalyst Notes: Please note that the ceramic filter can become clogged due to heavy soot development (depending on the fuel used). To clean it, loosen the screw on the side of the chamber and lift the filter insert upwards. The catalytic converter insert can be burned off for one hour in the preheating oven at 700°C. -
Page 11: Troubleshooting
Regularly check the appliance for visible damage to the housing or the power cord. Clean the housing regularly with a damp cloth and use REITEL stainless steel care spray. Note: Clean and protect your device at regular intervals with the REITEL stainless steel care spray (order -no.: 90405000) to remove lime, plaster and dust as well as other... - Page 12 Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised distributors. Repairs performed by non-authorised companies will void the claim for refund since damages to the product resulting hereof are not covered by warranty.
- Page 13 REITEL Feinwerktechnik GmH; The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH All kind of damages occurred not directly at the device as well as consequential damages (e.g.
-
Page 14: Disposal Regulations
Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan equipment as well as for shipping and packaging. -
Page 15: Spare Parts List
Katalysator ( Keramik ) für 73.1 Stck E5010600 Catalyst (ceramics) for 73.1 piece Keramik Einlegeplatte 067 (Retomat Mini) 130 x 135 mm Stck E7814200 Ceramic inlay 067 (Ret. Mini) 130 x 135 mm piece Keramik Einlegeplatte 073 (Retomat) 190 x 195 mm Stck E7814300 ... -
Page 16: Ec Conformity Declaration
EC Conformity Declaration... - Page 20 We adhere to the quality management system of ISO 13485:2016, ensuring consistent process standards. REITEL Feinwerktechnik GmbH Senfdamm 20 | 49152 Bad Essen Tel.: +49(0)5472-9432-0 | Fax: +49(0)5472-9432-40 www.reitel.com | info@reitel.com...
