- Page 1 Operating Instructions RETOMIX EASY REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Phone: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...

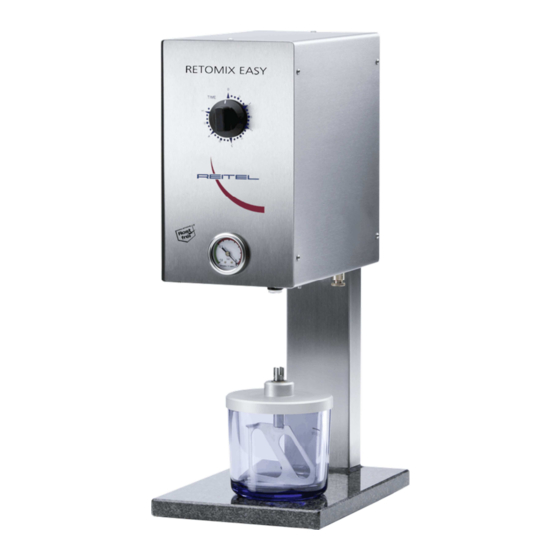

- Page 2 Dear Customer! The RETOMIX EASY vacuum mixer is the entry-level model of the REITEL vacuum mixer product family. Vacuum is generated with a high-quality and durable vacuum pump. Easy handling due to automatic starting of the vacuum pump as soon as the mixing bowl is held under the bowl support.
-
Page 3: Table Of Contents
CONTENTS EQUIPMENT ......................... 4 ....................... 4 ASIC QUIPMENT ....................4 PECIAL CCESSORIES SAFETY NOTES ......................5 .................... 5 ENERAL AFETY OTES ................. 6 PECIFIC AFETY NSTRUCTIONS INSTALLATION ......................7 ......................7 NSTALLATION ................. 7 REPARATION FOR NSTALLATION NOTES FOR THE USER ....................7 .................... -
Page 4: Equipment
Equipment Basic Equipment • RETOMIX EASY Vacuum mixer • 1 Mixing bowl 400 ml • Power cord Special Accessories • Order-No. 23701 Benchtop stand • Order-No. 1302.1 Mixing bowl 75 ml • Order-No. 21302 Mixing bowl 150 ml • Order-No. 21303 Mixing bowl 400 ml •... -
Page 5: Safety Notes
Safety Notes General Safety Notes • All equipment undergoes final inspection and testing before leaving our factory. However, if equipment is damaged during shipping or through any other circumstances, it must not be used in service. Please check the device regularly for damages. Damaged parts should be replaced immediately. -
Page 6: Specific Safety Instructions
Specific Safety Instructions • Don’t mix any alienated material or material containing solvents, dangerous to health. • The pump and other conducting components are not explosion-proof. Application with burnable substances is therefore prohibited. • Don’t use any high-viscosity material leading to a considerable decrease in mixing speed. •... -
Page 7: Installation
Put the connector into the power outlet (6) of the device. Put the power plug of the RETOMIX EASY into a socket. Now the device is ready for use. During long periods of non-use disconnect the device from mains supply. -
Page 8: Mixing With Reduced Vacuum
Mixing with reduced vacuum Max. filling level of the mixing bowl (10) is paddle top. (Note: avoid overfilling, see chapter 5 troubleshooting.) Insert the mixing bowl (10) into bowl support (7), slightly pressing the bowl. Vacuum pump starts automatically after a couple of seconds. You can release the bowl. Activate vacuum relief valve (9) for mixing with reduced vacuum: −... -
Page 9: Troubleshooting
Troubleshooting Device doesn’t start. a. No power at the socket (check fuse of the building). b. Machine’s fuse (5) has blown (Unplug the machine and replace the fuse. The fuse holder is located at the device’s plug). a. Dirty lid surface of the mixing bowl → Bubbles in investment material (low vacuum). -
Page 10: Maintenance
Maintenance • Please check the device regularly for damages. Pay attention to visible damages at the housing or cable. • Regularly clean gasket and mixing bowl’s sealing space (10) and bowl support (7). • Regularly grease the mixing bowl to keep in good condition. •... -
Page 11: Warranty
Warranty We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven date of purchase. This warranty covers all defects traceable to materials, design or workmanship. The following warranty regulations are applicable: Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees at its sole option, to perform repair or replace this product at no charge covering all defects traceable to materials, design or workmanship. - Page 12 REITEL Feinwerktechnik GmbH; − The warranty does not cover the cost of removal and replacement of parts and accessories, unless supplied as original equipment by REITEL Feinwerktechnik GmbH − All kind of damages occurred not directly at the device as well as consequential damages (e.g.
- Page 13 Should you need to borrow a device while your device is being repaired, please contact Messrs. REITEL or your distributor. These loans are a service for which availability cannot necessarily be guaranteed. After the warranty period, a free may be charged for loan...
-
Page 15: Rules For Disposal Of Commercial Electrical Equipment
Rules for Disposal of Commercial Electrical Equipment According to valid laws our devices are disposed of according to B2B – regulations for proper disposal. Pls. contact your local dealer for additional information. Technical Data Line Voltage 230V/50-60 Hz Current consumption 420 W Height/width/depth 290/155/285 mm... -
Page 16: Operating Elements
Operating Elements Timer Gauge Switch Flooding Start switch for vacuum pump Device’s fuse Power connector Bowl support Filter Vacuum relief valve 10 Mixing bowl... -
Page 18: Spare Parts List
Spare Parts List Dr.- No.: Order-No.: Qty. Unit E70117 Bowl support gasket piece E70112 Filter (5 pcs./pack) pack... -
Page 19: Wall Mounting
Wall Mounting This is no drill template! This is no 1:1 ratio! - Page 20 We manufacture in compliance with Quality Management ISO 9001:2008 incorporating established standards. REITEL Feinwerktechnik GmbH Senfdamm 20 - 49152 Bad Essen Tel.: +49(0)5472-9432-0 - Fax: +49(0)5472-9432-40 http://www.reitel.com - info@reitel.com...
