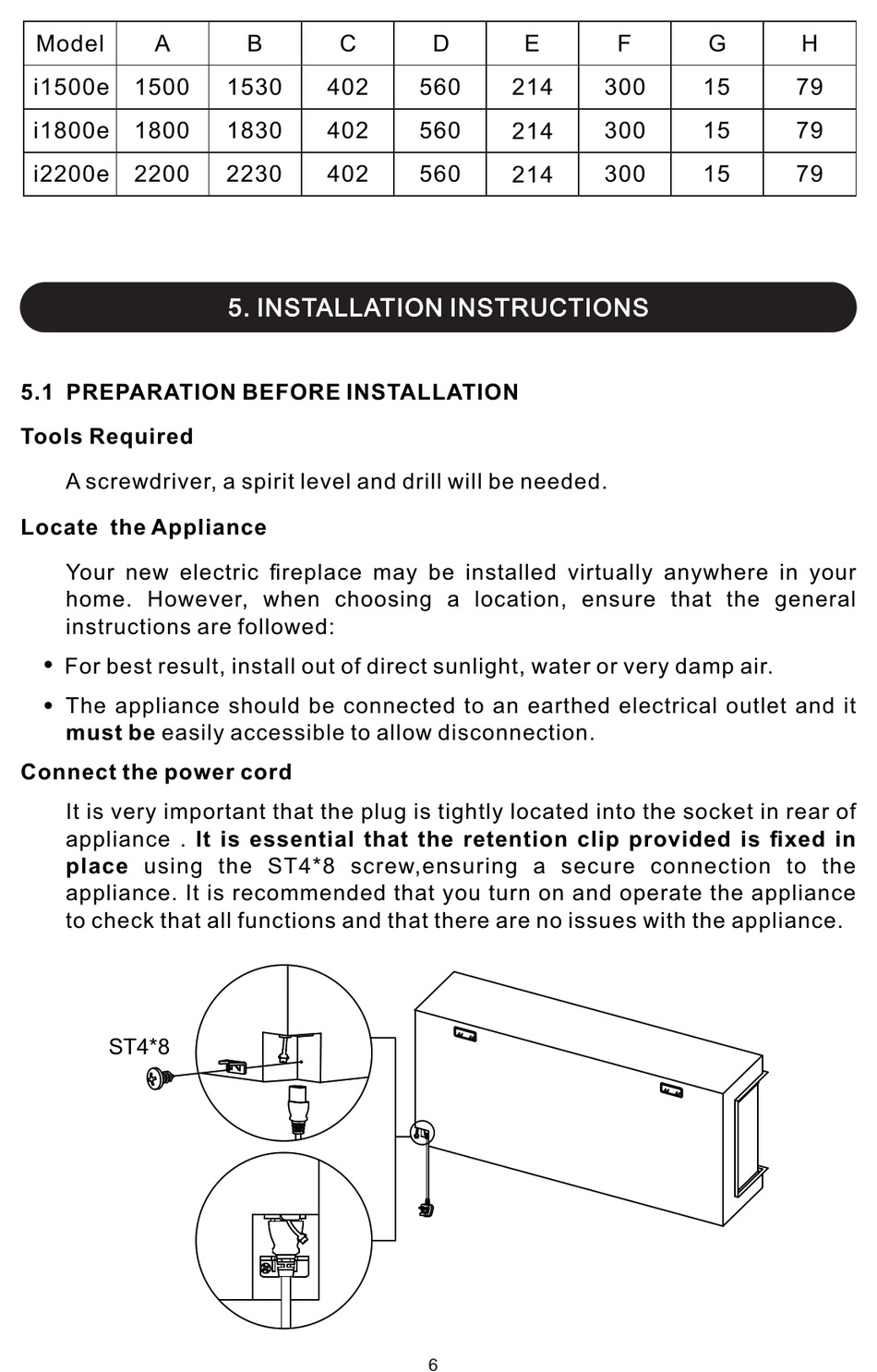

5.1 PREPARATION BEFORE INSTALLATION
Tools Required
A screwdriver, a spirit level and drill will be needed.
Locate the Appliance
Your new electric fireplace may be installed virtually anywhere in your
home. However, when choosing a location, ensure that the general
instructions are followed:
For best result, install out of direct sunlight, water or very damp air.
l
The appliance should be connected to an earthed electrical outlet and it
l
must be easily accessible to allow disconnection.
Connect the power cord
It is very important that the plug is tightly located into the socket in rear of
appliance . It is essential that the retention clip provided is fixed in
place using the ST4*8 screw,ensuring a secure connection to the
appliance. It is recommended that you turn on and operate the appliance
to check that all functions and that there are no issues with the appliance.
ST4*8
B C
1530 402
1830 402
2230 402

5. INSTALLATION INSTRUCTIONS

D E
560 214
560 214
560 214
6
F G
300 15
300 15
300 15
H
79
79
79
