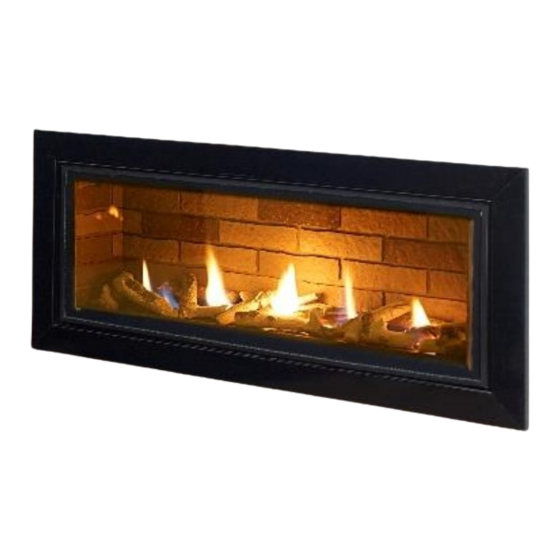

Charlton & Jenrick infinity 890 BF Owner's Manual
  1. Manuals
  2. Brands
  3. Charlton & Jenrick Manuals
  4. Indoor Fireplace
  5. infinity 890 BF
  6. Owner's manual

Charlton & Jenrick infinity 890 BF Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
INCLUDES
User, Maintenance, Service, and Installation
Instructions
890 BF
Keep this booklet for service log and future reference
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.
For use in Great Britain and Ireland.
Literature NO 6541 (ISS 11)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the infinity 890 BF and is the answer not in the manual?

Questions and answers

Related Manuals for Charlton & Jenrick infinity 890 BF

Summary of Contents for Charlton & Jenrick infinity 890 BF

  • Page 1 Owner’s Manual INCLUDES User, Maintenance, Service, and Installation Instructions 890 BF Keep this booklet for service log and future reference IMPORTANT This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts warranty will only be valid if the annual service recommended in this manual has been completed and appliance has been registered online.

  • Page 2: Table Of Contents

    Contents EXTENDED FIVE YEAR PARTS WARRANTY ....2 Benchmark Scheme ............. 3 SECTION ONE Important Information (user EXTENDED FIVE YEAR PARTS instructions) ..............5 WARRANTY SECTION TWO Introduction (user instructions) ..7 SECTION THREE Operation (user instructions) ... 7 In order to validate your extended 5 years parts SECTION FOUR Cleaning &...

  • Page 3: Benchmark Scheme

    Benchmark Scheme Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
  • Page 4 For future reference we suggest you record the following details here, and keep the receipt as proof of purchase. This information may be asked for when you contact the helpdesk. MODEL: INFINITY 890 BF Serial No. This information can be found on the label attached to the packaging and on the data badge, which is located on the base of the appliance behind the control cover.

  • Page 5: Section One Important Information (User Instructions)

     As the INFINITY 890 BF is a room sealed appliance (i.e. air for the combustion process is taken from outside the room) no purpose built ventilation is required.
  • Page 6  Although the INFINITY 890 BF is fitted with a glass front which acts as a dress guard it is strongly recommended that a fireguard should be used for the protection of children, the elderly or infirm.

  • Page 7: Section Two Introduction (User Instructions)

    SECTION TWO Introduction (user instructions)  The INFINITY 890 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in locations that do not have a conventional chimney. The appliance must be installed against an outside wall because the air to support combustion is taken from the outside and the products of combustion are expelled to the outside.
  • Page 8 Room Thermostat mode The remote handset checks the room temperature at a fixed time intervals. Depending on the difference between set room temperature and the actual room temperature the remote proceeds to modulate in one level steps. Once the room temperature is reached it moves to standby position pilot only. The icon “PILOT”...
  • Page 9 Setting the sleep mode To activate the sleep mode: With the fire switched on press the O button. The sleep symbol will appear top right. The sleep symbol replaces the time indicator in this mode. Using the arrow key increase the sleep mode in 15-minute intervals, (a small star will be visible next to the sleep symbol once any time is set) .Once the set time is reached, the fire will completely switch off without any further intervention.

  • Page 10: Section Four Cleaning & Laying The Fuel Bed (Users Instructions)

    SECTION FOUR Cleaning & Laying the fuel bed (users instructions) CLEANING: DECORATIVE FASCIA  Fascia assembly can be wiped with a soft, clean, dry, cloth only. CLEANING: BLACK PAINTED SURFACES  These surfaces should be dusted regularly and any marks removed with a soft cloth. ...
  • Page 11 CLEANING AND REPLACING fuel bed shapes Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before cleaning or replacing any refractory material. Use only the shapes provided NO OTHER SHAPES SHOULD BE ADDED to the appliance The Fuel bed set consists of: ...
  • Page 12  Place a single layer of Bark Chips on the front of the burner and the outside of the Burner End Plates, making sure they don’t go over the Burner Channel, the Pilot cross lighting ports on the right hand side of the burner or the pilot assembly.
  • Page 13  Place the next Two large shapes and One small shape as shown making sure they do not move the bark chips so that they cover the burner channel, the smallest log shape goes in the left corner on top of the bark chips on the Burner End Plate for decorative effect.
  • Page 14  Place the next Two Middle shapes as shown, resting on the rear shapes, making sure they do not disturb the Bark Chips or move them into the Burner Channel.  Place the last two large shapes and last small shape as shown, making sure the last right hand shape does not cover the pilot flame.
  • Page 15  When positioning the Small Log Shape, make sure as not to place it over the pilot assembly as this will disturb the pilot flame, please see picture  See Battery position, the battery pack should be placed inside the Silver Heat Shield pouch. www.charltonandjenrick.co.uk LT6541 (ISS 11)

  • Page 16: Section Five Appliance Data (Installation Instructions)

    SECTION FIVE Appliance Data (installation instructions) Fire Box dimensions: Height 456mm Width 970mm Forward Projection: 10mm Overall Trim dimensions……………………………………………….Height 462mm Width 1054mm Trim Forward dimensions…………………………………………… 23mm Weight: 35kg Flue Length…………………………………………………………………..100mm (minimum) to 1000mm (maximum) Standard length supplied with fire 535mm (267.5mm after cutting). Additional 535mm or 1000mm tubes supplied as optional extras.

  • Page 17: Section Six Regulations And Warnings (Installation Instructions)

    SECTION SIX Regulations and Warnings (installation instructions)  This appliance must only be installed in Great Britain or Ireland.  The appliance is available in natural gas and L.P.G.  This appliance must be installed on a suitable outside wall. ...

  • Page 18: Section Seven Siting The Appliance (Installation Instructions)

    SECTION SEVEN Siting the Appliance (installation instructions) (When installing in a timber framed dwelling reference must be made to the specific installation requirements stated in Section 9 Installing the Appliance in Timber Framed Dwelling). GENERAL REQUIREMENTS  The flue and air duct length must be between 100mm to 1000mm. ...

  • Page 19: Section Eight Preparing The Appliance For Installation (Installation Instructions)

     The back panel of the surround must have a ALL DIMENSIONS IN mm cutout within the maximum and minimum dimensions as shown.  900 MIN Ensure that gas supply is suitably sited.  The appliance may be fitted without a hearth 935 MAX.

  • Page 20: Section Nine To Install The Appliance (Installation Instructions)

    SECTION NINE To Install the Appliance (installation instructions) INSTALLING THE APPLIANCE INTO CAVITY WALL.  Ensure it is a suitable outside wall constructed of non-combustible materials and that the flue position meets the requirements previously described in Section 8.  Mark a horizontal line on the wall at the intended appliance base height 150mm min from combustible surface or 50mm min from non-combustible hearth.
  • Page 21  Using 125mm (5”) core drill cut two holes following the pilot holes. Drill from the outside through to the cavity to give a good finish on the outside.  Remove any cavity insulation from the cut out opening and for a further 100mm into the cavity gap each side and above.

  • Page 22: Section Ten Connecting The Gas Supply (Installation Instructions)

    SECTION TEN CONNECTING THE GAS SUPPLY (installation instructions) TURN OFF ANY GAS APPLIANCES THAT ARE FED BY THE METER AND ISOLATE THE GAS SUPPLY BY TURNING OFF AT THE METER.  Connections may be made in 8mm-dia pipe by a concealed connection from the left hand rear of the appliance with the grommet provided.

  • Page 23: Section Eleven Check Operation Of Fire (Installation Instructions)

     Load 6 off of the 1.5 v “C” batteries into the holder provided and insert into heat shield pouch with the metal support plate on top. Locate the battery holder within the fire on the bottom right hand side and as far forward to the front of the firebox.

  • Page 24: Section Twelve Instruct And Advise The Customer (Installation Instructions)

    SECTION TWELVE Instruct and Advise the Customer (installation instructions)  Demonstrate the lighting and extinguishing procedure to the consumer/user and the removal and refitting of the trim for cleaning.  Explain that for the first few hours of the fire operating there will be an initial odour. This is due to the curing of the paint, the appliance should be operated on its high setting, and it is recommended that a window is left open until that odour has completely disappeared.

  • Page 25: Section Thirteen Maintenance Instructions (Maintenance Instructions)

    SECTION THIRTEEN Maintenance Instructions (maintenance instructions) General  Servicing should be carried out annually by a competent person such as a GAS SAFE-registered person in accordance with the relevant regulations, to ensure the safe and correct operation of the appliance. Warning: - Before commencing any service or replacement of parts, turn off the gas supply to the fire.
  • Page 26 Turn on the gas supply, check for gas soundness, operation and re-commission appliance. When ordering parts quote 'INFINITY 890 BF' and the serial number of the fire, which can be found on the data badge on bottom left hand side of fire. (Refer to cleaning instructions for trim removal.)

  • Page 27: Section Thirteen Wiring Diagram (Maintenance Instructions)

    SECTION THIRTEEN Wiring Diagram (maintenance instructions) Attach to the valve www.charltonandjenrick.co.uk LT6541 (ISS 11)
  • Page 28 LT6541 (ISS 11)
  • Page 29 www.charltonandjenrick.co.uk LT6541 (ISS 11)

  • Page 30: Balanced Flue Gas Fire Commissioning Checklist

    BALANCED FLUE GAS FIRE COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the gas fire as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty.

  • Page 31: Service Record

    SERVICE RECORD It is essential that your gas fire is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 32 A-0390 NE (NG) Product ID Label Serial No Prefix A-0648 RF (LPG) Data Badge Burner Tray / Box Assembly Air Test Completed Battery Insulation Blanket Warning Label (1409) Grommet (1406) Glass Sub-Assembly Silicone Sealing Strip (4818) Linings (Side, rear and top) “AAA”...
