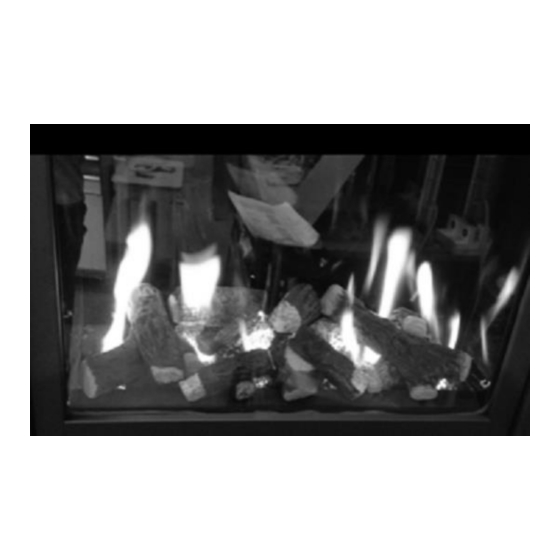

Owner's Manual
INCLUDES
User, Maintenance, Service, and Installation Instructions
***** WARNING !!!!! TRANSIT BOLTS MUST BE REMOVED BEFORE INSTALLING ******
P5 BF
Keep this booklet for service log and future reference
IMPORTANT
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.
For use in Great Britain and Ireland.
Literature NO 8422 (ISS 2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARAGON P5 BF and is the answer not in the manual?

Questions and answers

Related Manuals for Charlton & Jenrick PARAGON P5 BF

Summary of Contents for Charlton & Jenrick PARAGON P5 BF

  • Page 1 Owner’s Manual INCLUDES User, Maintenance, Service, and Installation Instructions ***** WARNING !!!!! TRANSIT BOLTS MUST BE REMOVED BEFORE INSTALLING ****** P5 BF Keep this booklet for service log and future reference IMPORTANT This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts warranty will only be valid if the annual service recommended in this manual has been completed and appliance has been registered online.

  • Page 2: Table Of Contents

    Contents EXTENDED FIVE YEAR PARTS WARRANTY ....2 Benchmark Scheme ............. 3 SECTION ONE Important Information ......5 SECTION TWO Introduction (user instructions) ..7 EXTENDED FIVE YEAR PARTS SECTION THREE Operation (user instructions) ... 8 WARRANTY SECTION FOUR Cleaning & Laying the fuel bed (user instructions) ..............

  • Page 3: Benchmark Scheme

    Benchmark Scheme Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme, which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
  • Page 4 Important For future reference, we suggest you record the following details here, and keep the receipt as proof of purchase. This information may be asked for when you contact the helpdesk. MODEL: PARAGON P5 B.F. Serial No. This information can be found on the label attached to the packaging and on the data badge, which is located on the base of the appliance behind the control cover.

  • Page 5: Section One Important Information

    • As the PARAGON P5 BF is a room-sealed appliance, (i.e. air for the combustion process is taken from outside the room) no purpose built ventilation is required.
  • Page 6 • Although the Paragon P5 BF is fitted with a glass front which acts as a dress guard it is strongly recommended that a fireguard should be used for the protection of children, the elderly or infirm.

  • Page 7: Section Two Introduction (User Instructions)

    SECTION TWO Introduction (user instructions) • The PARAGON P5 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in locations that do not have a conventional chimney. The appliance must be installed against an outside wall because the air to support combustion is taken from the outside and the products of combustion are expelled to the outside.

  • Page 8: Section Three Operation (User Instructions)

    SECTION THREE Operation (user instructions) Low Battery Indication (Handset) If while pressing any of the buttons on the remote handset the low battery indicator lamp either stops flashing or appreciably slows then the battery should be changed. To Replace Batteries In Handset (AAA 1.5v LR3 x 2 ) Remove the cover from the rear of the handset and fit replacement batteries, taking care not to strain the battery connections.

  • Page 9: Section Four Cleaning & Laying The Fuel Bed (User Instructions)

    SECTION FOUR Cleaning & Laying the fuel bed (user instructions) Warning:-Before you clean any part of the appliance ensure that the appliance is switched off and cool. CLEANING: BLACK PAINTED SURFACES • These surfaces should be dusted regularly and any marks removed with a soft cloth. •...
  • Page 10 Follow the Instructions on the Hob Cleaner Bottle. On stubborn stains (where the appliance has been used for a long period without glass panel being cleaned), use a new Brillo Pad well wetted with the Hob cleaner applied directly to it. Ensure all the residues of the cleaner are removed with a damp cloth and the glass panel is completely dry before fitting to the appliance.
  • Page 11 Log Fuel Bed Layout. Within this packed appliance is one packet of Embaglow. Only part of the packet should be used per install, the spare part of the pack is provided for the first annual service. Failure to place the correct amount of flakes and in the correct burner area can result in producing a poor flame picture and sooty deposits.
  • Page 12 • Place a thin single layer of Vermiculite over the Burner as shown, avoid laying it too thick • Make sure not to block around the pilot area on the Burner and Front Infill cover, if flakes fall in, it may be worth lifting the Infill grill out carefully and removing , before carrying on with laying the shapes.
  • Page 13 • Place shapes No. 2, 3, & 4 on the pins as shown. • Place shape No.5 on the Burner and Front infill cover, making sure it sits upright as shown. www.charltonandjenrick.co.uk LT8422(ISS 2)
  • Page 14 • Tease out 6 x small pieces of Embaglow from the packet , keep the rest for annual servicing , the smaller and looser the pieces the better, as this will give a more even glow, less soot and a better flame picture. •...
  • Page 15 • Place a further 2 pieces of the Embaglow in between the shapes on the Right Hand side as shown. • Place shapes No. 6, 7, 8, & 9 on top of the logs and the last two remaining pieces of the Embaglow between the shapes as shown.
  • Page 16 • Place shapes No. 10, 11, & 12 on top of the logs as shown. LT8422 (ISS 2)

  • Page 17: Section Five Appliance Data (Installation Instructions)

    SECTION FIVE Appliance Data (installation instructions) Fire Box dimensions: Height 922mm Width 705mm Forward Projection: 45mm Weight: 35kg Flue Length…………………………………………………………………...100mm (minimum) to 600mm (maximum) No bends or joined flue pipes should be used in the flue system. Pressure Test Point Location: Gas inlet elbow Gas Connection: 8.0mm O/D, tube.

  • Page 18: Section Six Regulations And Warnings (Installation Instructions)

    SECTION SIX Regulations and Warnings (installation instructions) • This appliance must only be installed in Great Britain or Ireland. • The appliance is available in natural gas only. • This appliance must be installed on a suitable outside wall. • No special ventilation bricks or vents are required into the room containing the appliance.

  • Page 19: Section Seven Siting The Appliance (Installation Instructions)

    SECTION SEVEN Siting the Appliance (installation instructions) GENERAL REQUIREMENTS • The flue and air duct length must be between 100mm to 600mm. • The fire is supplied with a standard pipe length of 600mm Flue length. • The flue and air duct must not have any bends. •...

  • Page 20: Section Eight Preparing The Appliance For Installation (Installation Instructions)

    Ensure that gas supply is suitably sited ALL DIMENSIONS IN mm To minimise the risk of cracking due to heat expansion the use of a 3 – piece back panel is 715 min 670 MIN recommended. 780 max 700 MAX. Check with the supplier or manufacturer that the 930 MIN surround meets 150...
  • Page 21 BASE OF OPENING Using 150mm core drill cut a hole following the pilot hole. Drill from the outside through to the cavity to give a good finish on the outside. • Remove any cavity insulation from the cut-out opening and for a further 100mm into the cavity gap each side and above.

  • Page 22: Section Nine Connecting The Gas Supply And Commissioning (Installation Instructions)

    SECTION NINE CONNECTING THE GAS SUPPLY (installation instructions) TURN OFF ANY GAS APPLIANCES THAT ARE SUPPLIED BY THE METER AND ISOLATE THE GAS SUPPLY BY TURNING OFF AT THE METER. • The Gas & Power supply must be assessed at this stage. •...

  • Page 23: Section Ten Assemble The Appliance (Installation Instructions)

    • The cable system consists of retro fitting plug sockets which offers the following options. (Please see below). SECTION NINE Commissioning the appliance (installation instructions) CHECK BURNER PRESSURE AND GENERAL OPERATION • Turn on the supply to the appliance and check for soundness in accordance with the current codes of practice. •...

  • Page 24: Section Eleven Instruct And Advise The Customer (Installation Instructions)

    SECTION ELEVEN Instruct and Advise the Customer (installation instructions) • Demonstrate the lighting and extinguishing procedure to the consumer/user and the removal and refitting of the trim for cleaning. • Explain that for the first few hours of the fire operating there will be an initial odour. This is due to the curing of the paint, the appliance should be operated on its high setting, and it is recommended that a window is left open until that odour has completely disappeared.

  • Page 25: Maintenance Instructions

    Maintenance Instructions Before commencing any service or replacement of parts, turn off the gas supply to the fire. Removal of Gas Control. 1. Switch off the mains supply from the main supply plug socket. 2. Remove the Inner Frame by lifting up and outwards. 3.

  • Page 26: Replacement Of The Thermocouple

    Maintenance Instructions Replacement of Injector. 1. Repeat operations 1-7 for removal of gas control. 2. Undo 14mm Injector Lock nut. 3. Undo the 2 x screws holding the Injector Bracket to Tray Sump, and remove. 4. Undo Injector Nut from Pipe, clean or replace. 5.

  • Page 27: Section Thirteen Wiring Diagram (Maintenance Instructions)

    SECTION THIRTEEN Wiring Diagram (maintenance instructions) Attach to the valve www.charltonandjenrick.co.uk LT8422(ISS 2)
  • Page 28 LT8422 (ISS 2)
  • Page 29 Register your appliance online today to active your warranty www.charltonandjenrick.co.uk LT8422(ISS 2)

  • Page 30: Balanced Flue Gas Fire Commissioning Checklist

    BALANCED FLUE GAS FIRE COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the gas fire as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty.

  • Page 31: Service Record

    SERVICE RECORD It is essential that your gas fire is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 32 A-0830 Product Serial No Prefix ID Label Data Badge Burner Tray / Box Assembly Air Test Completed Warning Label (1409) Grommet (1406) Glass Panel (8317) P5 BF Log Set Mrk 2 (8325) Fascia Assembly (8314) Fire Place Frame (8301) 9v Transformer Mains Lead Fitted “AAA”...
