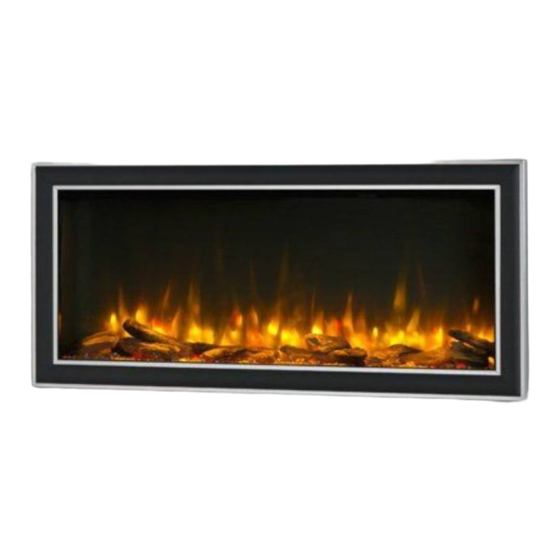

Irange slim electric fire

Advertisement

Quick Links

Best of British fires, fireplaces & stoves

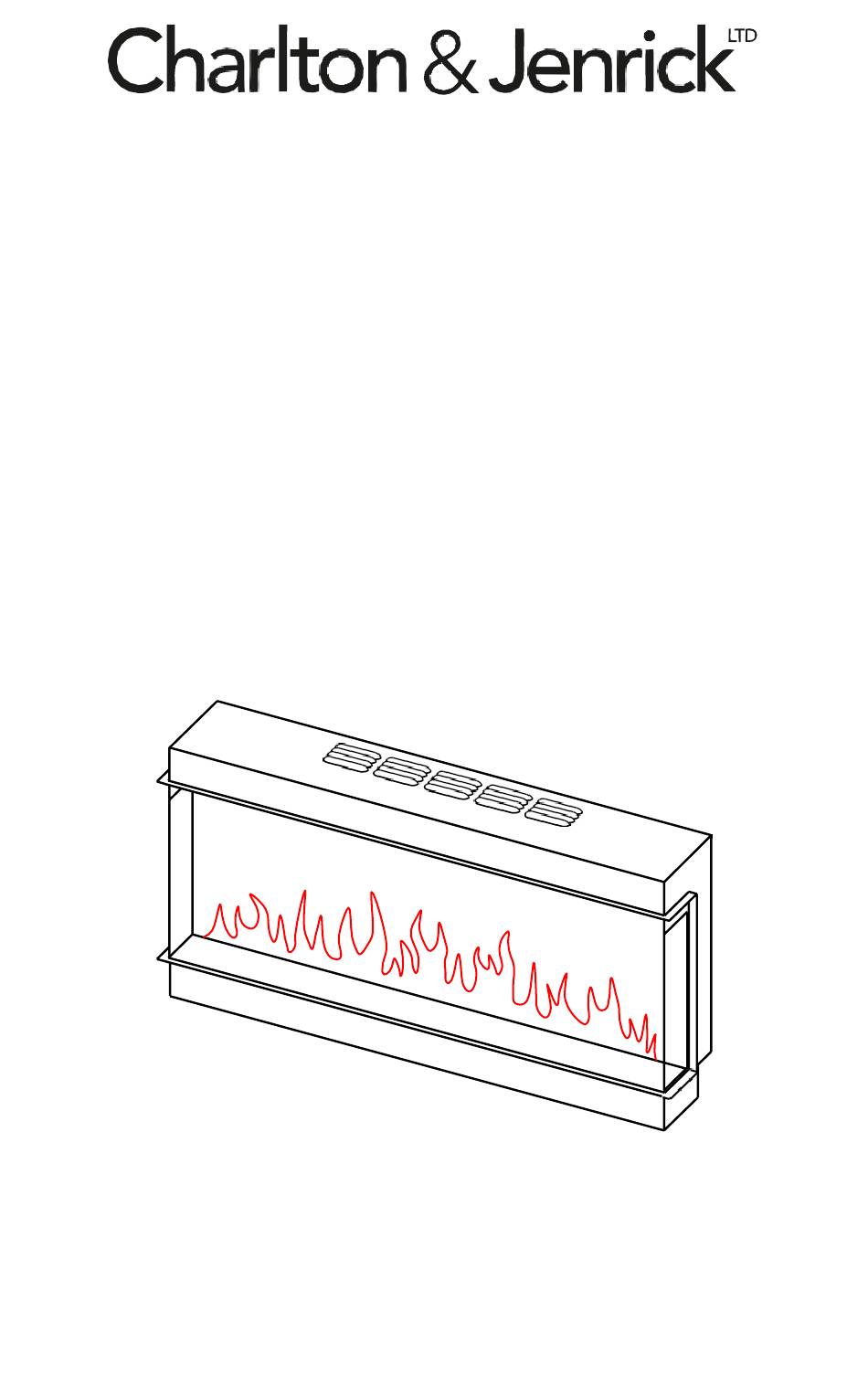

iRange Slim Electric Fire
Instruction Manual
Model:
i920e/i1100e/i1500e/i2000e
Please read the instructions carefully before installation
or use and keep for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i920e and is the answer not in the manual?

Questions and answers

Summary of Contents for Charlton & Jenrick i920e

  • Page 1 Best of British fires, fireplaces & stoves iRange Slim Electric Fire Instruction Manual Model: i920e/i1100e/i1500e/i2000e Please read the instructions carefully before installation or use and keep for future reference.
  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............1 Technical Specifications ..............3 Parts And Hardware ................4 Appliance Dimensions ................7 Installation Instructions ............... 8 Operating Instructions ................18 Manual Control Panel ..............19 Remote Control ..............20 APP Control ................23 Maintenance ..................
  • Page 4: Important Safety Information

    1. IMPORTANT SAFETY INFORMATION  Read all of the instructions carefully before using the appliance.  For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. ...
  • Page 5  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 6: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Model No. : i920e/i1100e/i1500e/i2000e Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 1500W Power for flame and fuel bed effect: Model i920e i1100e i1500e i2000e Power Power for mood light: Model i920e i1100e i1500e i2000e Power 9.6W...
  • Page 7: Parts And Hardware

    3.3 Save the original packaging as this may be required in the event of service complaint with product. 3.4 Ensure that all parts are removed from the packaging. ST4*40 Screw i920e/i1100e (4pcs) Firebox (1pc) ST4*8 Screw (5pcs) i1500e/i2000e(6pcs) ST5*40 Screw...
  • Page 8 Lower Brackets (2pcs) (To be used when the wall Glass Fixing Bracket (2pcs) Black Cover(2pcs) haning bracket(J) is used) Wall hanging bracket is attached on firebox (1pc) Remove from the appliance if you are not fixing to wall Power Cord UK (1pc) Power Cord EU (1pc) Edging Strips (2pcs) Edging Strips (2pcs)
  • Page 9 AAA Battery (2pcs) Simplified Instruction (1pc) Instruction Manual (1pc) Note: The following parts are provided only for i920e fire To be used only when it is intended for a trim to be used Top Trim Support (1pc) LH/RH Trim Support (2pcs)
  • Page 10: Appliance Dimensions

    4. APPLIANCE DIMENSIONS Unit:mm Model i920e i1100e 1104 1134 i1500e 1504 1534 i2000e 2004 2034...
  • Page 11: Installation Instructions

    5. INSTALLATION INSTRUCTIONS 5.1 PREPARATION BEFORE INSTALLATION TOOLS REQUIRED A screwdriver, a spirit level and drill will be needed. LOCATE THE APPLIANCE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location, ensure that the general instructions are followed: ...
  • Page 12 CONNECT POWER CORD It is very important that the plug is tightly located into the socket in rear of appliance . It is essential that the retention clip provided is fixed in place using the ST4*8 screw,ensuring a secure connection to the appliance. It is recommended that you turn on and operate the appliance to check that all functions and that there are no issues with the appliance.
  • Page 13 CHOOSE ASPECT TYPE The appliance can be installed in 3 different arrangements. They are as follows:  Front view (only the front window is visible) When you unpack the appliance, you will notice that the side panels have been fixed on the appliance, which makes the appliance visible on only one front side.
  • Page 14 REMOVE FRONT GLASS PANEL  Remove the 2 screws securing each transit retaining clip on both side. Retain the screws for later use. Note: Clear plastic fixing brackets and black covers are provided for the refixing of the glass panel( see additional parts list on page 5 items H and I) ...
  • Page 15 5.2 CHOICE OF INSTALLATION METHOD The following is only given as a general guide because it can be installed in so many ways. Provided you ensure electric connections are safely made in accordance with the codes,various materials can be used for the framework and cladding. But consideration should be made to soften the internal surface of any cladding to minimise that amplification of noise.
  • Page 16 PANORAMIC VIEW Unit: mm Model i1100e i1500e i2000e i920e 1110 1510 2010 NOTE: Ensure a firm flat surface for positioning of the appliance and securely fix to avoid vibration and movement of the appliance. Ensure a minimum of 20mm clearance at the rear and the top of the appliance before cladding for air movement.
  • Page 17  Cladding the framework. Note:Hard surfaces can amplify sound. Consider adding some underlay or like the inside surface of the cladding .
  • Page 18  Arrange the fuel bed to your choice and reinstall the front glass panel back. Secure the glass fixing bracket(H) with two ST4*8 screws and cover i t with the black covers( I ) for a clean appearance. Note: Use the screws previously removed. middle hole ST4*8 WALL MOUNTED...
  • Page 19  Lift the appliance up and attach to the wall mounting bracket by locating the fingers on the wall bracket into the rectangular openings in the rear of the appliance.  Mark the hole position of the bottom mounting brackets, remove the appliance from the wall, drill holes on marked and insert wall plugs.
  • Page 20 PREPARE FOR TRIM FITTING ONLY AVAILABLE FOR i920e Note: A trim is not include and must be ordered separately. The i920e can be fitted with a trim, the following instruction below show how to prepare the appliance for the fitting of the trim using the extra part provided.
  • Page 21: Operating Instructions

    6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or malfunctions. If you suspect the appliance is damaged or malfunctions, call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reusing. WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air...
  • Page 22: Manual Control Panel

    6A. MANUAL CONTROL MY FLAME HEATER STAND BY WIFI MAIN SWITCH Each time a button is pressed on the appliance or on the remote control, an audible beep is emitted. To turn off this feature, keep pressing button MY FLAME for 3 seconds until you hear two beeps.
  • Page 23: Remote Control

    6b. REMOTE CONTROLS TEMPERATURE SENSOR 0.5h ROOM DISPLAY MY FLAME STANDBY FLAME CRACKLE CHOICE FUEL BED MOOD LIGHT HEATING TIMER Timer 0.5h Battery Power ROOM Actual Room Temperature Heating Period Temperature Set NOTE: The remote control handset must be left in the same room as the appliance because it houses the thermostat that regulates heat output.
  • Page 24 There are 3 preset slots allocated for the user to save personalised. Simply choose the flame colour and brightness level, the fuel bed colour and brightness level. Once you have selected your desired combination, press and hold the My flame button for 3 seconds until the LCD displays My Flame save to 7 Press ' or '...
  • Page 25 This happens because the room temperature is at or above the temperature set on the remote control. Timer Mode NOTE: This setting is only for operating in normal mode. It allows the appliance to go into standby after a set period of time. Press to cycle through the settings from 0.5 hours to 10 hours, and then OFF.
  • Page 26: App Control

    the appliance has been reset. Re-setting of the E.S. Control proceeds is as follows: 1. Switch off the appliance (Manual switch) and leave it of for approximately 10-15 minutes. 2. Remove any obstruction to the fan heater outlet or fan blades etc. Make sure that the power supply is disconnected with the plug socket outlet while doing this.
  • Page 27: Maintenance

    Operation instruction and Videos APP Download 7. MAINTENANCE WARNING: Before any maintenance or cleaning of the exterior of the appliance, the unit should be disconnected from the power supply remove supply plug from power socket or turn off and remove fuse from fused spur, wait until the appliance is cool.
  • Page 29 Slim i1100e Slim i1500e Slim i2000e Slim ITEM Part No. LED Model Part No. LED Model Part No. LED Model Part No. LED Model Heater Unit 9132 9132 9132 9132 Flame Effect LED Board 8616 RC07-193C 8653 RC07-191C 8652...
  • Page 30: Others

    9. OTHERS Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
  • Page 32 Charlton & Jenrick Ltd Unit D, Stafford Park 2, Telford, Shropshire, TF3 3AR Fax :+44 1952 200 480 Tel: +44 1952 200 444 www.charltonandjenrick.co.uk...
