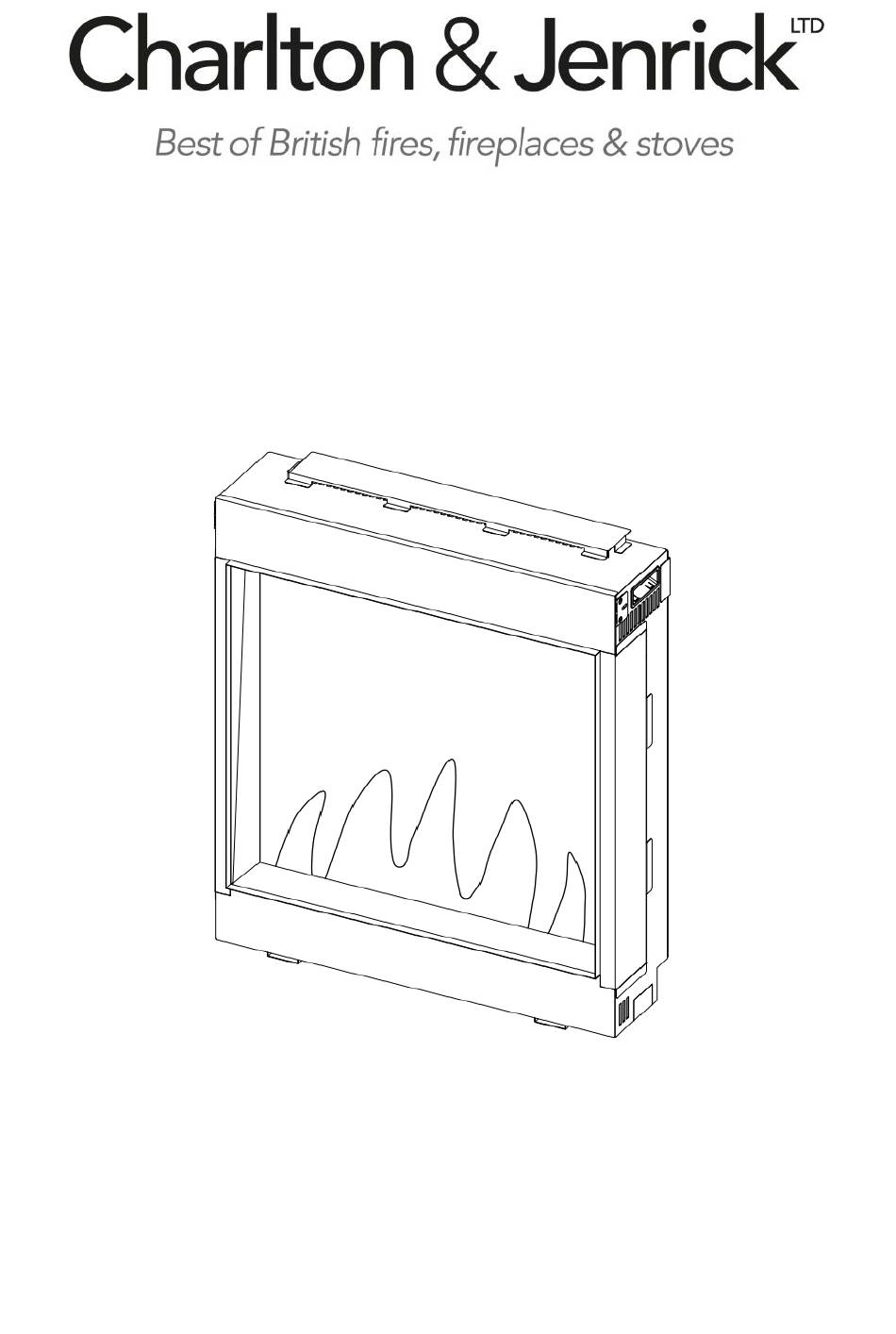

- Page 1 LED Electric Fire Model: Polaris 620 INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before installation or use and keep for future reference...
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ········································································ 2 2. Technical Specifications ················································································· 3 3. Parts and Hardware ······················································································· 4 4. Appliance Dimensions ···················································································· 6 5. Installation Instructions ················································································· 6 6. Operating Instructions ················································································· 15 6a. Manual Control Panel ············································································ 16 6b. Remote Controls ···················································································· 17 7. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. -
Page 4: Technical Specifications
1.16 Cleaning and user maintenance shall not be made by children without supervision. 1.17 Keep the power plug accessible after installation. 2. TECHNICAL SPECIFICATIONS Model No.: Polaris 620 Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 1800-2000W Power for flame effect: 30W Max. -
Page 5: Parts And Hardware
Other Control Options Room temperature control, with presence detection Room temperature control, with open window detection With distance control option With adaptive start control With working time limitation With black bulb sensor 3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. - Page 6 Black Glasses Vermiculate Logs (1 set) (1 set) (1 set) Instruction Manual AAA Battery Remote (1 pc) (2 pcs) (1 pc) Power Cord Simplified Instruction (1 pc) (1 pc)
-
Page 7: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm 5. INSTALLATION INSTRUCTIONS Tools Required A screwdriver a spirit level and drill will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. - Page 8 the appliance. Failure to do this may cause poor performance and loss of heat or make the appliance cut out. 5.3 The appliance should be connected to an earthed electrical outlet and it must be easily accessible to allow disconnection. The wires in the mains cable of this appliance are colored in accordance with the following code: Blue = Neutral.
- Page 9 he main electric connection is to the rear of the appliance is via a 5.5 T kettle plug, it is very important that the plug is fully located in the socket and the plastic retention clip that is provided is fitted and securely with the 1 screw provided.
- Page 10 5.6 If you intend to use mood lights, then you need to prepare the appliance before fixing into the feature. Prepare as follows: (Note: Mood lights are an optional extra.) 5.6a Remove the two ST4×10 screws and the metal plate on the right lower side. Pull out the cable inside, make the connections with the components, in accordance to the mood light instructions 5.6b Refit plate with two ST4×10 screws and connect the mood light strip,...
- Page 11 the top and bottom. Ensure electric connections are safely made in accordance to the codes. A multitude of materials may be used from the framework and cladding. All service work can be carried out via the front of the appliance, so no special access is required.
- Page 12 5.7a3 Position the appliance into the framework and secure it using fold out the brackets on the top and lower edge of this appliance. 5.7a4 Cover the framework by panels or plaster board, it can be used directly against the sides and front of the appliance.
- Page 13 5.7b Installation of hanging on the wall UNIT:mm...
- Page 14 5.7b1 Fit top vet cover so that it’s flush to the rear edge of the appliance 5.7b2 Measure from the lowest point of the appliance to the top edge of the wall bracket, it is currently fixed to the rear of the appliance. 5.7b3 Remove the wall bracket from the rear of the appliance.
- Page 15 5.8b After removing the glass front panel turn on the appliance on and you will see low down on the back panel some groups of red lights. 5.8c These are refections of LED ligths under the front edge of the fuel bed area. So using the glass ember components provided put them tightly agaist the front edge in a position that blocks the refection on the back panel.
-
Page 16: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. -
Page 17: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the upper of the appliance. 6a.2 Press “LIGHTS ON/OFF” to turn on or turn off both the flame and mood light at the same time. -
Page 18: 6B. Remote Controls
6b. REMOTE CONTROLS NOTE: This is thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 19 Flame Effect 6b.4 Press to enter the flame effect adjustment screen. 6b.5 Press the ‘←’ and ‘→’ button to select the 3 Kinds of flame effect. 6b.6 Press the ‘+’ and ‘-’ button to select the 5 brightness of flame effect and OFF settings. Fuel Bed Colour 6b.7 Press to enter the fuel bed adjustment...
- Page 20 screen. 6b.14 Press the ‘+’ and ‘-’ button to adjust the temperature from 17℃ to 25℃ by 2 intervals. 6b.15 Press button to turn on/off heat, ON、 OFF will show at the lower of the screen. NOTE: It is normal for the fan heater to stop running for periods of time. This happens because the room temperature is at or above the temperature set on the remote control.
- Page 21 Daily Timer Heating 6b.20 The following are preset heating periods, which can be altered if desired 06:00 until 08:30 17:00 until 22:00 6b.21 Hold the arrow symbol button for 6 seconds to enter The daily timer setting. Max 3 timed Heating periods per day. 6b.22 Hold the button for 6 seconds to enter The daily timer setting.
- Page 22 06:30 until 09:30 11:00 until 13:00 17:00 until 22:00 6b.27 Press until shows at the upper right corner of the screen, then enter the week timer heating mode. 6b.28 Hold button for 6 seconds to enter the week timer setting. •...
- Page 23 Adaptive Start Control 6b.34 According to room temperature and set temperature, the heater will automatically come on in time to heat the room to the set temperature at the set time. For example, if your timer is set to start at 18:00 and temperature is set to 23°C, the fire will come on at 17:30 to ensure the room is 23°C at 18:00.
-
Page 24: Maintenance
Control is in operation. The E.S. Control can only be re-set after the appliance has cooled down, and the appliance has been reset. Re-setting of the E.S. Control proceeds is as follows: 6b.40 Switch off the appliance (Manual On/Off switch) and leave it off for approximately 10-15 minutes. -
Page 25: Others
8. OTHERS Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well- being. - Page 26 Charlton & Jenrick Ltd Unit D, Stafford Park 2, Telford, Shropshire, TF3 3AR Tel: (0845) 5195 991 Fax (0845) 5195 992 www.charltonandjenrick.co.uk...
