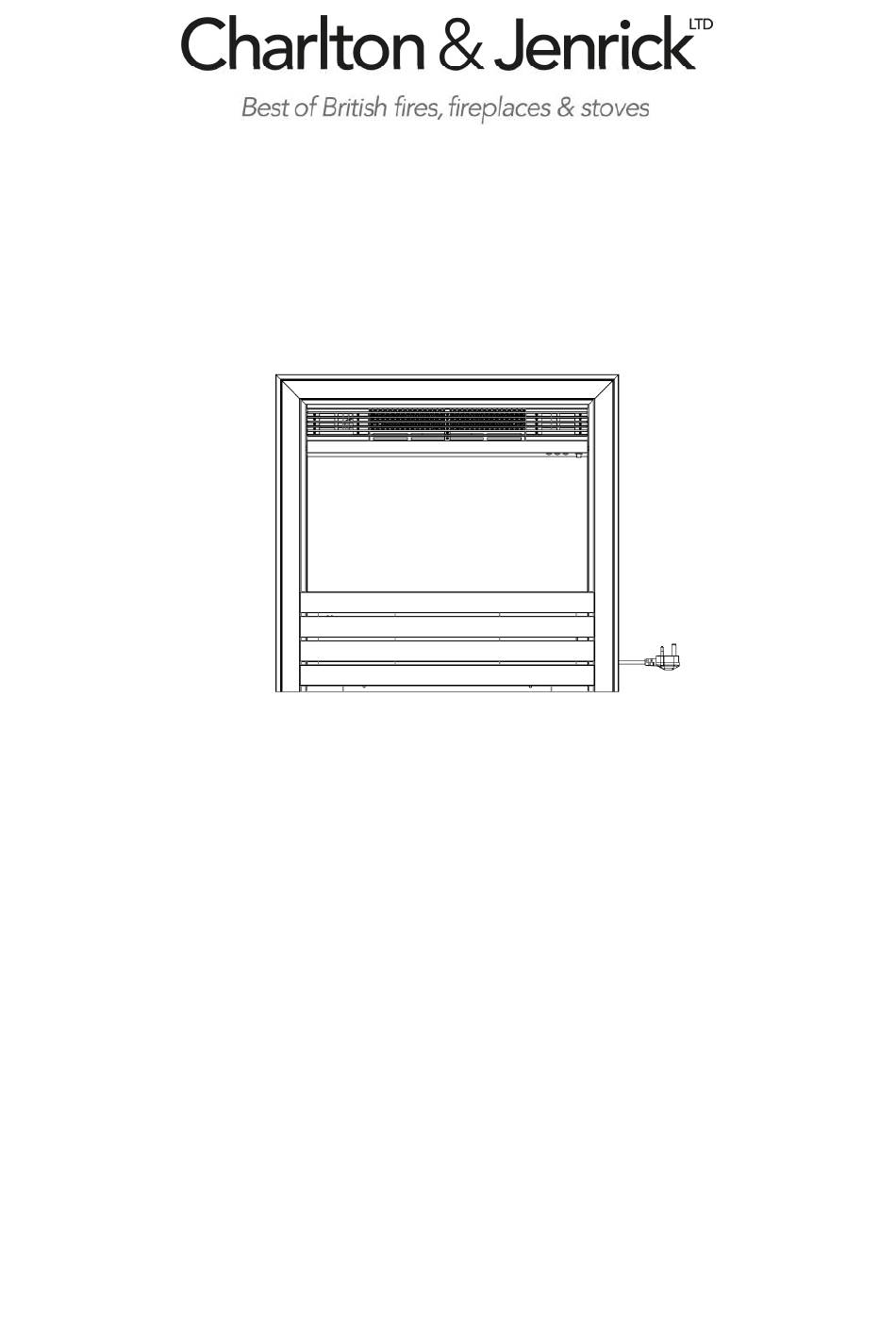

- Page 1 LED Electric Fire Model No. EF22NC INSTALLATION AND OPERATION INSTRUCTIONS Please read the instructions carefully before use and keep for future reference.
-
Page 2: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································1 2. Technical Specifications ··················································································3 3. Parts and Hardware ························································································4 4. Appliance Dimensions ·····················································································6 5. Installation Instructions ··················································································6 6. Operating Instructions ················································································· 12 6a. Manual Control Panel ············································································ 13 6b. Remote Controls ···················································································· 14 7. Maintenance ································································································ 20 8. -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 4 1.10 The meaning of figure in marking is “DO NOT COVER”. Warning: in order to avoid overheating, do not allow the appliance to be covered or let the air inlet/outlet become obstructed. Please note the warning symbol on the appliance (see above). 1.11 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet.
-
Page 5: Technical Specifications
1.20 Children of less than 3 years should be kept away unless continuously supervised. 1.21 Keep the power plug accessible after installation. 2. TECHNICAL SPECIFICATIONS Model No.: EF22NC Supply Voltage: AC 230-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 9.5W (LED 5.5W + Motor for flame 4W) Power for mood light: DC12V, Max. -
Page 6: Parts And Hardware
Type of heat output / room temperature control Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other Control Options Room temperature control, with presence detection... - Page 7 Logs Small Clear Faux Crystal Small Black Faux Crystal (1set) (1set) (1set) Large Clear Faux Crystal Medium Clear Faux Crystal Simplified Manual (1set) (1set) Remote AAA Battery Instruction Manual Brackets...
-
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm 5. INSTALLATION INSTRUCTIONS Tools Required A screw driver and a spirit level and drill will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. - Page 9 5.3 If installing in an existing fireplace and chimney always block the chimney with fibreglass insulation or similar to prevent it sucking air away through the appliance. Failure to do this may cause poor performance and loss of heat or make the appliance cut out.
- Page 10 5.7a Carefully mark out the 4 fixing screw positions as above. 5.7b Drill 4pcs Φ8 holes on the wall. Put the plastic wall plug into the hole. If the wall is solid wood, it is no needed to drill the holes on the wood and no need of the plastic wall plug.
- Page 11 Installation into a fireplace 22” opening/insert: Note for this installation way, the secured spacer needs to be removed from the engine box. 5.7g Remove the secured spacer by unfixing the 16pcs screws on both sides of the engine. 5.7g Follow the steps from 5.7a to 5.7e for the detailed installation under the 22’ opening dimension.
- Page 12 For the Trim TR2022-02: Put the trim onto the front of the appliance. Then arrange the fuel bed to your own choice using the fuel bed items provided on the plastic shelf. Mood Light Strip Connection (Note: Mood lights are an optional extra.) Remove the two ST4×10 screws and the metal plate on the right lower side.
- Page 13 Trim Lights Installation Follow the step 5.7g, use 8pcs ST4*8 screws to fix 4 brackets on the fire. Follow the steps from 5.7a to 5.7e for the detailed installation under the 22’ opening dimension. Put 4pcs magnets (with the size of 18×18×12.5) onto the front frame and place the frame with LED strip to the engine.
-
Page 14: Operating Instructions
6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. -
Page 15: 6A. Manual Control Panel
6a. MANUAL CONTROL PANEL NOTE: The manual button controls basic functions, not a full range of controls. Use the remote hand set to carry out all functions. 6a.1 The manual buttons are located at the upper right of the appliance. 6a.2 Press “LIGHTS ON/OFF”... -
Page 16: 6B. Remote Controls
6b. REMOTE CONTROLS NOTE: This is thermostatic remote control. The remote should be in the same room as fireplace and placed on a flat surface. It must be placed away from the fire so the hot air will not blow on it and affect thermostatic reading. The communication frequency between the fire and remote has already been set up. - Page 17 Flame Effect 6b.4 Press to enter the flame effect adjustment screen. 6b.5 Press the ‘←’ and ‘→’ bu on to select the 3 Kinds of flame effect. 6b.6 Press the ‘+’ and ‘-’ button to select the 5 brightness of flame effect and OFF settings. Fuel Bed Colour 6b.7 Press to enter the fuel bed adjustment...
- Page 18 temperature from 17℃ to 25℃ by 2 intervals. 6b.15 Press button to turn on/off heat, ON、 OFF will show at the lower of the screen. NOTE: It is normal for the fan heater to stop running for periods of time. This happens because the room temperature is at or above the temperature set on the remote control.
- Page 19 Temperature unit: ℃、℉ Daily Timer Heating 6b.20 The following are preset heating periods, which can be altered if desired 06:00 until 08:30 17:00 until 22:00 6b.21 Hold the arrow symbol button for 6 seconds to enter The daily timer setting. Max 3 timed Heating periods per day.
- Page 20 which can be altered if desired. From Monday to Friday 06:00 until 08:30 17:00 until 22:00 From Saturday to Sunday 06:30 until 09:30 11:00 until 13:00 17:00 until 22:00 6b.27 Press until shows at the upper right corner of the screen, then enter the week timer heating mode.
- Page 21 6b.31 Under the daily and week timer mode, press 6b.32 To turn the heater off when the heater is on during a preset heating period. 6b.33 To turn the heater on when the heater is off in between preset heating periods. Adaptive Start Control 6b.34 According to room temperature and set...
-
Page 22: Maintenance
Press the button on the remote, the programming is finished when you hear 1 long beep from the appliance. 6b.38 Resetting the code for remote control is necessary if the appliance operates wrongly or the remote control does not operate correctly. -
Page 23: Others
7.2 When the batteries are half full, the battery symbol will show 7.3 When the batteries are out of power and need replacing immediately, the battery symbol will show 7.4 Battery replacement is recommended after 1 year. The batteries are 1.5V alkaline AAA, batteries. - Page 24 Control PCB Remote Control Receiver Remote Control Transmitter Hardware: Frequency: ASK/OOK 433.92MHZ Hardware: RF290B V1.2 Maximum transmit power: 10mW RC01-043A02 Software: V1 Hardware:RF290A-TX-V1.3 Software:V2.4.1 Charlton & Jenrick Ltd Unit D, Stafford Park 2, Telford, Shropshire, TF3 3AR Tel: (0845) 5195 991 Fax (0845) 5195 992 www.charltonandjenrick.co.uk 3.EF.281.05.012 A/0...
