Charlton & Jenrick INFINITY 480 BF Owner's Manual

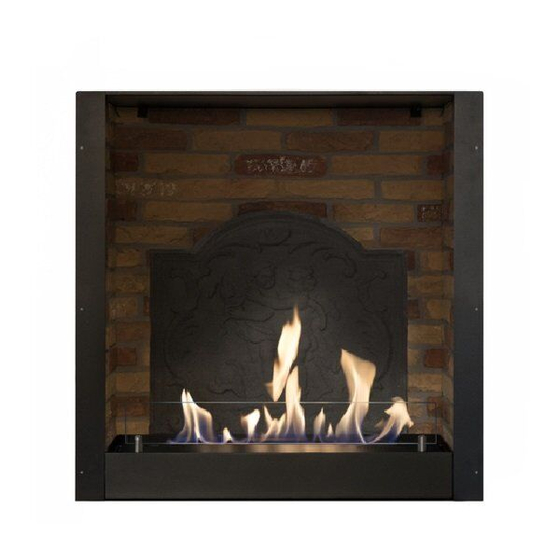

Natural gas fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

User, Maintenance, Service, and Installation
Keep this booklet for service log and future reference
This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts
warranty will only be valid if the annual service recommended in this manual has been
completed and appliance has been registered online.
Owner's Manual
INCLUDES
Instructions
480 BF
IMPORTANT
For use in Great Britain and Ireland.
Literature NO 6935 (ISS 4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INFINITY 480 BF and is the answer not in the manual?

Questions and answers

Related Manuals for Charlton & Jenrick INFINITY 480 BF

Summary of Contents for Charlton & Jenrick INFINITY 480 BF

  • Page 1 Owner’s Manual INCLUDES User, Maintenance, Service, and Installation Instructions 480 BF Keep this booklet for service log and future reference IMPORTANT This appliance is guaranteed for 12 months subject to conditions. The 5 year extended parts warranty will only be valid if the annual service recommended in this manual has been completed and appliance has been registered online.

  • Page 2: Table Of Contents

    Contents EXTENDED FIVE YEAR PARTS WARRANTY ....2 Benchmark Scheme ............. 3 SECTION ONE Important Information(Users EXTENDED Instructions) ..............5 FIVE YEAR PARTS WARRANTY Important Information Cont. (Users Instructions) ..6 SECTION TWO: Introduction(Users Instructions) ..7 In order to validate your extended 5 years parts SECTION THREE: Operation(Users Instructions) ..

  • Page 3: Benchmark Scheme

    Benchmark Scheme Charlton and Jenrick Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
  • Page 4 For future reference we suggest you record the following details here, and keep the receipt as proof of purchase. This information may be asked for when you contact the helpdesk. MODEL: INFINITY 480 BF Serial No. This information can be found on the label attached to the packaging and on the data badge, which is located on the base of the appliance behind the control cover.

  • Page 5: Section One Important Information(Users Instructions)

     As the INFINITY 480 BF is a room sealed appliance (i.e. air for the combustion process is taken from outside the room) no purpose built ventilation is required.

  • Page 6: Important Information Cont. (Users Instructions)

    ETCI rules for electrical installation, if appropriate.  Although the INFINITY 480 BF is fitted with a glass front which acts as a dress guard it is strongly recommended that a fireguard should be used for the protection of children, the elderly or infirm.

  • Page 7: Section Two: Introduction(Users Instructions)

    SECTION TWO: Introduction(Users Instructions)  The INFINITY 480 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in locations that do not have a conventional chimney. The appliance must be installed against an outside wall because the air to support combustion is taken from the outside and the products of combustion are expelled to the outside.
  • Page 8 e. The appliance can be switched off without using the hand set by removing the appliance batteries located below the air grill cover. When the batteries are removed there will be a delay (up 3minutes) after which, double bleeps may be heard and shortly after the appliance will extinguish.
  • Page 9 Battery level indication (Handset) When the batteries have to be changed in the handset, the related icon will appear. Setting the sleep mode To activate the sleep mode: With the fire switched on press the button. The sleep symbol will appear top right .
  • Page 10 TO REPLACE APPLIANCE BATTERIES (6 High Power Alkaline C 1.5V) A. Remove the decorative in fills LH and RH. B. Lift and remove the inlet cover located within the fireplace frame.( This is located at the bottom of the fire between the glass panel and fireplace frame. C.

  • Page 11: Section Four: Cleaning & Laying The Fuel Bed (Users Instructions)

    SECTION FOUR: Cleaning & Laying the fuel bed (Users Instructions) Warning:-Before you clean any part of the appliance ensure that the appliance is switched off and cool. CLEANING: BLACK PAINTED SURFACES  These surfaces should be dusted regularly and any marks removed with a soft cloth.
  • Page 12  Carefully lift the glass panel up out off the bottom location. Lay the glass panel down on a flat working surface on top of an old opened newspaper with the side to be cleaned uppermost. Follow the Instructions on the Hob Cleaner Bottle. On stubborn stains (where the appliance has been used for a long period without glass panel being cleaned), use a new Brillo Pad...

  • Page 13: Cleaning And Replacing Fuel Bed Shapes (Users Instructions)

    CLEANING AND REPLACING fuel bed shapes (Users Instructions) Important: - Refer to the ‘Health & Safety Notice located on page 3 of this booklet before cleaning or replacing any refractory material. Use only the shapes provided NO OTHER SHAPES SHOULD BE ADDED to the appliance The Fuel bed set consists of: ...
  • Page 14  Place the front log in position Please note:- The front log should be pushed back so the support fins are against the burner lip.  Place the two log shapes upon the shelf above the inlet baffle as shown. ...
  • Page 15  Position two log shapes either side as shown  Place a further two log shapes as shown.  Finally place the two remaining log shapes as shown. www.charltonandjenrick.co.uk LT6935 (ISS 2)

  • Page 16: Section Five Appliance Data (Installation Instructions)

    SECTION FIVE Appliance Data (Installation Instructions) Fire Box dimensions: Height: 680mm Width: 552mm Forward Projection: 42mm Weight: 35kg Flue Length N.G 100m (minimum) to 600mm (maximum) NG. Flue Length L.P.G No bends or joined flue pipes should be used in the flue system Pressure Test Point Location: Gas in let elbow Gas Connection:...

  • Page 17: Section Six Regulations And Warnings (Installation Instructions)

    SECTION SIX Regulations and Warnings (Installation Instructions)  This appliance must only be installed in Great Britain or Ireland.  The appliance is available in natural gas.  This appliance must be installed on a suitable outside wall.  No special ventilation bricks or vents are required into the room containing the appliance. ...

  • Page 18: Section Seven: Siting The Appliance (Installation Instructions)

    SECTION SEVEN: Siting the Appliance (Installation Instructions) GENERAL REQUIREMENTS  The flue and air duct length must be between 100mm to 600mm.  The fire is supplied with a standard pipe length of 600mm Flue length.  The flue and air duct must not have any bends. ...

  • Page 19: Section Eight: Preparing The Appliance For Installation (Installation Instructions)

    Siting the Appliance Continued (Installation Instructions) Please note with early cavity wall design prior to 1970. The minimum depth requirement may well be difficult to obtain. This could result in the need for the fire box to be spaced further from the internal surface of the plaster and to achieve this larger rebated surround maybe necessary.

  • Page 20: Section Nine: Install The Appliance (Installation Instructions)

    SECTION NINE: Install The Appliance (Installation Instructions) INSTALLING THE APPLIANCE INTO CAVITY WALL WITH A FIREPLACE Ensure it is a suitable outside wall constructed of non-combustible materials and that the flue position meets the requirements previously described in Section 7. ...
  • Page 21  Pass a tape measure through the core-drilled hole and record the distance from the spigots to the surface of the outside wall. Include the length of the spigots themselves in this measurement and increase both the recorded distances by 15mm (5/8”) each for the engagement allowance. ...

  • Page 22: Section Ten Fireplace Installation

    SECTION TEN Fireplace Installation FIREPLACE IDENTIFICATION FIREPLACE FIXING KIT Header This Guide deals with the correct use of our concealed fireplace fixing bracket kit, used and fixed correctly will ensure asafe and secure installation L/H Slip Top Slip Please ensure you have fully read and understand these instructions before you attempt the assembly and installatio othe fireplace We want to help you to carry out a quality installation so please also read our R/H Slip...
  • Page 23  Fix the “Leg Bracket” to the legs and to the ends of the header as shown below, also if a separated shelf is to be fitted fix the “Shelf Bracket” to the rear edge of the shelf, These brackets are fixed using the plastic plugs and screws provided, ensure the countersunk hole is used for the location of the screw see Fig 2.
  • Page 24  After laying the hearth in accordance with the Fireplace Installation Instructions, very carefully dry build the fireplace without the back panel in position, satisfy yourself that it is correctly positioned on the hearth and all the components line up square neatly against the wall. ...
  • Page 25 FIG 5 FIG 5 FIG 4 www.charltonandjenrick.co.uk LT 6935 Iss 4...
  • Page 26 INSTALLING THE APPLIANCE WITH A DUMMY CHIMNEY BREAST This method of installation allows the appliance to be wall mounted on to a suitable outside wall without the need to create an opening within the cavity. This can be used where the desire to create a feature chimneybreast is wanted within the room.
  • Page 27 Ensure it is a suitable outside wall constructed of non-combustible materials and that the flue position meets the requirements previously described in Section 7.  Mark a vertical line on the wall at the intended centre of the appliance and fireplace. ...
  • Page 28 Construction of Chimney breast http://www.ims-insulation.com/products/fireplace-enclosures/ Super Lux LT 6935 (ISS 4)

  • Page 29: Section Eleven: Connecting The Gas Supply (Installation Instructions)

    SECTION ELEVEN: CONNECTING THE GAS SUPPLY (Installation Instructions) TURN OFF ANY GAS APPLIANCES THAT ARE FED BY THE METER AND ISOLATE THE GAS SUPPLY BY TURNING OFF AT THE METER. (please ensure the batteries are connected prior to checking gas soundness) ...

  • Page 30: Section Twelve: Assemble The Appliance (Installation Instructions)

    damage the gasket, and ensure an adequate seal is made. SECTION TWELVE: Assemble the appliance (Installation Instructions)  Taking special care remove the ceramic liner set from within the packaging. The rear liner is in two pieces. Place the bottom rear liner upon the top edge to the air tray. Angle the upper rear line into the fire box assembly and place on top of the rear bottom line.

  • Page 31: Section Thirteen: Instruct And Advise The Customer (Installation Instructions)

     Load 6 off of the 1.5 v “C” batteries into the holder provided and a ttach to battery lead. Locate the loaded  Holder within the bracket at the bottom of the fireplace assembly.  Fit the Inlet cover at the bottom of the appliance between the glass panel and fireplace frame assembly.

  • Page 32: Section Fourteen: Maintenance Instructions (Maintenance Instructions)

    that a fireguard should be used for the protection of children, the elderly or infirm. Fireguards should conform to B. S. 6539 (1984) (Fireguards for use with solid fuel appliance).  Hand these instructions to the user. SECTION FOURTEEN: Maintenance Instructions (Maintenance Instructions) General ...
  • Page 33 Turn on the gas supply, check for gas soundness, operation and re-commission appliance. When ordering parts quote 'INFINITY 480 BF' and the serial number of the fire, which can be found on the data badge on bottom left hand side of fire. (Refer to cleaning instructions for trim removal.) www.charltonandjenrick.co.uk...

  • Page 34: Section Fifteen: Wiring Diagram (Maintenance Instructions)

    SECTION FIFTEEN: Wiring Diagram (maintenance instructions) Attach to the valve LT 6935 (ISS 4)

  • Page 35: Section Sixteen Short Spares List

    SECTION SIXTEEN Short Spares List Parts may vary/change due to development of products. A serial number should always be supplied when ordering parts to make sure you receive the correct part. Parts able to be ordered by customer Part Description Part Number Handset 5750...
  • Page 36 LT 6935 (ISS 4)
  • Page 37 www.charltonandjenrick.co.uk LT 6935 Iss 4...
  • Page 38 LT 6935 (ISS 4)

  • Page 39: Balanced Flue Gas Fire Commissioning Checklist

    BALANCED FLUE GAS FIRE COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the gas fire as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty.

  • Page 40: Service Record

    SERVICE RECORD It is essential that your gas fire is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 41 Infinity 480 BF Product A-0553 Serial QC (NG) ID Label A-0645 RC (L.P.G) Prefix Data Badge Burner Tray / Box Assembly Air Test Completed Embaglow (6844) NG ONLY Warning Label (1409) Grommet (1406) Glass Sub-Assembly Silicone Sealing Strip (4818) x 2...
