Setting the R3 Communication Module to Ethernet IP Configuration

STEP 7.

Use the R3 Communication Module Web

interface to reassign the existing IntelliRupter

fault interrupter control module IP address

setpoint to the R3 Communication Module

Ethernet 2 interface Static IP address setting.

See S&C Instruction Sheet 766-528, when using

communication module firmware version

3.0.00512 and later, and S&C Instruction Sheet

766-524 for earlier firmware versions. See

Figure 20.

STEP 8.

Use IntelliLink

IntelliRupter fault interrupter control module

IP address setpoint to 192.168.1.2. See S&C

Instruction Sheet 766-530 for information about

setting the IntelliRupter fault interrupter IP

address. This will be a private IP address. The

R3 Communication Module performs network-

address translation to hide this private

address.

S&C Instruction Sheet 766-526

Setup Software to change the

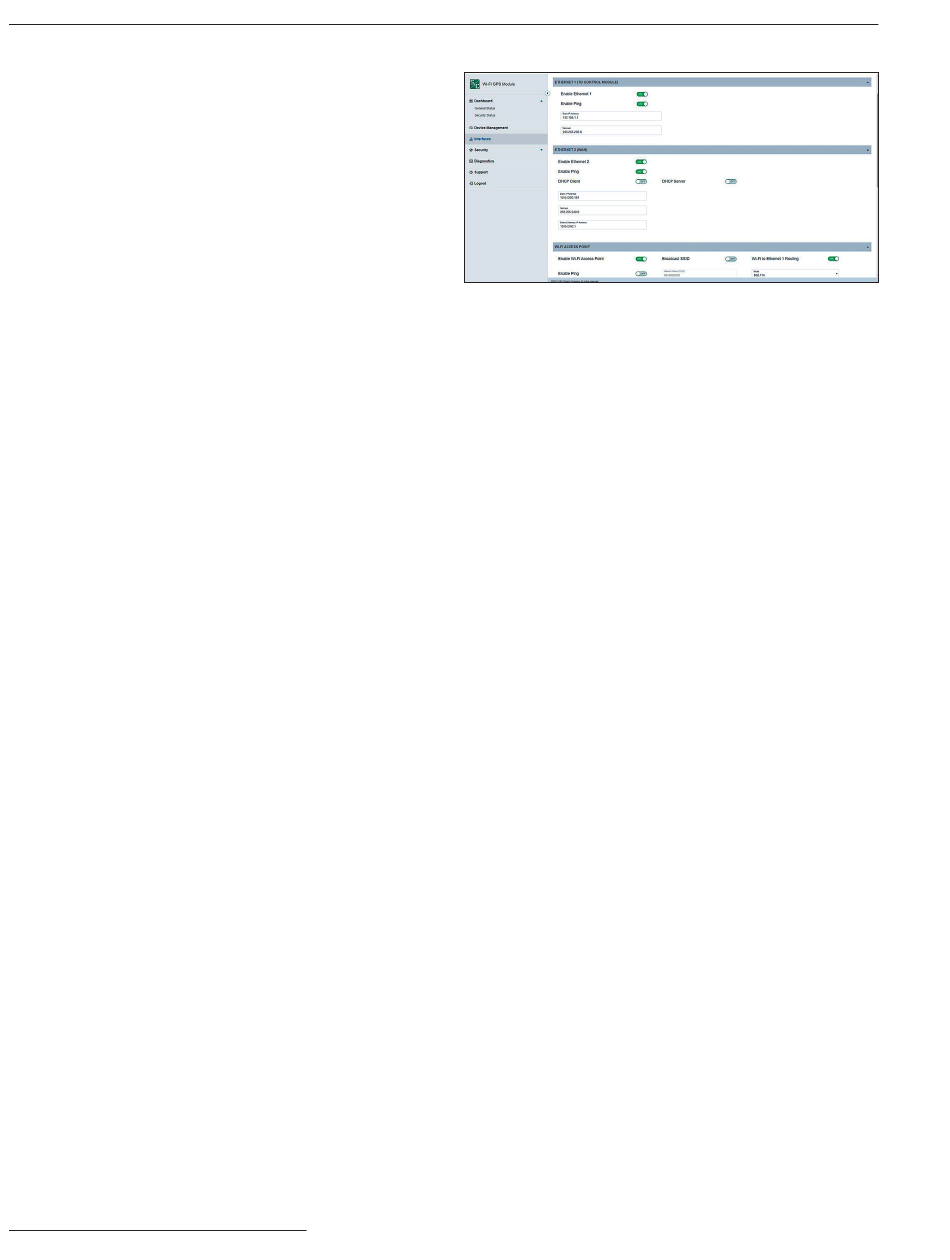

Figure 20. The firmware version 3.0.00512 Interfaces screen.
