Communication Module Retrofit
Installing the R3 Wi-Fi/GPS Module
Follow these steps to install the R3 Wi-Fi/GPS module.
STEP 1.
Fold the harness that was connected to the R0
circuit board as shown in Figure 10 and secure
it with the indicated cable ties.
STEP 2.
Plug the new harness into the existing harness
connector. See Figures 10 and 11.
Install the R3 Wi-Fi/GPS module mounting
STEP 3.
plate to the side of the radio tray with the six
screws provided. See Figures 12 and 13.
Install the ferrite choke around the gray cables
STEP 4.
and install the three cable ties at the ferrite. See
Figure 13.
Install two cable ties near the connector and
STEP 5.
two cable ties near the gray cable plugs. See
Figure 13.
10
S&C Instruction Sheet 766-526
Cable ties
New harness
connector

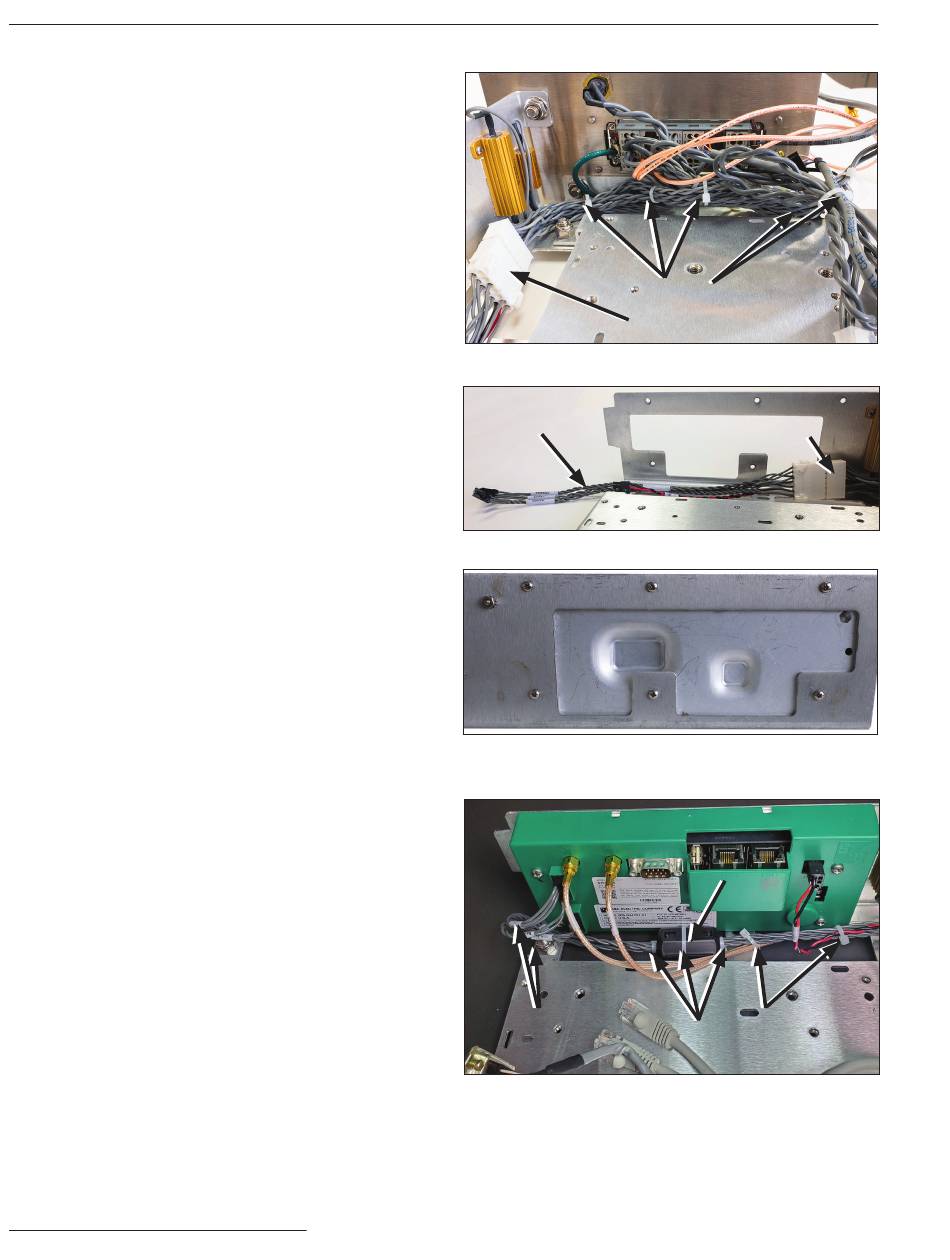

Figure 10. The rebundled cable harness and cable ties.
New harness
Figure 11. The new harness connected to the existing connector.
Figure 12. The six new screws that secure the R3 Wi-Fi/GPS
module mounting plate.
2 cable
ties
Figure 13. The ferrite choke and cable ties installed on the
new harness.
Existing connector
Ferrite
choke
2 cable
3 cable
ties
ties
