Atdec AWMS-2-BT75-FS Installation Manual page 4

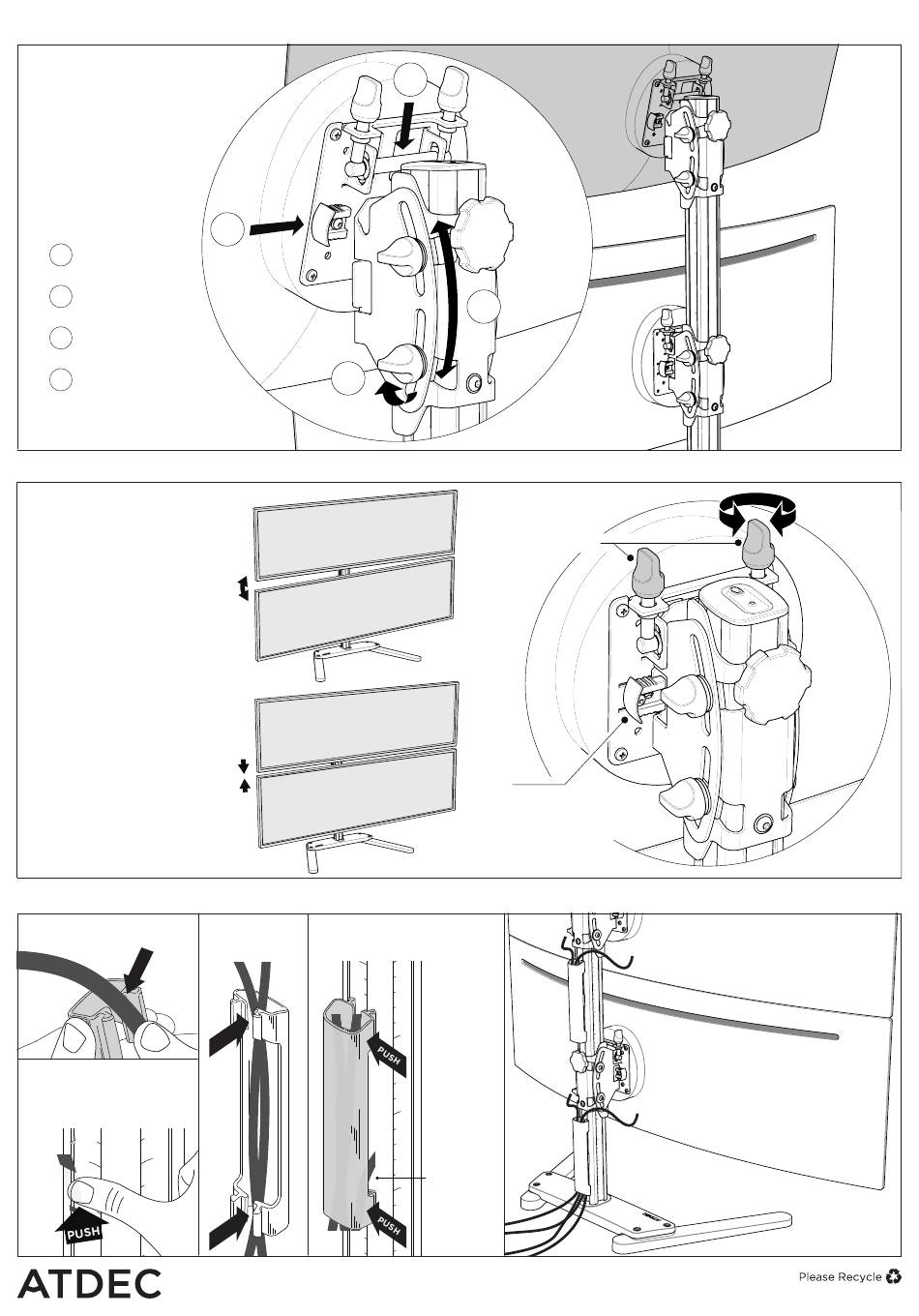

6. Mount Top Display
6.1 Check that distance
between Brackets is equal
to or greater than the
height of the Display.
Repeat Step 5 to secure
top Display and set tilt
angle.
i
Lower
ii
Close
iii
Adjust angle
iv
Set angle
7. Fine Adjustment
7.1 To correct horizontal angle
of display +/- 3 °:
Turn a single fine adjustment
knob to adjust angle of
screen.
Clockwise = Higher
Anti-clockwise = Lower
7.2 To close small gap between
displays +/-6mm (1/4"):
Turn both fine adjustment
knobs - alternating sides a few
rotations at a time.
Clockwise = Higher
Anti-clockwise = Lower
8. Manage Cables
8.1a Load cables into
cable clip.
8.1b Insert one side of the
cable clip into a channel
on the post, then push in
the other side.
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20220905
ii
LHS &
RHS
iv
TOP &
BOTTOM
8.2a Load 8.2b Clip the cable cover
cables into back onto rear post
cable cover. channels.
Load cables into
cable cover
i
iii
FINE ADJUSTMENT
KNOBS
NOTE
Ensure clips are in
CLOSED position after
fine adjustment complete
Cables can
exit from the
side of the
cable cover
AWMS-2-BT75-FS Page 4 of 4
