Insinger 45SA5 Features

6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
w w w . i n s i n g e r m a c h i n e . c o m

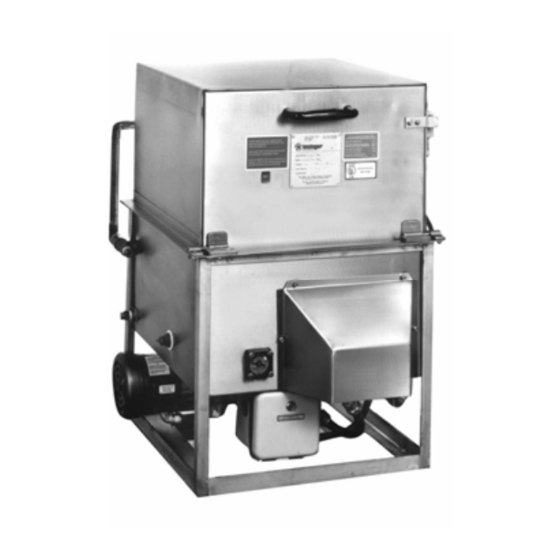

UNDERCOUNTER SCULLERY MACHINE
ELECTRIC or STEAM HEAT
45SA5-F1 (steam)
45SA5-F2 (electric with 9 KW booster)
45SA5-F2D (electric with 18 KW booster)
45SA5-F2NM (electric, non-magnetic, 11.4 kw booster)

DESIGN

The Insinger 45SA5 washes 45 racks per hour. It pumps 70 gal/min. of
wash water through stationary wash arms. The rinse cycle consists of
stationary lower rinse arm with 6 nozzles and an upper rinse arm with 4
final rinse nozzles.
The tank, hood and door are all 16 gauge stainless steel.

STANDARD FEATURES

•
Heat:
Electric— 1.5 KW electric
immersion heater and 9 or 18
KW electric booster with low
temp cut-off.
Steam— 1 stainless steel steam
coil and steam booster with low
temp cut-off
•
Capillary thermometers for wash
and rinse
•
Automatic tank fill
•
S/S frame
•
Pressure reduction valve and
line strainer
•
Manual tank fill
•
Low water protection
•
Stainless steel level gauges

OPTIONAL ACCESSORY EQUIPMENT

•
Non-magnetic pump & booster
service@insingermachine.com
•
Detergent and rinse additive
connection provisions
•
Plastic 16" x 16" racks
•
Bulk-head mounted NEMA 12
control panel
•
Simplified scrap screen design
•
Door safety switch
•
Standard frame TEFC motor
•
2 tech manuals
•
Authorized tech rep in each port
•
Exact footprint replacement
•
Complies with ASTM

specifications

Live Tech Service is Available
24 hours/day 7 days/week
800-344-4802
