Insinger ADMIRAL 44-4 Specifications

Patented CrossFire ® Wash
System creates a fan shaped
spray to clean ware thoroughly
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com

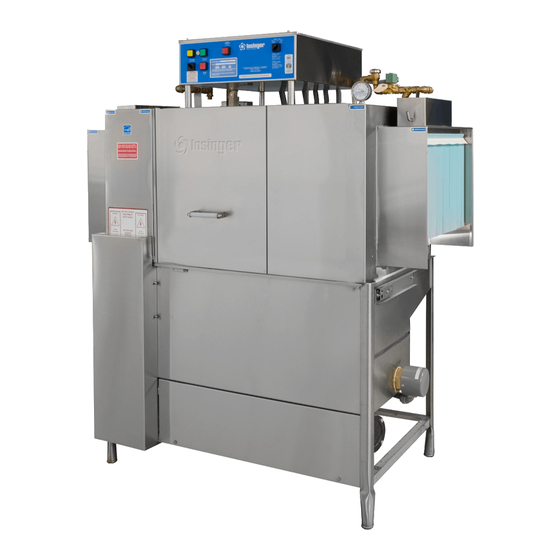

ADMIRAL 44-4
SINGLE TANK
CONVEYOR DISHWASHER
DESIGN
Automatic conveyor, rack type single tank dishwasher with
recirculating wash and fresh water final rinse. Capacity is 233-
20"X20" racks per hour, or 5,825 dishes per hour with a con-
veyor speed of 6.4 ft. per minute. Designed for left or right hand
conveyor travel, as specified.
STANDARD EQUIPMENT
Exclusive CrossFire Wash
®
●
System (patented)
Tank heat: 15 KW electric
●
immersion heater or
steam injector
Capillary thermometer for wash
●
In-line thermometer for final rinse
●
Vacuum breaker on all incoming
●
water lines
Manifold cleanout brush
●
Inspection door
●
S/S frame, legs and feet
●
S/S front enclosure panel
●
Automatic tank fill
●
SureFire Start-Up and
TM
●
Check-Out Service
Ventilation fan
●
connection provision
OPTIONAL ACCESSORY EQUIPMENT
Pressure reduction valve and
❏
line strainer
Stainless steel steam coil
❏
tank heat
Infrared tank heat—(50,000
❏
BTU, natural gas or propane)
Steam booster
❏
Electric booster
❏
Vent connectionsand
❏
adjustable damper controls
Security package
❏
Item #_____________
Low water protection
●
Single point electrical connection:
●
motor, controls, and heaters
Detergent connection provision
●
Elevated top mounted NEMA 12
●
control panel
Easily-cleaned crowned hood top
●
Simplified scrap screen design
●
Door safety switch
●
Standard frame drip proof motors
●
Energy saver
●
Override switch for de-liming
●
Detergent saver
●
S/S vestibules
●
End caps/pipe plugs secured to
●
prevent loss
Color-coded curtains
●
Timing belt conveyor drive
●
Totally enclosed motor
❏
Rack limit switch
❏
Chemical sanitizer injector package
❏
for low temperature operations
Insulated hood and door
❏
Power loader
❏
Power unloader
❏
Door activated drain closer
❏
Plastic 20" x 20" racks
❏
(plates or silver)
