8.5 Testing of Bluetooth communication

Test is made with a Blackberry PDA , which must support Bluetooth communication and with a
switched on printer DPP-350.
REMARK:
Set switch 4 (SW4), so that the printer is in protocol mode (only for PDA Blackberry). Make self test
to make sure that the printer is set in protocol mode (fig. 78)
− − − − −
Set in OPTION,the Bluetooth communication of the PDA.
− − − − −
Select ADD DEVICE, then the device should be discovered (as device DATECS DPP-350) from the
PDA,password that must be input is "0000". Printer is added in the list of discovered devices that
support Bluetooth .
− − − − −
Start program Blackberry JavaSDKTest and from its menu select e.g. Print Long Test,then the Long
self test should be printed.
If this is done this means that the Bluetooth communication of printer works OK.

8.6 testing of mag-stripe reader module

Test is done with a Blackberry PDA device, which is connected to a switched on printer DPP-350 via
mini USB USB cable (fig.80) connected to the mini USB port of printer .
− − − − −
Start program Blackberry JavaSDKTest and from its menu select Read Card Tracks.
− − − − −

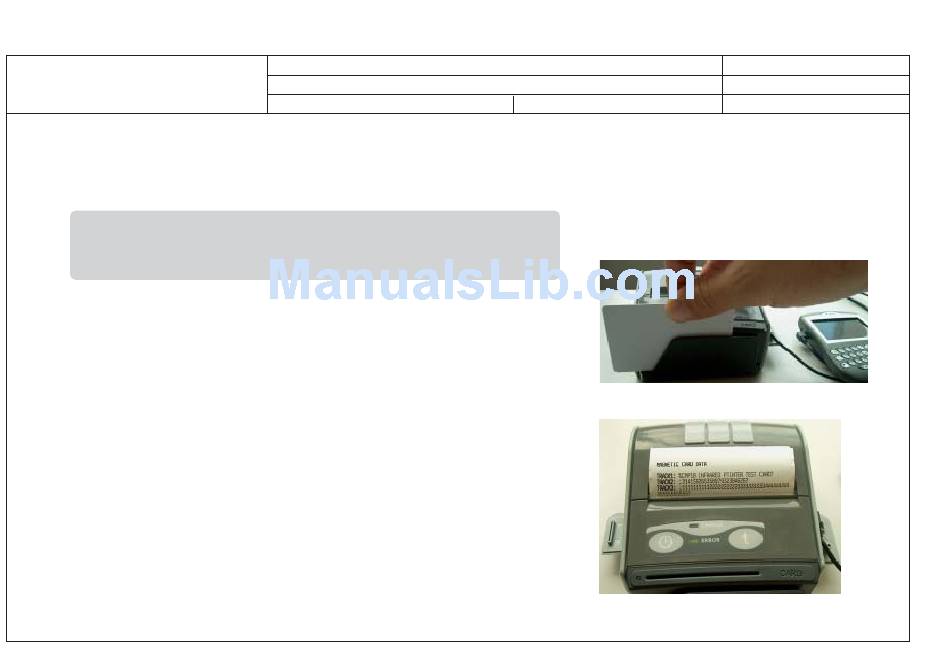

Lightguide of Card Reader Module starts to blink in green, then swipe a 3-track magnetic card in the
direction shown on fig.81 .
− − − − −
Blackberry's display should show the data that is read from the magnetic card tracks.
(Track1,Track2,Track3).
− − − − −
Select yes from program's menu.
− − − − −
The printer will print the result of themagnetic card tracks read (fig. 82)
If all the above is done as described this means that the magnetic card reader works OK.
EN ISO 9001:2000
WORK INSTRUCTIONS
model: DPP-350 edition: 02
Fig.81
Fig.82
identif.No: WI 07.01.52
Version: 2
Page. 27 from . 30
