1 DATECS
Option (mounting of Bluetooth PCB)
REMARK:
Bluetooth PCB is mounted before the fixture of Main PCB and USB
PCB!

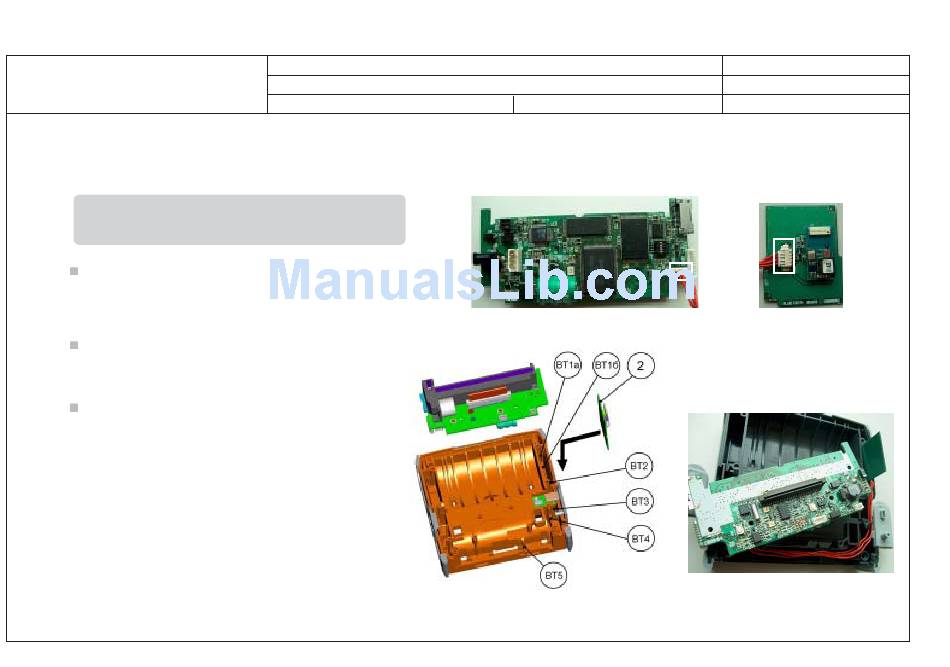

First connect the cable between Bluetooth PCB and Main PCB
(fig.32) respectively in CN7 of Main PCB (fig.58a) and connector CN2
on Bluetooth PCB (fig.58b).
The cables are stuck consecutively through the slots named
ÂÒ2, ÂÒ3, ÂÒ4 and ÂÒ5. - (fig.59a and fig. 59b).
Bluetooth PCB (pos.2) is installed in the right side of bottom cover
in the slot shown on picture (fig.59a) between (pos.BT1à) and
(pos.ÂÒ1á) (fig.59b).
EN ISO 9001:2000
WORK INSTRUCTIONS
model: DPP-350 edition: 02
Fig. 58a
Fig. 59a
identif.No: WI 07.01.52
Version: 2
Page. 20 from . 30
Fig. 58b
Fig. 59b
