Infinite Peripherals DPP-350 Work Instructions page 17

1 DATECS identif.No: WI 07.01.52
EN ISO 9001:2000
WORK INSTRUCTIONS Version: 2
model: DPP-350 edition: 02
Page. 17 from . 30

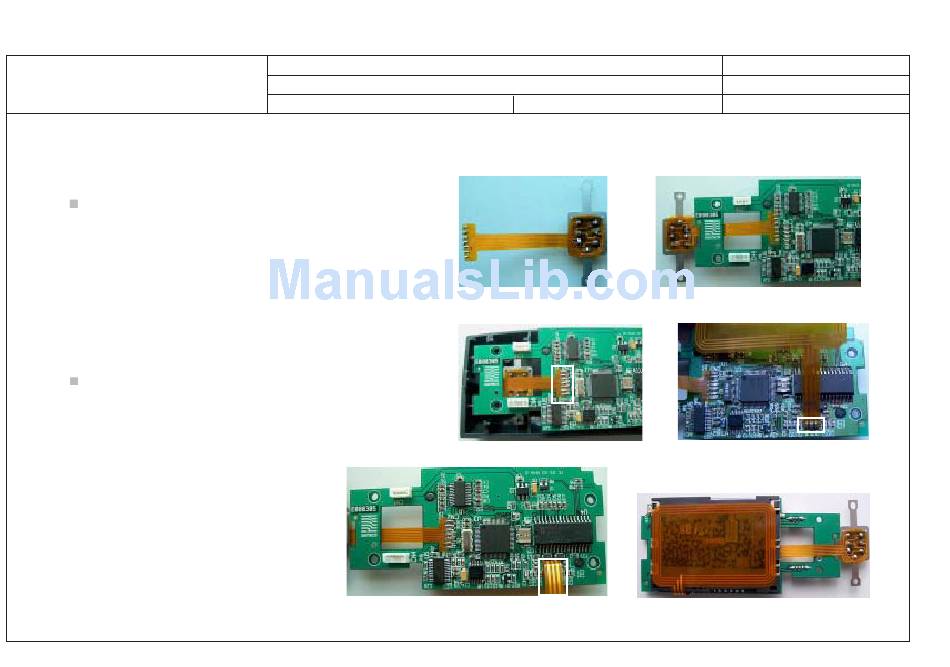

Option (placing Card Reader PCB)
Solder MCR cable (fig.6) to MCR head (fig.7) in the direction and
way shown in fig.46 , pass through Card Reader PCB (fig.47)and solder
PCB (fig.48).
Fig.46 Fig.47
Solder Mifare antenna (fig.5) at the place shown (fig.49). Fold as
shown on picture on fig. 50 and stick with thin double-side tape to th
e smart card reader on back side (fig.51) .
Fig.48 Fig.49
Fig.50
Fig.51
