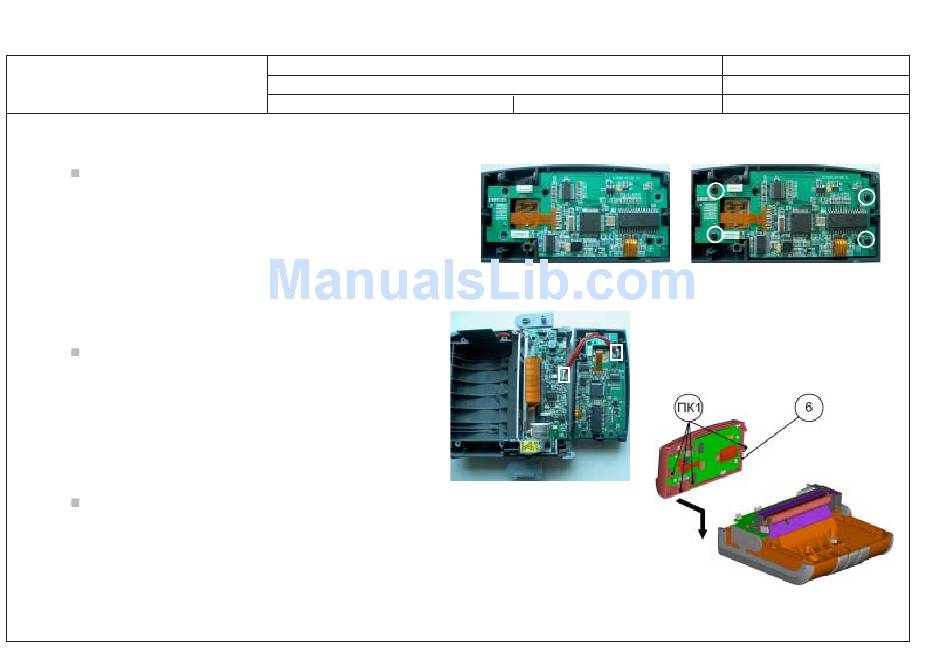

Mount the prepared Card Reader PCB (fig.55a) and fix with the
help of 4 screws 2 õ 6 mm to Front Cover (fig.55b).
Fig.55a Fig.55b
Place connection cable between Main PCB and Card Reader PCB
(fig.2) respectively to connector CN8 and connector CN1 (fig.56)
Fig.56
Card Reader Module (pos.6) is attached to bottom cover with hooks
(pos. ÏÊ1) (fig.57)
Fig.57
